Description

Price

1

SHAFT, COUNTER (NT:11)

24120-05850

Unavailable

2

GEAR, 2ND DRIVE (NT:14)

24221-05301

Unavailable

3

GEAR, 3RD & 4TH DRIVEN

24231-05203

Unavailable

4

GEAR, 5TH DRIVE (NT:26)

24251-05212

Unavailable

5

CIRCLIP

09380-20009

$2.20

6

BEARING (20X47X14)

09262-20069

$23.28

7

BEARING

08123-60027

$23.62

8

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

9

SCREW (6X12)

09126-06011

$2.03

10

SHAFT, DRIVE

24130-44A00

Unavailable

11

GEAR, 1ST DRIVEN (NT:33)

24311-05202

Unavailable

12

THRUST WASHER

08211-15251

$1.67

13

BEARING (15X19X7.8)

09263-15023

Unavailable

14

GEAR, 2ND DRIVEN (NT:26)

24320-05202

Unavailable

15

CIRCLIP

09380-20009

$2.20

16

GEAR, 3RD DRIVEN (NT:26)

24331-05203

Unavailable

17

LOCK WASHER

09167-20034

Unavailable

18

GEAR, 4TH DRIVEN (NT:23)

24341-05203

Unavailable

19

GEAR, 5TH DRIVEN (NT:24)

24351-05211

Unavailable

20

WASHER, OIL SEALING

24359-42A00

$4.35

21

WHEEL, SLIDING DOG

24421-05300

Unavailable

22

BEARING (15X36X12)

09264-15001

Unavailable

23

BEARING (22X50X14)

09262-22018

$25.60

24

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

25

BOLT

01500-0610A

$2.23

26

OIL SEAL (30X40X6)

09283-30053

$9.24

27

RETAINER, DRIVE SHAFT OIL SEA

24751-42A10

$4.52

28

SCREW (6X12)

09126-06011

$2.03

29

CIRCLIP

08331-3115A

$2.25

30

GEAR, KICK STARTER IDLE

26260-05201

Unavailable

30

GEAR, KICK STARTER IDLE

26260-05201

Unavailable

31

SHIM (15X20X1)

09181-15111

$2.97

32

SPROCKET, ENGINE (NT:14)

27511-44A20

$35.03

33

SPACER, ENGINE SPROCKET

27531-42A00

$23.07

34

O RING (D:2.5,ID:21)

09280-21008

$1.91

35

BOLT (8X12)

01550-0812A

$2.32

36

WASHER

08211-08283

$2.81

37

CHAIN ASSY,DRIV | L:134->122 This part replaces 27600-46911-134.

27600-46912-134

$70.38

38

.JOINT SET, CHAIN This part replaces 27620-46911.

27620-46912

$5.55

39

PLATE, FR CHAIN GUIDE

27640-08G00

$16.04

40

CAP, NEUTRAL SW HOLE

11450-08G00

Unavailable

41

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

42

SCREW

02112-0508A

$1.49

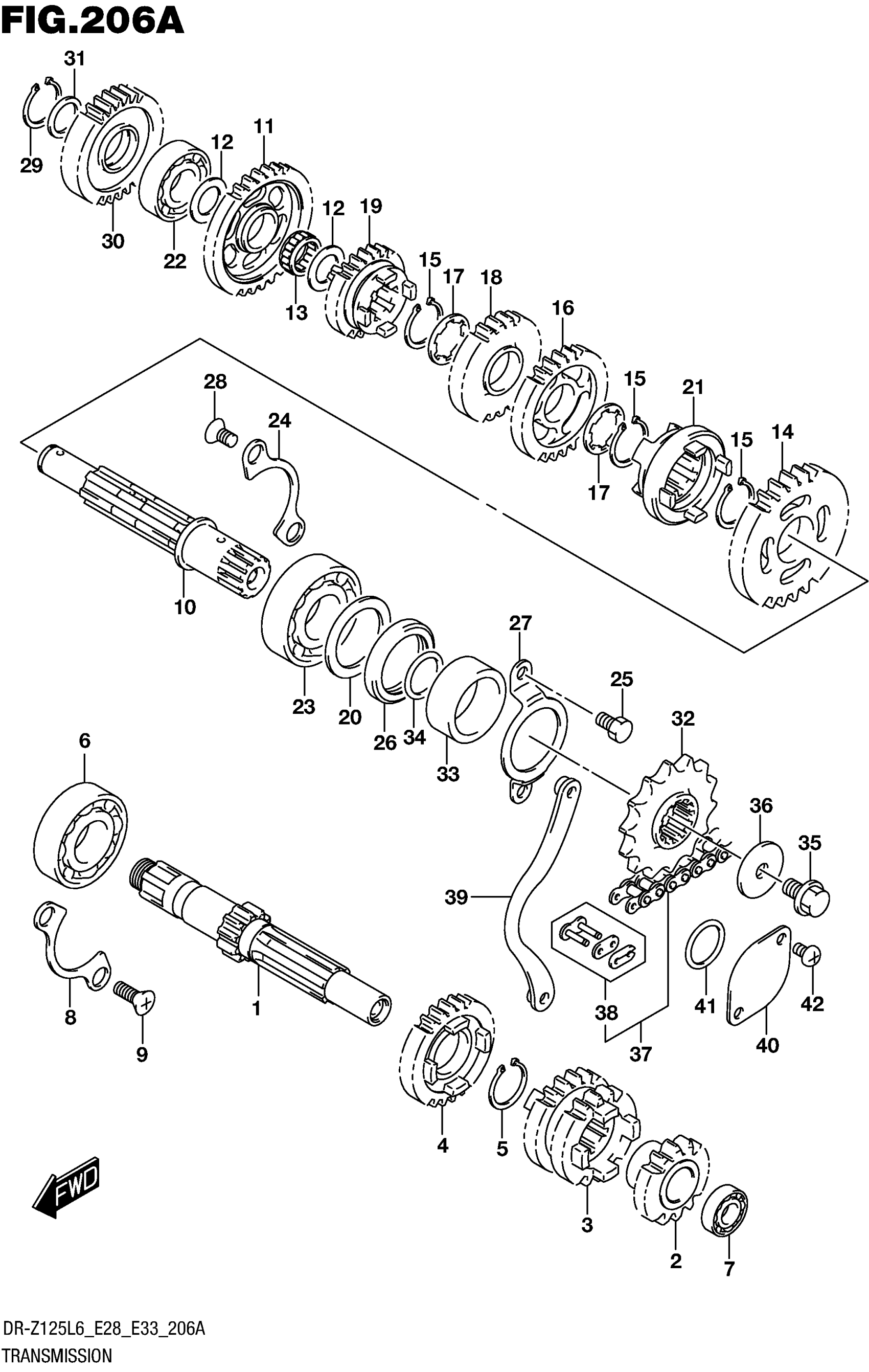

Suzuki DR-Z125L6 (2016) TRANSMISSION (DR-Z125L6 E28) Diagram

SHAFT, COUNTER (NT:11)

GEAR, 2ND DRIVE (NT:14)

GEAR, 3RD & 4TH DRIVEN

GEAR, 5TH DRIVE (NT:26)

CIRCLIP

BEARING (20X47X14)

BEARING

RETAINER, DRIVE SHAFT BEARING

SCREW (6X12)

SHAFT, DRIVE

GEAR, 1ST DRIVEN (NT:33)

THRUST WASHER

BEARING (15X19X7.8)

GEAR, 2ND DRIVEN (NT:26)

CIRCLIP

GEAR, 3RD DRIVEN (NT:26)

LOCK WASHER

GEAR, 4TH DRIVEN (NT:23)

GEAR, 5TH DRIVEN (NT:24)

WASHER, OIL SEALING

WHEEL, SLIDING DOG

BEARING (15X36X12)

BEARING (22X50X14)

RETAINER, DRIVE SHAFT BEARING

BOLT

OIL SEAL (30X40X6)

RETAINER, DRIVE SHAFT OIL SEA

SCREW (6X12)

CIRCLIP

GEAR, KICK STARTER IDLE

GEAR, KICK STARTER IDLE

SHIM (15X20X1)

SPROCKET, ENGINE (NT:14)

SPACER, ENGINE SPROCKET

O RING (D:2.5,ID:21)

BOLT (8X12)

WASHER

CHAIN ASSY,DRIV | L:134->122 This part replaces 27600-46911-134.

.JOINT SET, CHAIN This part replaces 27620-46911.

PLATE, FR CHAIN GUIDE

CAP, NEUTRAL SW HOLE

.O-RING (D:2.4,ID:21.8)

SCREW
