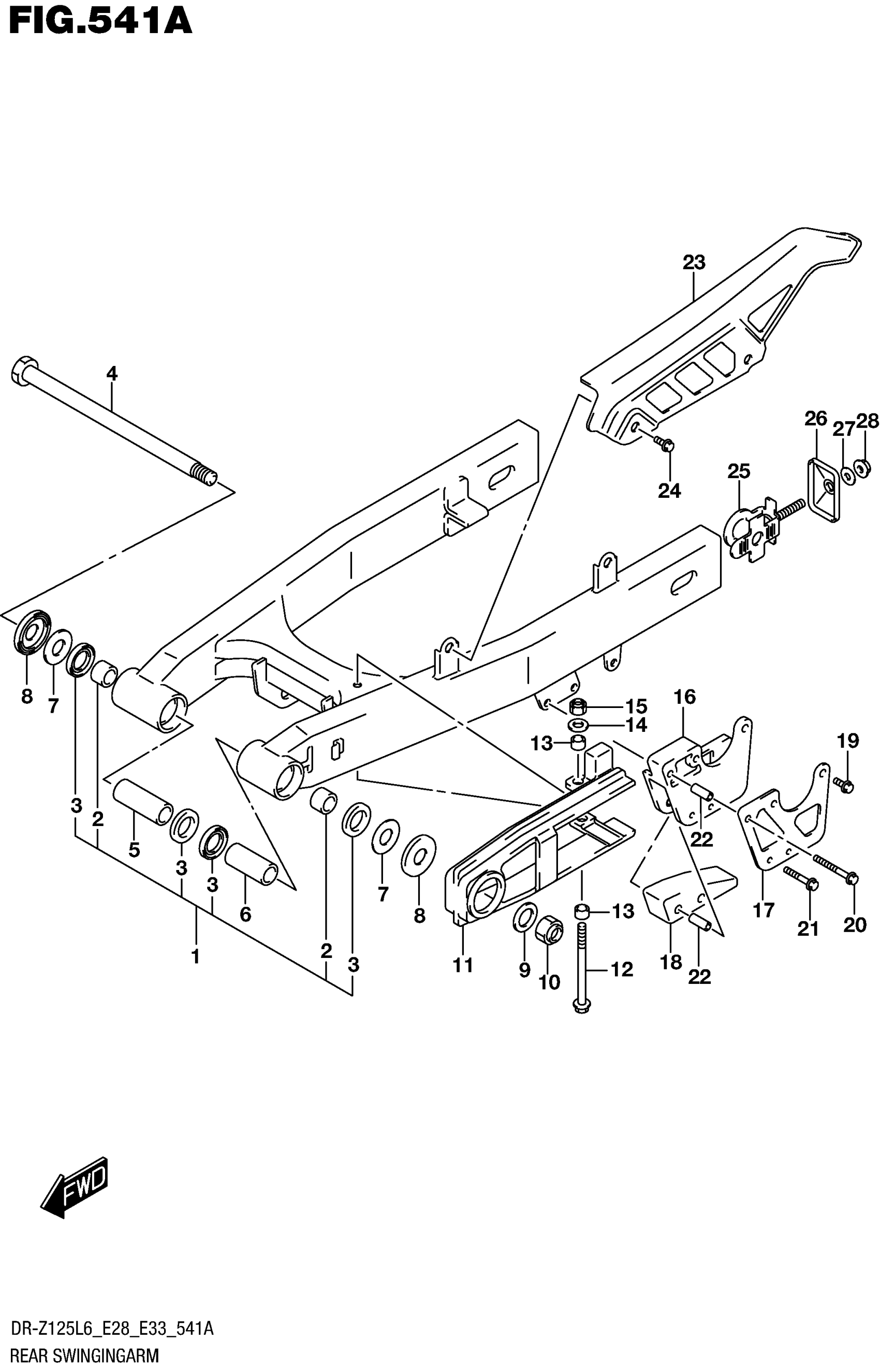

Suzuki DR-Z125L6 (2016) REAR SWINGINGARM (DR-Z125L6 E28) Diagram

#

Description
Price

1

SWGARM ASSY, REAR (SILVER)

61000-08G10-13L

$587.85

1

SWGARM ASSY, REAR (SILVER)

61000-08G10-13L

$587.85

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$15.33

3

.OIL SEAL (20X27X5)

09283-20031

$4.73

4

SHAFT, RR SWINGINGARM PIVOT

61211-44A11

$41.88

5

SPACER, RR SWGARM PIVOT RH

61251-08G00

$29.88

6

SPACER, RR SWGARM PVT

61251-42A00

$26.03

7

WASHER

08211-14321

$4.18

8

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.59

9

WASHER (14.5X24X2.3)

09160-14057

$3.42

10

NUT

09159-14019

$10.63

11

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-08G00.

61273-08G01

$26.45

12

BOLT

01560-0665B

$4.03

13

SPACER (6.5X9X6.5)

09180-06257

$2.56

14

WASHER

08322-0106B

$2.24

15

NUT

08319-2106B

$2.31

16

GUIDE, CHAIN

61343-02B40

$47.05

17

PLATE, GUIDE CHAIN OUTER

61342-02B40

$38.30

18

DEFENSE, CHAIN GUIDE This part replaces 61348-08G00.

61348-08G01

$17.42

19

BOLT

01547-0616A

$2.01

20

BOLT

01547-0630A

$2.31

21

BOLT

01547-0640A

$2.31

22

SPACER (6.5X10X23.5)

09180-06333

$3.08

23

CASE, CHAIN

61311-01A03

$59.68

24

BOLT (6X10)

09116-06096

$2.28

25

ADJUSTER, CHAIN

61410-08G00

$24.67

26

PLATE, CHAIN ADJUSTER

61421-38200

$4.90

27

WASHER (12.5X26X2.3)

09160-12085

$2.61

28

NUT

08319-3108A

$2.31
