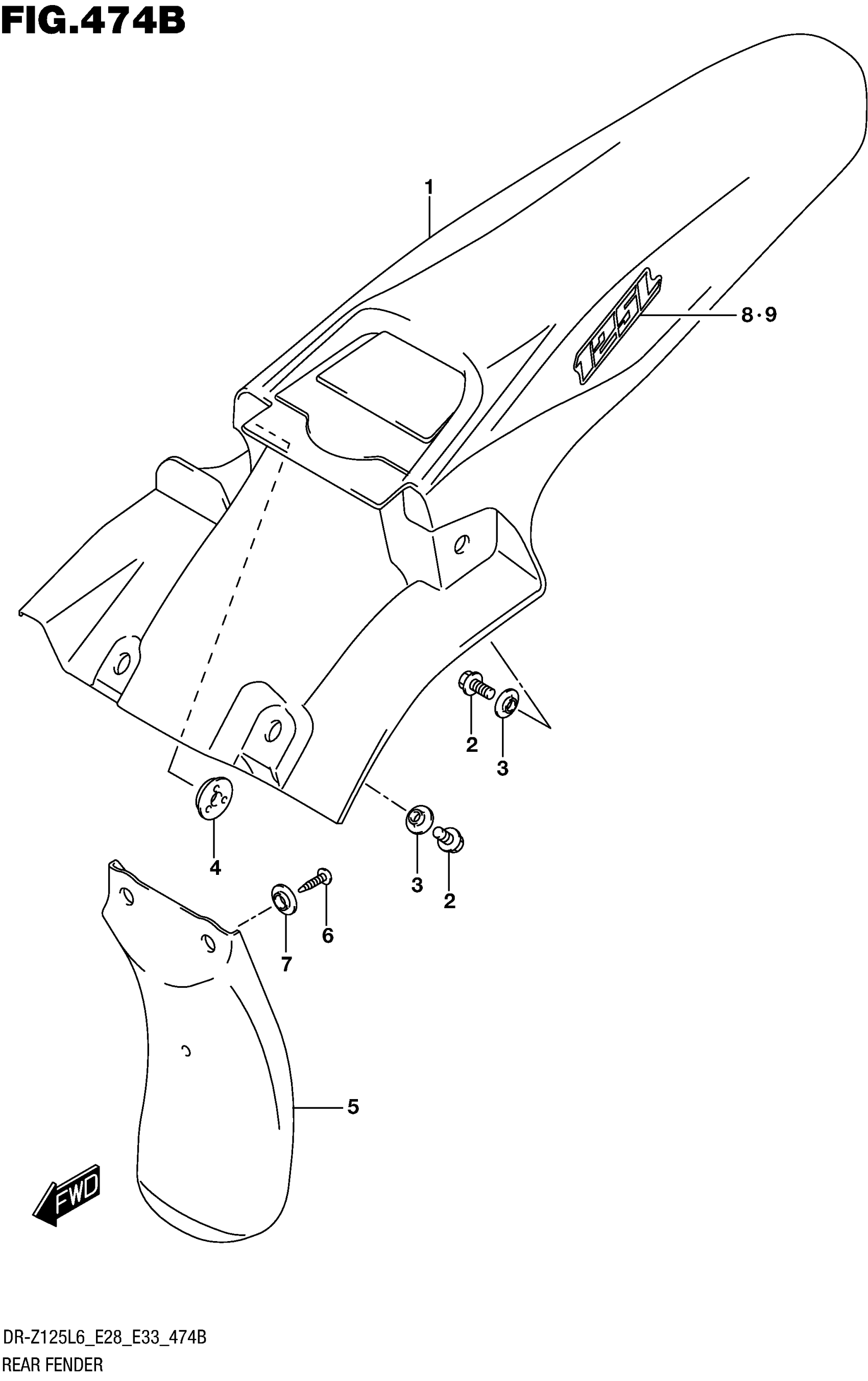

Suzuki DR-Z125L6 (2016) REAR FENDER (DR-Z125LL6 E28) Diagram

#

Description
Price

1

FENDER, REAR (BLACK)

63113-08G60-019

Unavailable

2

BOLT (6X16)

09103-06200

$3.17

3

WASHER

09169-06076

$2.88

4

WASHER

09169-08045

$2.14

5

MUDGUARD, RR FENDER FR

63411-29F00

$27.42

6

SCREW (5X16)

09132-05053

$2.26

7

WASHER This part replaces 09169-06045.

09169-06055

$2.02

8

EMBLEM RH (BLACK/WHITE)

68171-08G70-BJB

Unavailable

9

EMBLEM LH (BLACK/WHITE)

68172-08G70-BJB

Unavailable
