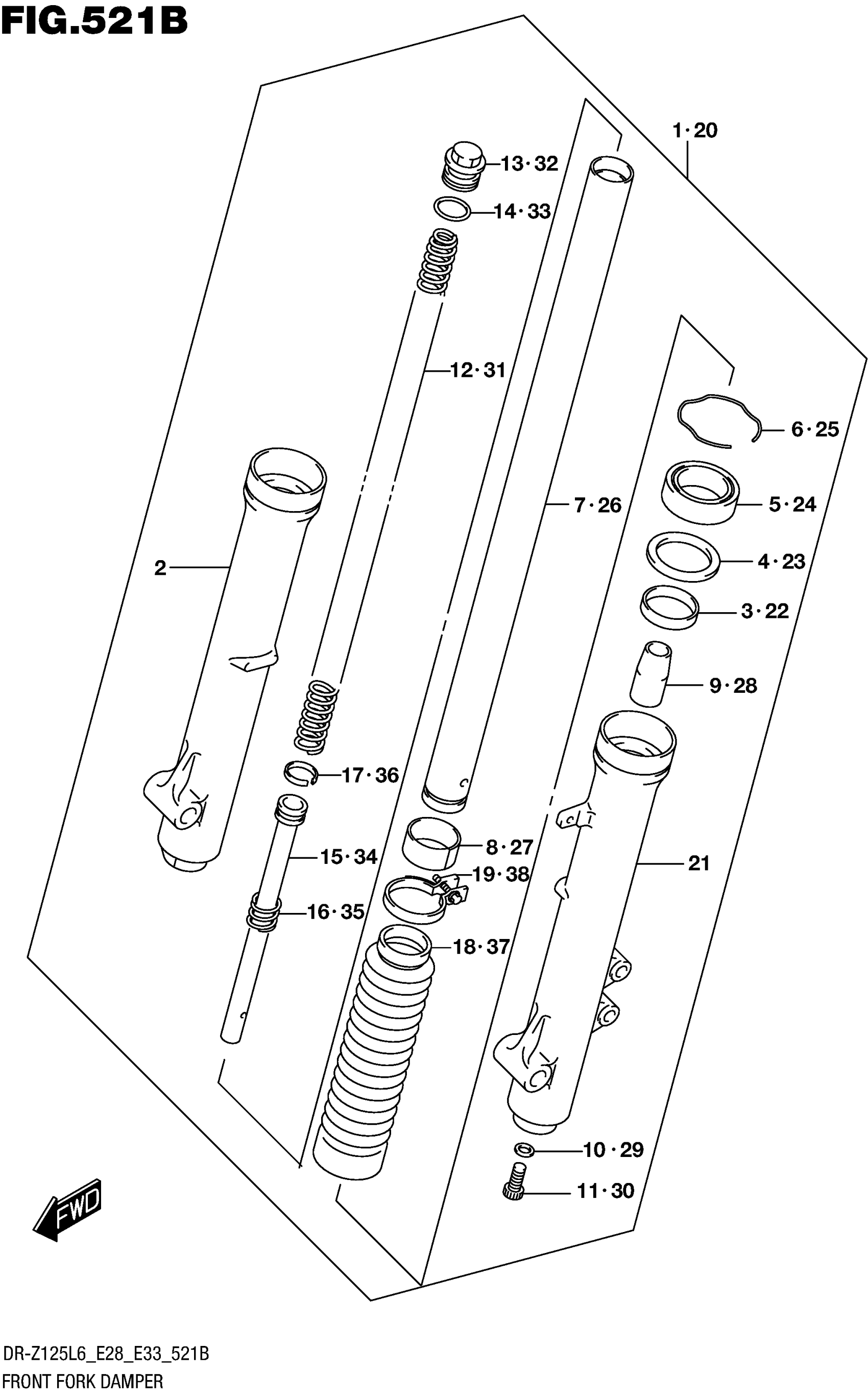

Suzuki DR-Z125L6 (2016) FRONT FORK DAMPER (DR-Z125LL6 E28) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-08G60

Unavailable

2

.TUBE, OUTER RH

51130-08G10

Unavailable

3

.BUSH, GUIDE

51152-43EC0

$14.23

4

.SPACER, SEAL

51168-43EC0

$7.07

5

.OIL SEAL

51153-48420

$13.30

6

.OIL SEAL

51156-48730

$5.32

7

.TUBE, INNER

51110-08G00

Unavailable

8

BUSH,SLIDE This part replaces 51121-08G00.

51121-08G10

$17.69

9

.PIECE, OIL LOCK

51195-48000

Unavailable

10

.GASKET

51148-36011

$3.56

11

.BOLT (8X27)

51147-48130

$4.34

12

.SPRING, FR

51171-08G00

Unavailable

13

.BOLT

51351-48000

Unavailable

14

.O RING

51181-25030

$4.52

15

.CYLINDER

51146-08G00

Unavailable

16

.SPRING, REBOUND

51177-08G00

Unavailable

17

.RING

51196-48000

$8.42

18

.BOOT

51571-08G40

$52.73

19

.BAND

51575-08G00

$8.42

20

DAMPER ASSY, FRONT FORK LH

51104-08G60

Unavailable

21

.TUBE, OUTER LH

51140-08G10

Unavailable

22

.BUSH, GUIDE

51152-43EC0

$14.23

23

.SPACER, SEAL

51168-43EC0

$7.07

24

.OIL SEAL

51153-48420

$13.30

25

.OIL SEAL

51156-48730

$5.32

26

.TUBE, INNER

51110-08G00

Unavailable

27

BUSH,SLIDE This part replaces 51121-08G00.

51121-08G10

$17.69

28

.PIECE, OIL LOCK

51195-48000

Unavailable

29

.GASKET

51148-36011

$3.56

30

.BOLT (8X27)

51147-48130

$4.34

31

.SPRING, FR

51171-08G00

Unavailable

32

.BOLT

51351-48000

Unavailable

33

.O RING

51181-25030

$4.52

34

.CYLINDER

51146-08G00

Unavailable

35

.SPRING, REBOUND

51177-08G00

Unavailable

36

.RING

51196-48000

$8.42

37

.BOOT

51571-08G40

$52.73

38

.BAND

51575-08G00

$8.42
