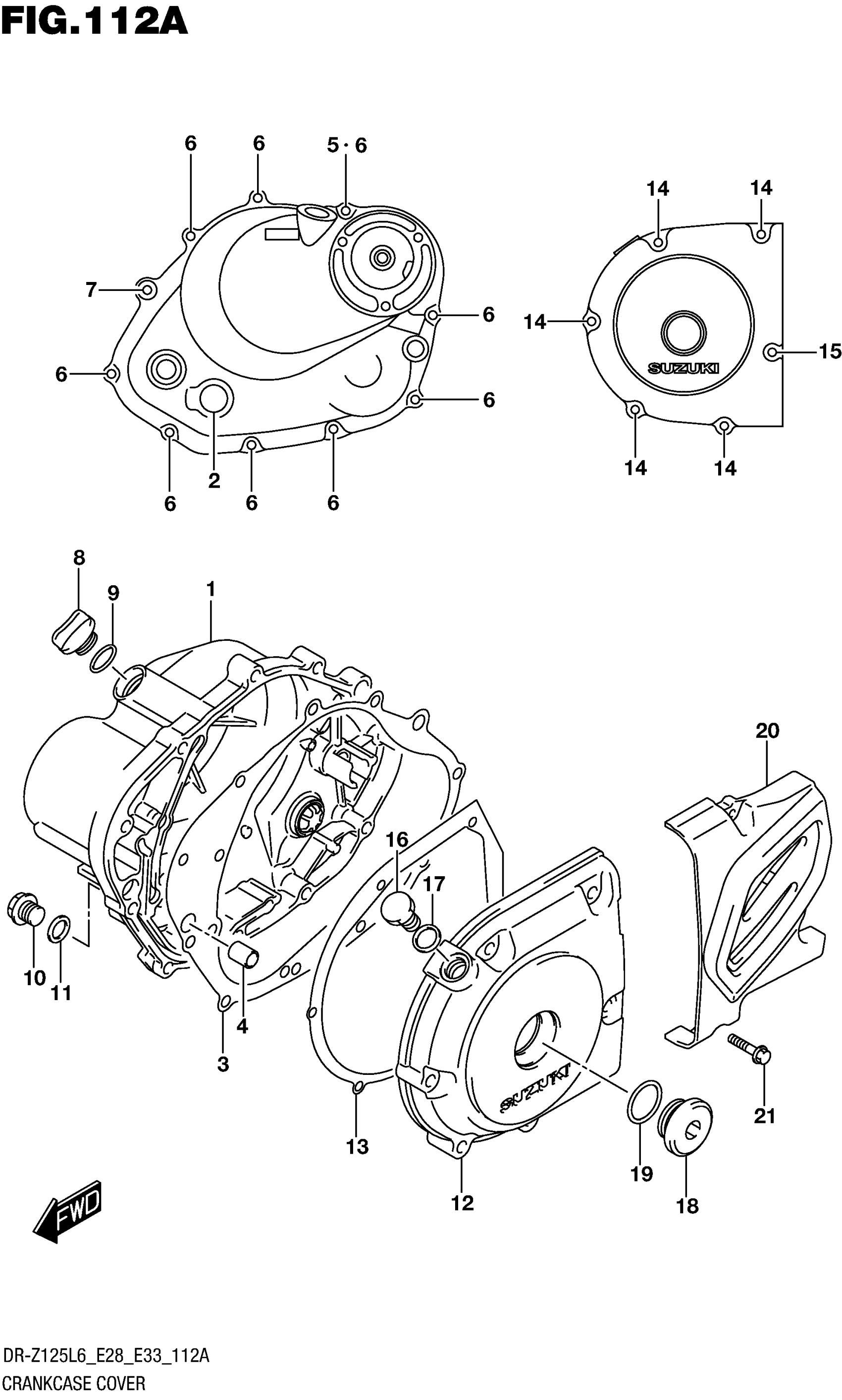

Suzuki DR-Z125L6 (2016) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-42A30

$247.38

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

.GASKET, CLUTCH COVER

11482-05211

$12.83

4

KNOCK PIN

04211-13189

$2.19

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

BOLT

01547-0630A

$2.32

7

BOLT

01547-0645A

$2.42

8

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

10

PLUG (14X12)

09247-14026

$3.76

11

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

12

COVER, MAGNETO

11351-08G30

$157.58

13

.GASKET, MAGNETO COVER

11483-05210

$7.57

14

BOLT

01547-0630A

$2.32

15

BOLT

01547-0640A

$2.32

16

PLUG (12X9)

09247-12104

$2.73

17

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

18

PLUG (26X9)

09259-26011

$11.03

19

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

20

COVER, ENG SPROCKET

11360-08G00

$69.70

21

BOLT

01547-0530A

$2.12
