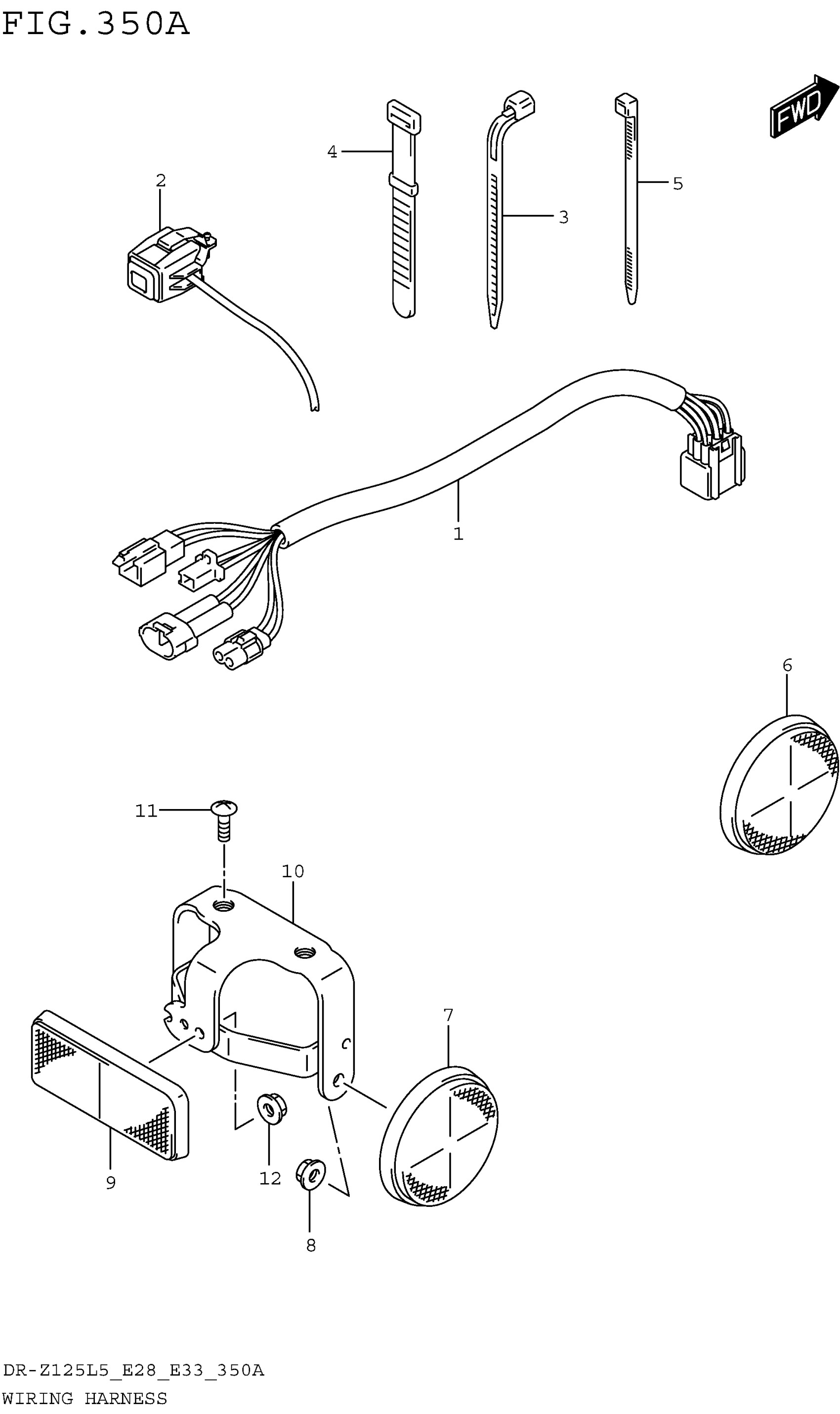

Suzuki DR-Z125L5 (2015) WIRING HARNESS (DR-Z125L5 E28) Diagram

#

Description
Price

1

HARNESS, WIRING This part replaces 36610-08G00.

36610-08G01

$59.98

2

SWITCH ASSY, ENGINE STOP

37820-08G00

$61.58

3

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:120)

09407-12402

$3.04

5

CLAMP (L:145)

09407-14407

$3.57

6

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

7

REFLECTOR ASSY, RR SIDE

35970-30910

$44.56

8

NUT

08316-1005B

$2.50

9

REFLECTOR ASSY, RR

35970-07F01

$20.88

10

BRACKET, SIDE & RR REFL

35974-08G10

Unavailable

11

SCREW

02142-0612B

$2.05

12

NUT

08316-1005B

$2.50
