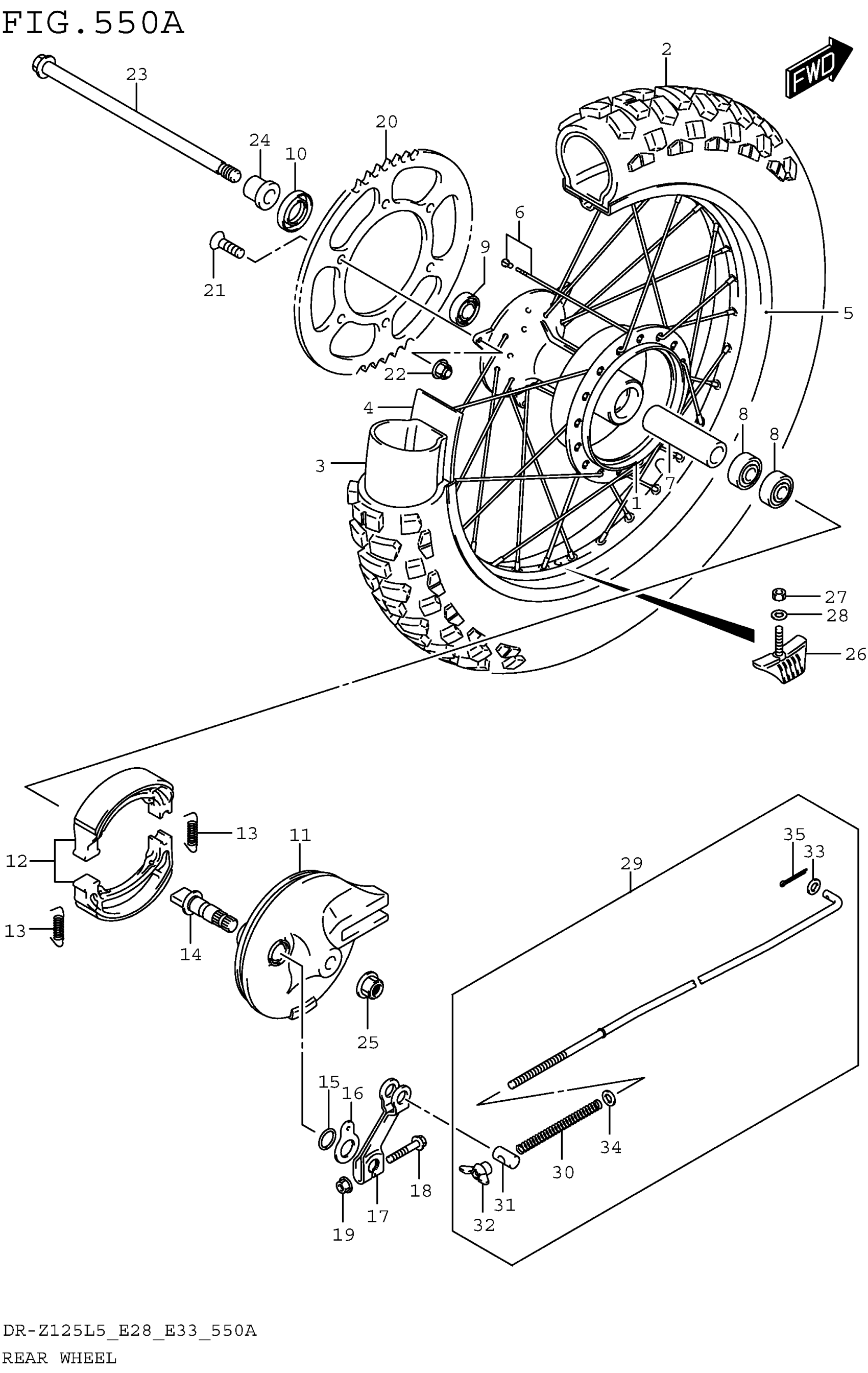

Suzuki DR-Z125L5 (2015) REAR WHEEL (DR-Z125L5 E28) Diagram

#

Description
Price

1

HUB, RR WHEEL

64110-08G10

$432.90

2

TIRE, RR (90/100-14 49M)

65110-08G00

$129.55

3

TUBE ASSY, WHEEL INNER This part replaces 65200-08G00.

65200-08G01

$25.98

4

PROTECTOR, WHEEL INNER TUBE

65261-08G20

Unavailable

5

RIM, RR WHEEL (14X1.60)

65311-08G20

$309.93

6

SPOKE SET, RR WHEEL

65320-08G20

$74.15

7

SPACER (12.5X19X45.5)

09180-12151

$11.43

8

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

9

BEARING This part replaces 08123-63017.

08123-6301B

$14.10

10

OIL SEAL (20X37X7)

09283-20025

$5.64

11

PANEL, RR BRAKE ANCHOR

64210-08G00

$180.10

12

SHOE SET, BRAKE

54401-43840

$32.74

13

.SPRING (L:37.8)

09443-07044

$3.04

14

CAM, RR BRAKE

64441-13G00

$24.25

15

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

16

PLATE, BRAKE LINING INDICATOR

54492-13G00

$5.13

17

LEVER, RR BRAKE CAM

64451-08G00

$27.17

18

BOLT

01550-0635A

$2.32

19

NUT

08316-1006A

$2.19

20

SPROCKET, RR (NT:51)

64511-08G00

$61.40

21

BOLT (8X30.5)

09120-08010

$2.36

22

NUT

08319-3108A

$2.32

23

AXLE, RR

64711-08G00

$41.37

24

SPACER, RR AXLE

64751-08G00

$13.95

25

NUT

08319-3112A

$3.76

26

STOPPER, BEAD (1.6)

65270-08G00

$54.75

27

NUT, BEAD STOPPER

08310-0008A

$1.84

28

WASHER

08322-0108A

$1.92

29

ROD ASSY, RR BRAKE

43300-08G00

$18.20

30

SPRING

09440-09004

$2.20

31

PIN (11X18)

09209-11002

$2.19

32

NUT

09144-06005

$3.78

33

WASHER, FRONT

08322-0105A

$1.84

34

WASHER, REAR

08322-0106A

$1.84

35

COTTER PIN

04111-2020A

$1.49
