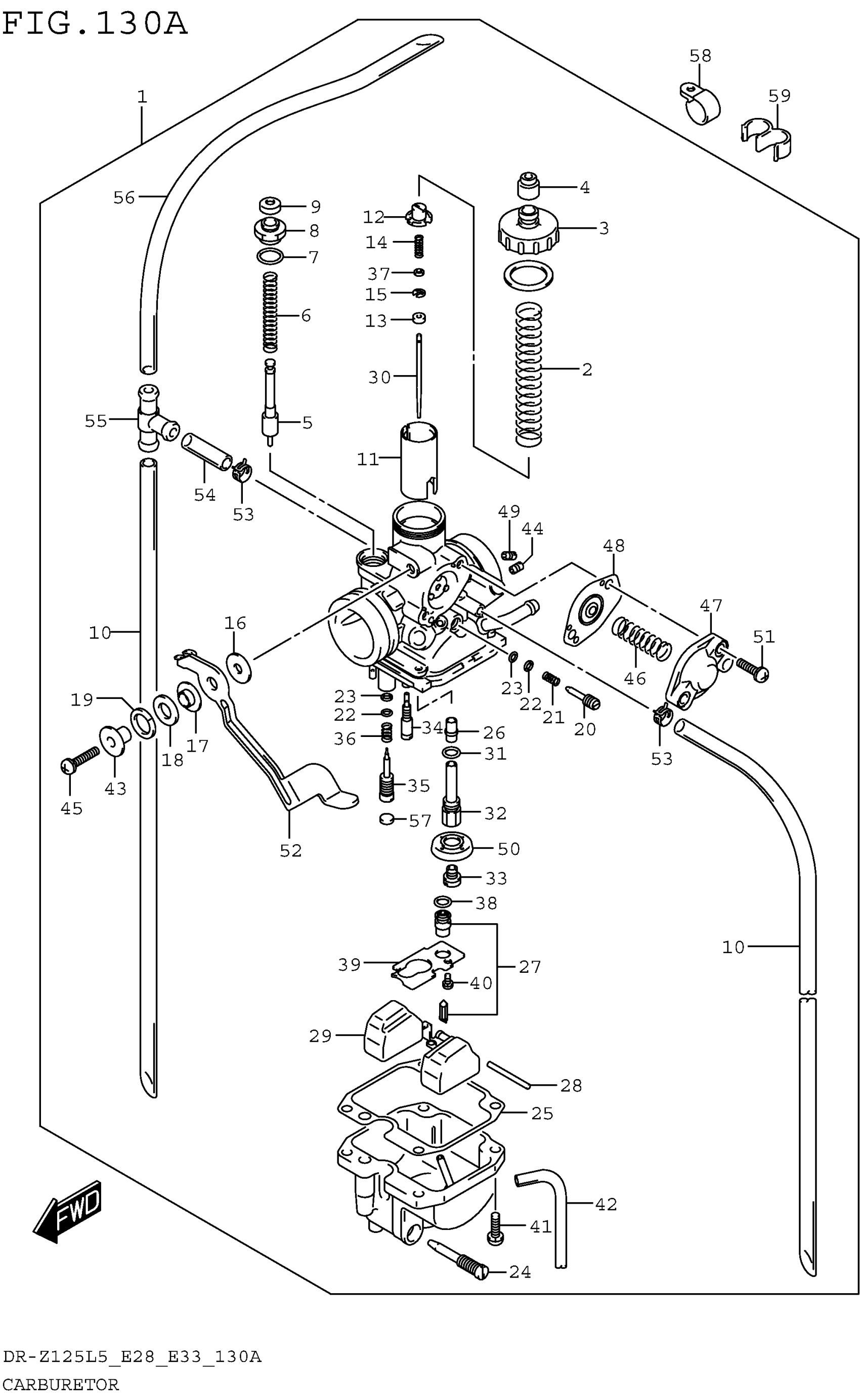

Suzuki DR-Z125L5 (2015) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-08G00.

13200-08G02

$241.54

2

SPRING

13573-08G00

$10.07

3

MIXING CAP ASSY

13261-08G00

$32.10

4

.CAP This part replaces 13681-04010.

13681-04011

$4.93

5

PLUNGER ASSY

13411-05320

$26.80

6

SPRING

13417-08G00

$5.55

7

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

8

.HOLDER, GUIDE

13418-44080

$10.00

9

.CAP, STARTER VALVE

13682-31210

$4.37

10

HOSE (5X8X475)

13686-08G20

$10.55

11

.VALVE, PISTON

13551-08G00

$61.90

12

HOLDER

13389-08G00

$7.37

13

RING

13387-47010

$7.22

14

SPRING

13481-33E00

$3.70

15

.E-RING

13394-40D20

$5.45

16

WASHER

13421-05320

$3.12

17

RING

13432-05320

$4.25

18

WASHER

13589-47070

$1.98

19

.LOCK WASHER

08321-01087

$2.13

20

.SCREW, ADJUST

13267-08G00

$13.67

21

SPRING

13268-08G00

$4.88

22

WASHER

13291-29900

$1.98

23

O-RING This part replaces 13295-29900.

13295-29901

$4.34

24

SCREW

13247-08G00

$6.08

25

GASKET

13251-29B00

$7.69

26

.JET, NEEDLE

13341-08G00

$45.83

27

.VALVE ASSY, NEEDLE

13370-08G00

$59.53

28

.PIN, FLOAT

13254-01010

$3.62

29

FLOAT ASSY

13240-08G00

$41.68

30

.JET, NEEDLE (5HGM74)

13383-08G00

$18.80

31

.O RING This part replaces 13246-43010.

13246-43011

$4.34

32

.JET, HOLDER

13385-08G00

$35.20

33

.JET (#102.5)

09491-20012

$11.38

34

.JET (17.5)

09492-17017

$26.93

35

ADJUSTER

13279-08G00

$14.85

36

.SPRING (NT:45)

13268-47070

$4.34

37

WASHER

13382-08G00

$4.52

38

.O RING

13374-46710

$4.48

39

PLATE

13259-29B10

Unavailable

40

SCREW This part replaces 13601-03068.

02112-0306B

$1.59

41

SCREW

13601-04148

$2.81

42

HOSE | L:650->400

13684-40A00

$9.58

43

RING

13424-05320

$5.21

44

.JET (85)

09493-85001

Unavailable

45

SCREW

13601-44A10

$4.33

46

SPRING

13481-08G00

$4.57

47

COVER ASSY

13502-10F00

$39.68

48

.DIAPHRAGM ASSY This part replaces 13480-10F00.

13480-10F01

$16.79

49

.JET (#145)

09492-29002

Unavailable

50

HOLDER

13387-08G00

$7.08

51

SCREW

13601-08G00

$3.78

52

LEVER

13413-08G00

$26.55

53

CLIP

13671-08G00

$5.72

54

HOSE (5X8X25)

13686-08G00

$2.98

55

.NIPPLE

13685-48B00

$12.15

56

HOSE (5X8X375)

13686-08G10

$8.60

57

PLUG

13281-05A00

$4.60

58

CLAMP

09403-22403

Unavailable

59

CLAMP

09408-00033

$2.83
