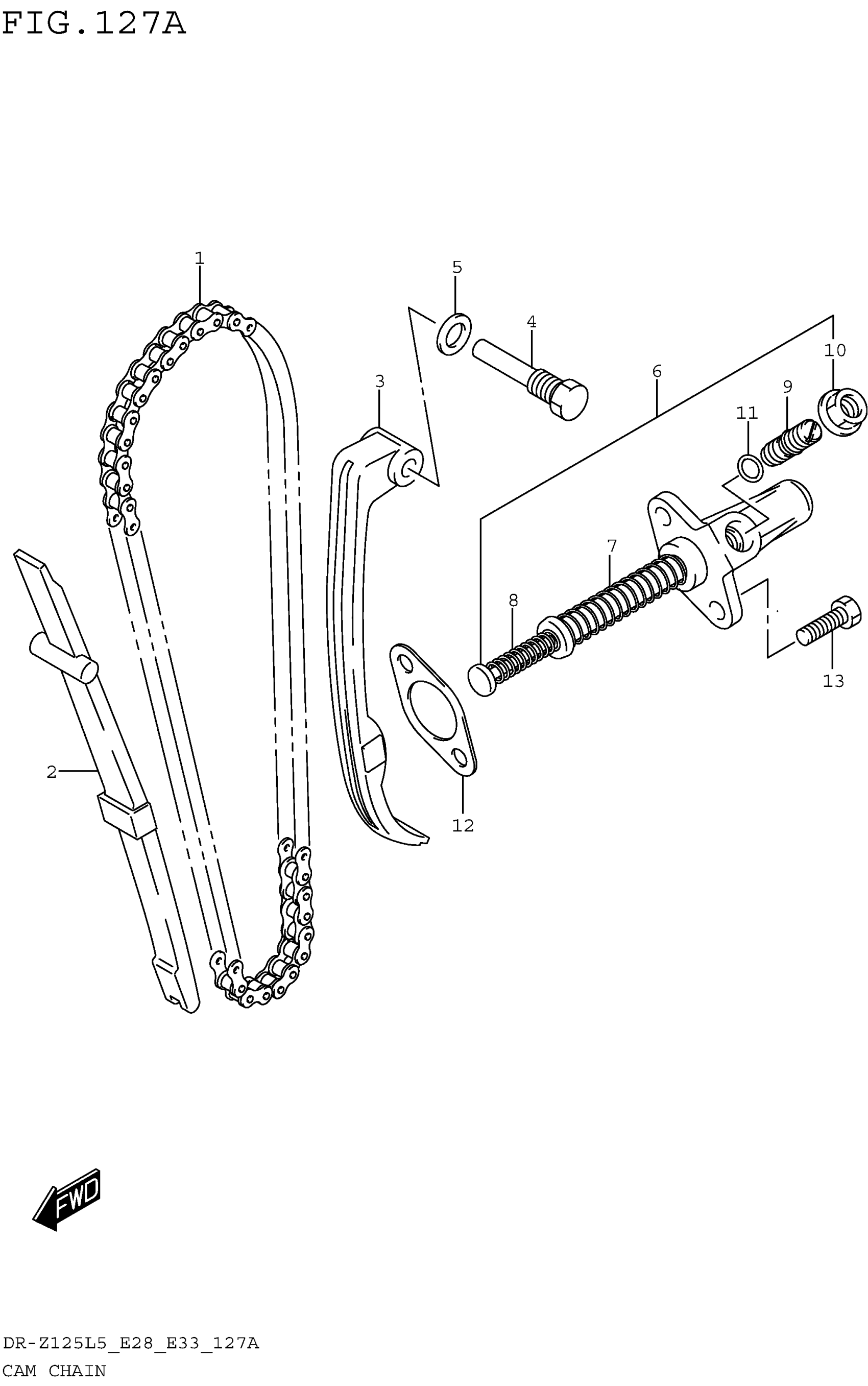

Suzuki DR-Z125L5 (2015) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE (98LE) | 98LE

12760-44A00

$87.25

2

GUIDE, CAM CHAIN

12771-05200

$43.68

3

TENSIONER, CAM CHAIN This part replaces 12811-05220.

12811-05221

$37.87

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER

12830-05230

$140.97

7

SPRING

09440-12030

$2.50

8

SPRING

09440-08035

$3.03

9

.BOLT, ADJUST

12838-08G00

Unavailable

10

NUT

08316-1008A

$2.45

11

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

12

.GASKET, TENSIONER ADJUSTER

12837-32410

$2.74

13

BOLT

01547-0620A

$2.03
