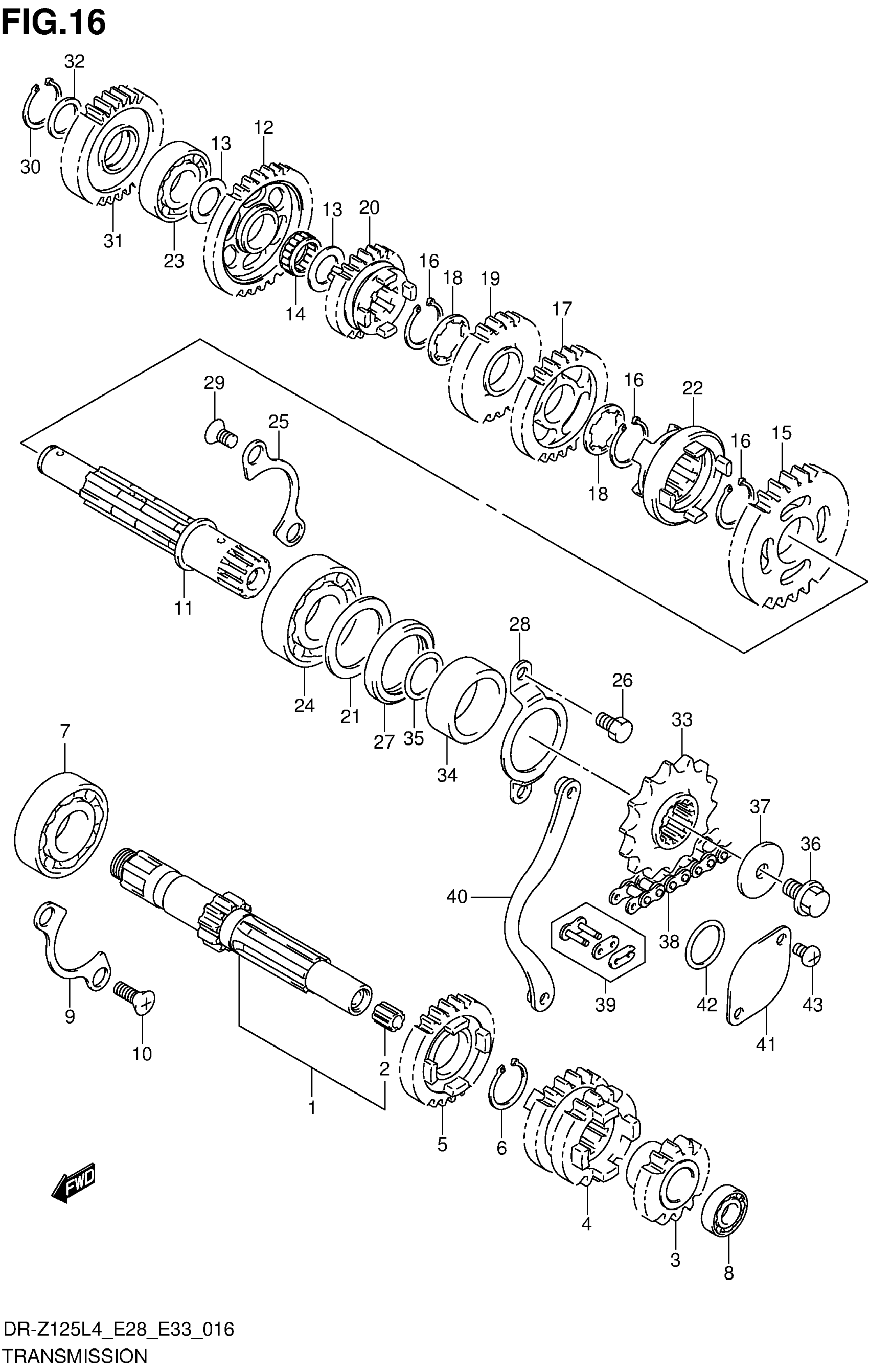

Suzuki DR-Z125L4 (2014) TRANSMISSION (DR-Z125LL4 E28) Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11)

24120-05860

$106.85

2

BUSH

24125-38201

$7.22

3

GEAR, 2ND DRIVE (NT:14)

24221-05301

Unavailable

4

GEAR, 3RD & 4TH DRIVEN

24231-05203

Unavailable

5

GEAR, 5TH DRIVE (NT:26)

24251-05212

Unavailable

6

CIRCLIP, 5TH DRIVE

09380-20009

$2.06

7

BEARING (20X47X14)

09262-20069

$21.00

8

BEARING

08123-60027

$25.32

9

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

10

SCREW (6X12)

09126-06011

$2.01

11

SHAFT, DRIVE

24130-44A00

Unavailable

12

GEAR, 1ST DRIVEN (NT:33)

24311-05202

Unavailable

13

THRUST WASHER

08211-15251

$1.80

14

BEARING (15X19X7.8)

09263-15023

Unavailable

15

GEAR, 2ND DRIVEN (NT:26)

24320-05202

Unavailable

16

CIRCLIP

09380-20009

$2.06

17

GEAR, 3RD DRIVEN (NT:26)

24331-05203

Unavailable

18

LOCK WASHER

09167-20034

Unavailable

19

GEAR, 4TH DRIVEN (NT:23)

24341-05203

Unavailable

20

GEAR, 5TH DRIVEN (NT:24)

24351-05211

Unavailable

21

WASHER, OIL SEALING

24359-42A00

$4.92

22

WHEEL, SLIDING DOG

24421-05300

Unavailable

23

BEARING (15X36X12)

09264-15001

Unavailable

24

BEARING (22X50X14)

09262-22018

$27.83

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

26

BOLT

01500-0610A

$2.43

27

OIL SEAL (30X40X6)

09283-30053

$8.34

28

RETAINER, DRIVE SHAFT OIL SEA

24751-42A10

$5.10

29

SCREW (6X12)

09126-06011

$2.01

30

CIRCLIP

08331-3115A

$1.97

31

GEAR, KICK STARTER IDLE | NT:26

26260-05201

Unavailable

32

WASHER (15X20X1.0)

09181-15111

$3.22

33

SPROCKET, ENGINE (NT:14)

27511-44A20

$39.53

34

SPACER, ENGINE SPROCKET

27531-42A00

$26.03

35

O RING (D:2.5,ID:21)

09280-21008

$1.89

36

BOLT (8X12)

01550-0812A

$2.31

37

WASHER

08211-08283

$2.80

38

CHAIN, DRIVE (DID428HD(I)) This part replaces 27600-46911-130.

27600-46912-130

$101.25

39

.JOINT SET, CHAIN | OPT This part replaces 27620-46911.

27620-46912

$6.28

40

PLATE, FR CHAIN GUIDE

27640-08G00

$21.28

41

CAP, NEUTRAL SW HOLE

11450-08G00

Unavailable

42

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

43

SCREW

02112-0508A

$1.43
