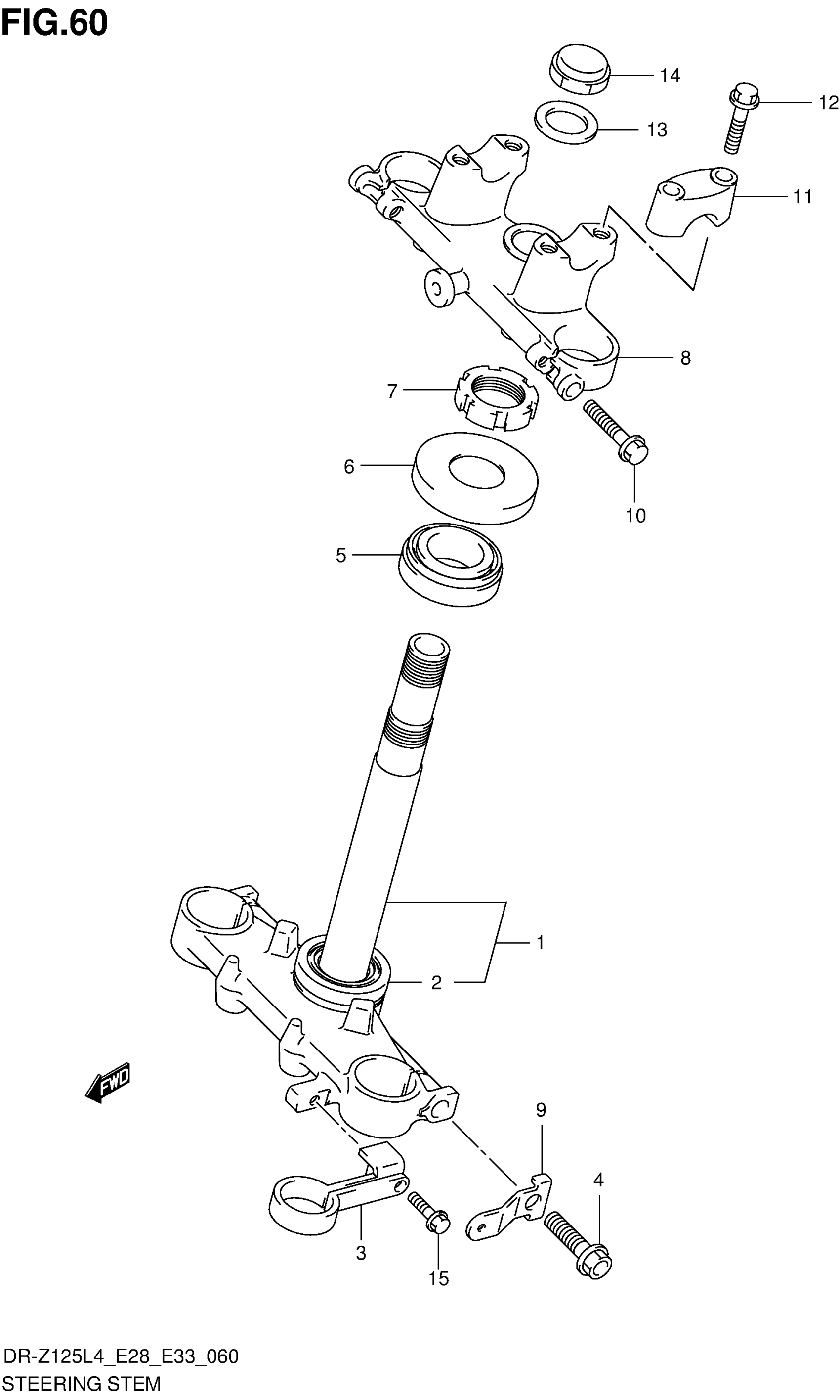

Suzuki DR-Z125L4 (2014) STEERING STEM (DR-Z125LL4 E28) Diagram

#

Description
Price

1

STEM, STEERING

51410-08G00

Unavailable

2

.BEARING (26X47X15) This part replaces 09265-26001.

09265-26002

$47.18

3

GUIDE, FRONT BRAKE HOSE

51453-08G00

$6.92

4

BOLT

51328-08G00

Unavailable

5

BEARING (25X47X15)

09265-25038

$45.57

6

SEAL, STEERING UPR DUST

51643-03B00

$13.05

7

NUT, STEERING

51631-03B00

$23.32

8

BRACKET, UPR

51311-08G00

Unavailable

9

BRACKET, FR SIDE RR

35956-08G00

Unavailable

10

BOLT

51321-08G00

$8.05

11

HOLDER, HANDLE

56211-36F00

$34.15

12

BOLT, HOLDER

51321-08G00

$8.05

13

WASHER

51356-02B60

$13.83

14

NUT

51353-11D50

$26.87

15

BOLT, FRONT BRAKE HOSE GUIDE

01547-06207

$2.01
