Description

Price

1

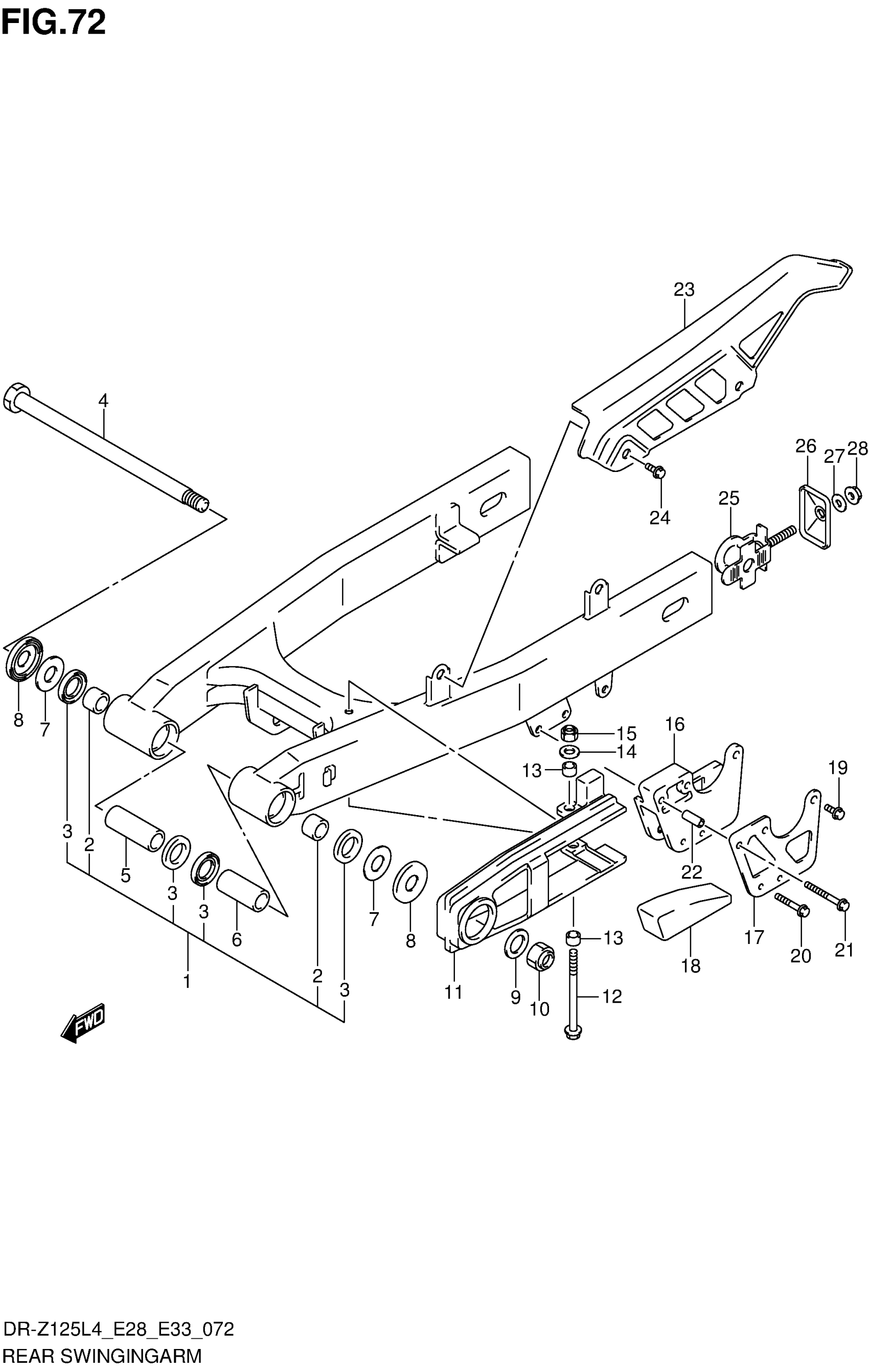

SWINGINGARM ASSY, RR (SILVER)

61000-08G00-13L

Unavailable

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$16.28

3

OIL SEAL (20X27X5)

09283-20031

$5.24

4

SHAFT, RR SWINGINGARM PIVOT

61211-44A11

$37.12

5

SPACER, RR SWGARM PIVOT RH

61251-08G00

$26.48

6

SPACER, RR SWGARM PVT

61251-42A00

$23.07

7

THRUST WASHER

08211-14321

$3.85

8

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

9

WASHER (14.5X24X2.3)

09160-14057

$3.15

10

NUT

09159-14019

$11.61

11

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-08G00.

61273-08G01

$23.43

12

BOLT

01560-0665B

$3.72

13

SPACER (6.5X9X6.5)

09180-06257

$2.83

14

WASHER

08322-0106B

$2.26

15

NUT

08319-2106B

$2.32

16

GUIDE, CHAIN

61343-02B40

$41.68

17

PLATE, GUIDE CHAIN OUTER

61342-02B40

$33.93

18

DEFENSE, CHAIN GUIDE This part replaces 61348-08G00.

61348-08G01

$15.43

19

BOLT, CHAIN GUIDE (6X16)

09103-06234

$2.35

20

BOLT (6X40)

09103-06241

$3.08

21

BOLT (6X30)

09103-06251

$2.35

22

SPACER (6.5X10X23.5)

09180-06333

$2.83

23

CASE, CHAIN

61311-01A03

$63.38

24

SCREW, CHAIN CASE (6X10)

09116-06096
