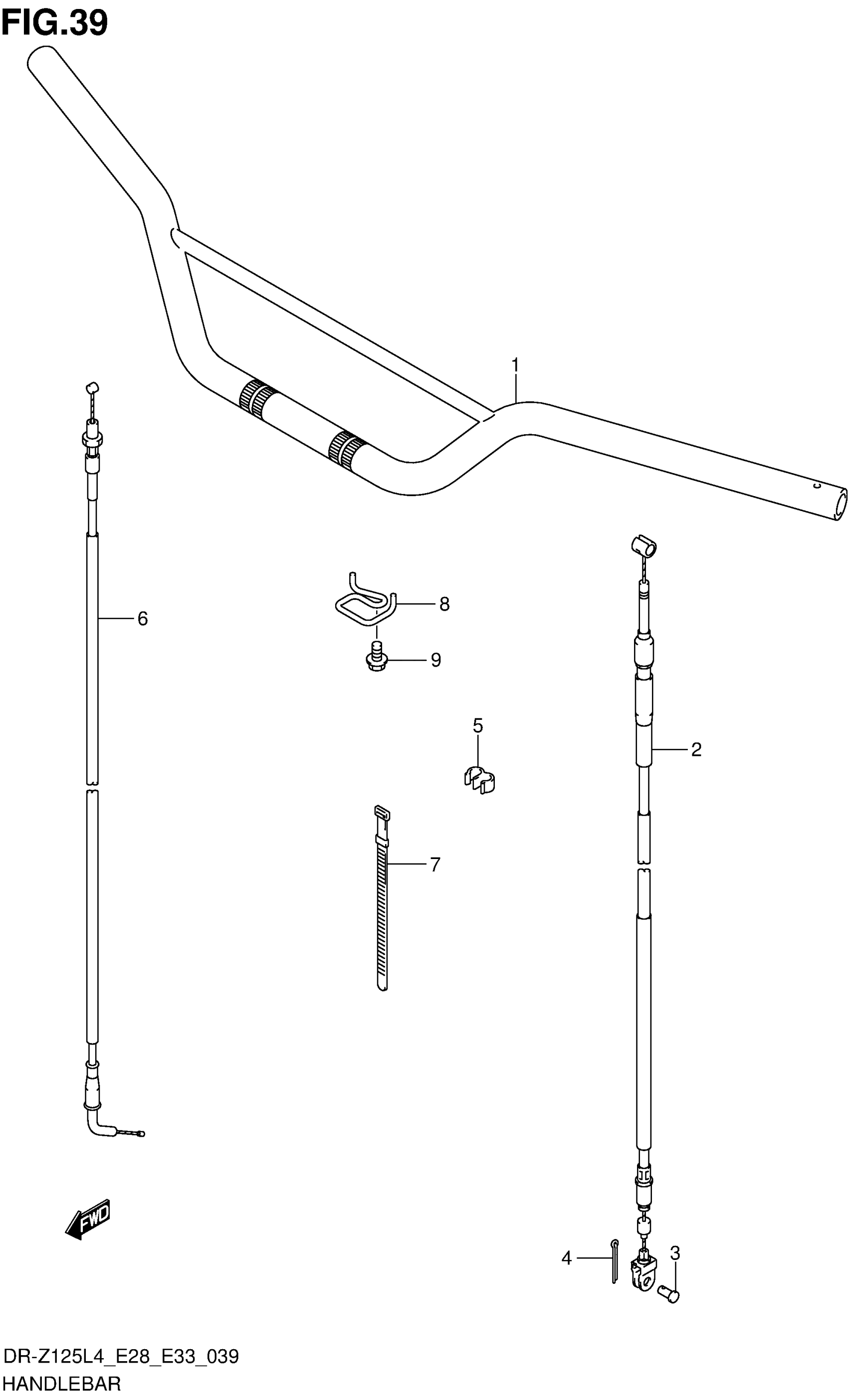

Suzuki DR-Z125L4 (2014) HANDLEBAR (DR-Z125LL4 E28) Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56110-08G00-13L

$160.78

2

CABLE ASSY, CLUTCH

58200-08G00

$29.57

3

PIN

09200-06004

$2.20

4

COTTER PIN

04111-2015A

$1.49

5

CLAMP, CLUTCH CABLE

09403-17402

Unavailable

6

CABLE ASSY, THROTTLE

58300-08G00

$18.67

7

CLAMP (L:90)

09407-11402

$1.80

8

GUIDE, CABLE

58621-08G00

$11.78

9

BOLT

01550-0612A

$1.97
