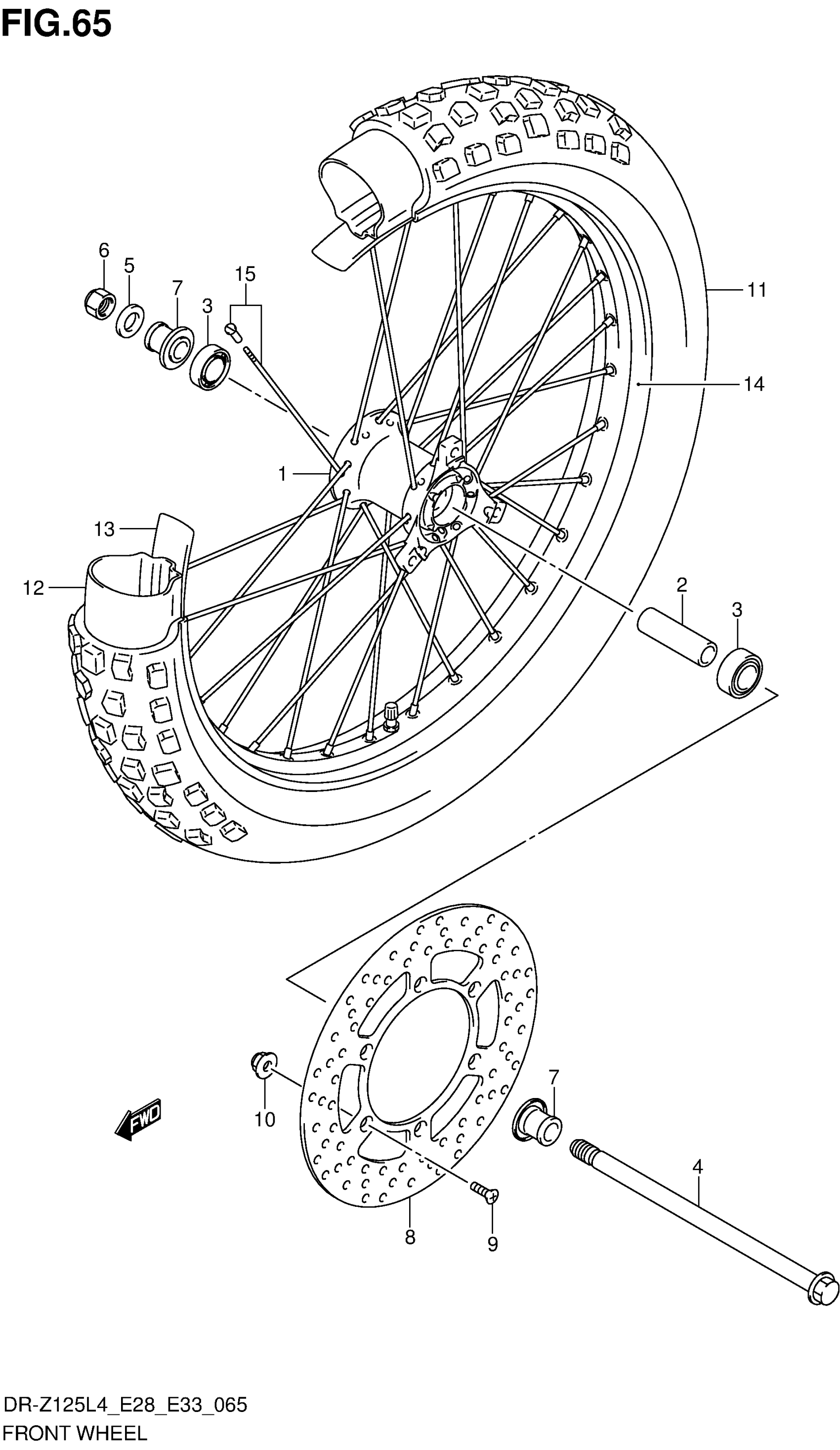

Suzuki DR-Z125L4 (2014) FRONT WHEEL (DR-Z125LL4 E33) Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$352.00

2

SPACER, FR HUB BEARING

54731-02B40

$15.43

3

BEARING

08133-62017

$16.90

4

AXLE, FR

54711-08G10

$51.22

5

WASHER (12.5X24X3.2)

09160-12082

$4.20

6

NUT

08319-2112A

$3.38

7

SPACER, FR AXLE

54740-02B40

$14.76

8

DISC, FR BRAKE

59221-08G00

$339.93

9

SCREW, DISC (6X22)

09126-06009

$2.95

10

NUT

08319-3106A

$2.01

11

TIRE, FRONT, 70/100-19 42M IRC

55110-08G10

Unavailable

12

TUBE ASSY, WHEEL INNER This part replaces 55200-08G10.

55200-08G11

$28.18

13

PROTECTOR, WHEEL INNER TUBE

55261-08G30

Unavailable

14

RIM, FR WHEEL (19X1.40)

55311-08G30

$358.35

15

SPOKE SET, FR WHEEL

55320-08G30

$76.43
