Description

Price

1

HUB, FR WHEEL

54110-09401

$183.50

2

PANEL, FR BRAKE ANCHOR

54210-08G00

Unavailable

3

SHOE & SPRING SET, BRAKE

54401-43830

$53.30

4

.SPRING (L:37.8)

09443-07044

$3.04

5

CAM, FR BRAKE

54441-35401

Unavailable

6

DUST SEAL (ID:13.8,D:2.50)

09280-14011

$4.77

7

LEVER, FR BRAKE CAM

54451-26500

$14.76

8

NUT

08316-1006A

$2.19

9

BOLT

01550-0635A

$2.32

10

WASHER (14.5X22X1.6)

09160-14055

$2.39

11

SPRING, FR BK CAM LEVER RETUR

54484-08G00

$6.97

12

AXLE, FR

54711-08G00

$29.07

13

WASHER (10.5X20X3.2)

09160-10005

$1.87

14

NUT

08319-3110A

$2.73

15

SPACER, FR AXLE RH

54740-26101

$18.87

16

SPACER (10.2X16X51)

09180-10148

$8.18

17

OIL SEAL (15X31X5)

09284-15001

$4.73

18

BEARING This part replaces 08143-63007.

08143-6300B

$15.33

19

BEARING This part replaces 08113-62007.

08113-6200B

$11.92

20

TIRE, FR (70/100-17 40M)

55110-08G00

$100.27

21

TUBE ASSY, WHEEL INNER This part replaces 55200-08G00.

55200-08G01

$22.77

22

PROTECTOR, WHEEL INNER TUBE

55261-08G20

$5.08

23

RIM, FR WHEEL (17X1.40)

55311-08G20

$306.43

24

SPOKE SET, FR WHEEL

55320-08G20

$65.18

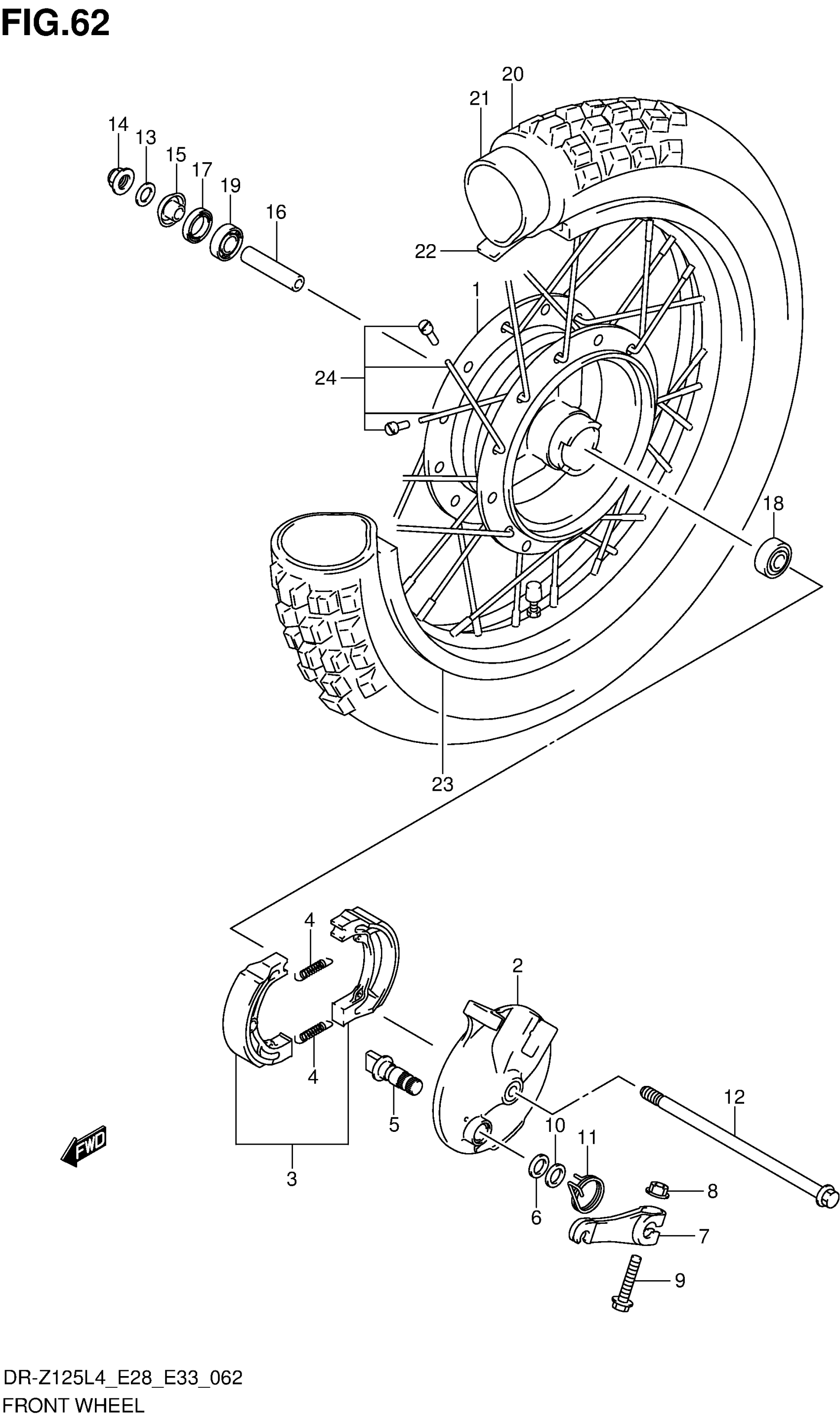

Suzuki DR-Z125L4 (2014) FRONT WHEEL (DR-Z125L4 E28) Diagram
