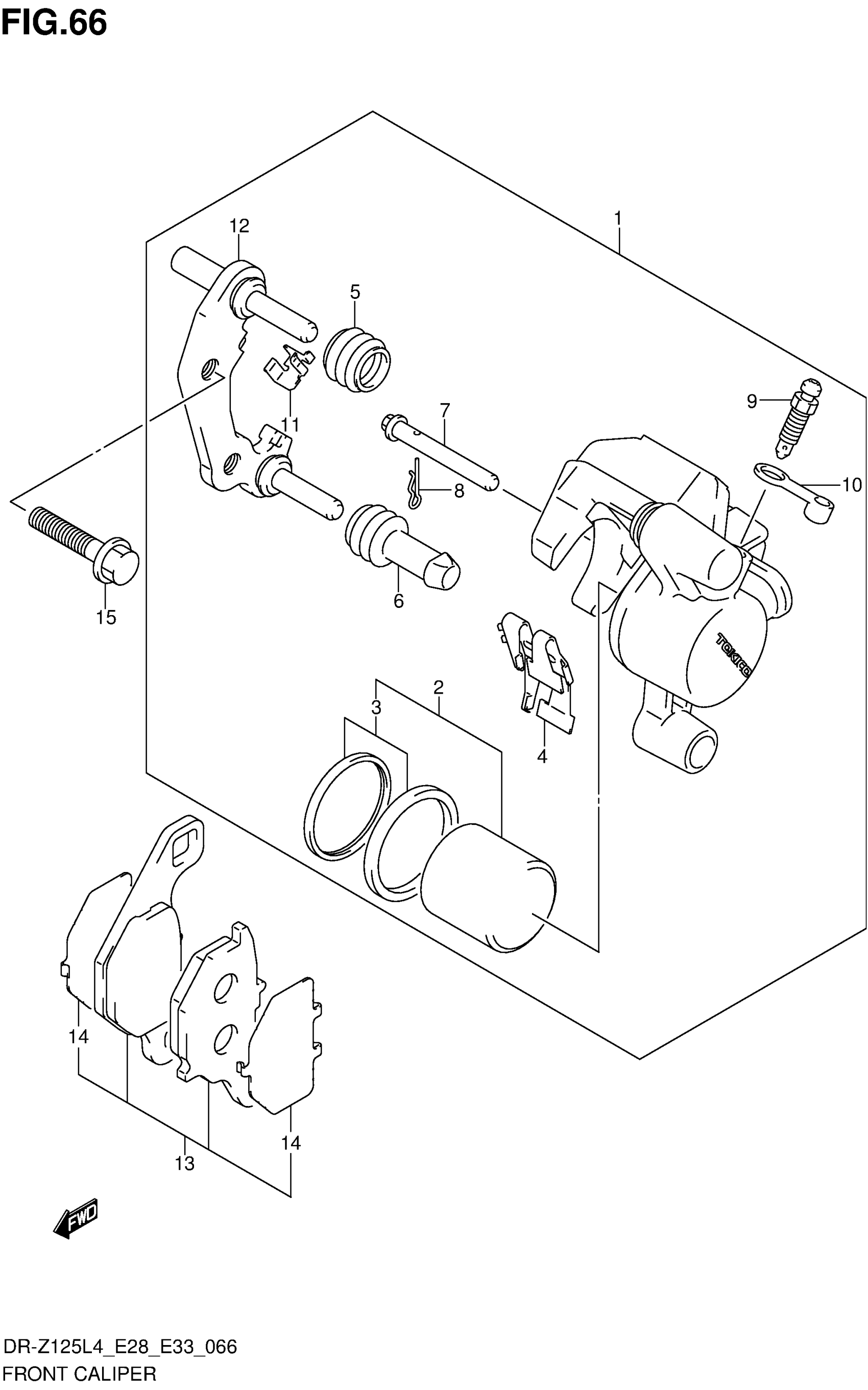

Suzuki DR-Z125L4 (2014) FRONT CALIPER (DR-Z125LL4 E28) Diagram

#

Description
Price

1

CALIPER ASSY, FRONT LH This part replaces 59300-03B10-999.

59300-03B11-999

$226.12

2

PISTON SET

59301-20830

$35.87

3

..SEAL SET, PISTON

59300-35830

$17.52

4

.SPRING, PAD

59315-20E00

$14.85

5

.BOOT, AXLE

59312-36500

$5.07

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.PIN, PAD

69141-44B02

$12.48

8

.CLIP, PAD PIN

69142-45000

$4.34

9

BLEEDER

59121-18410

$8.73

10

CAP, BLEEDER This part replaces 59122-02B40.

55156-66310

$5.17

11

.GUIDE, PAD

59116-20E00

$7.27

12

CARRIER, LH This part replaces 59350-20E00.

59350-03B00

$89.43

13

PAD & SHIM SET

59301-20870

$49.90

14

.SHIM, PAD

59371-20E00

$15.13

15

BOLT (8X35)

01550-0835A

$3.04
