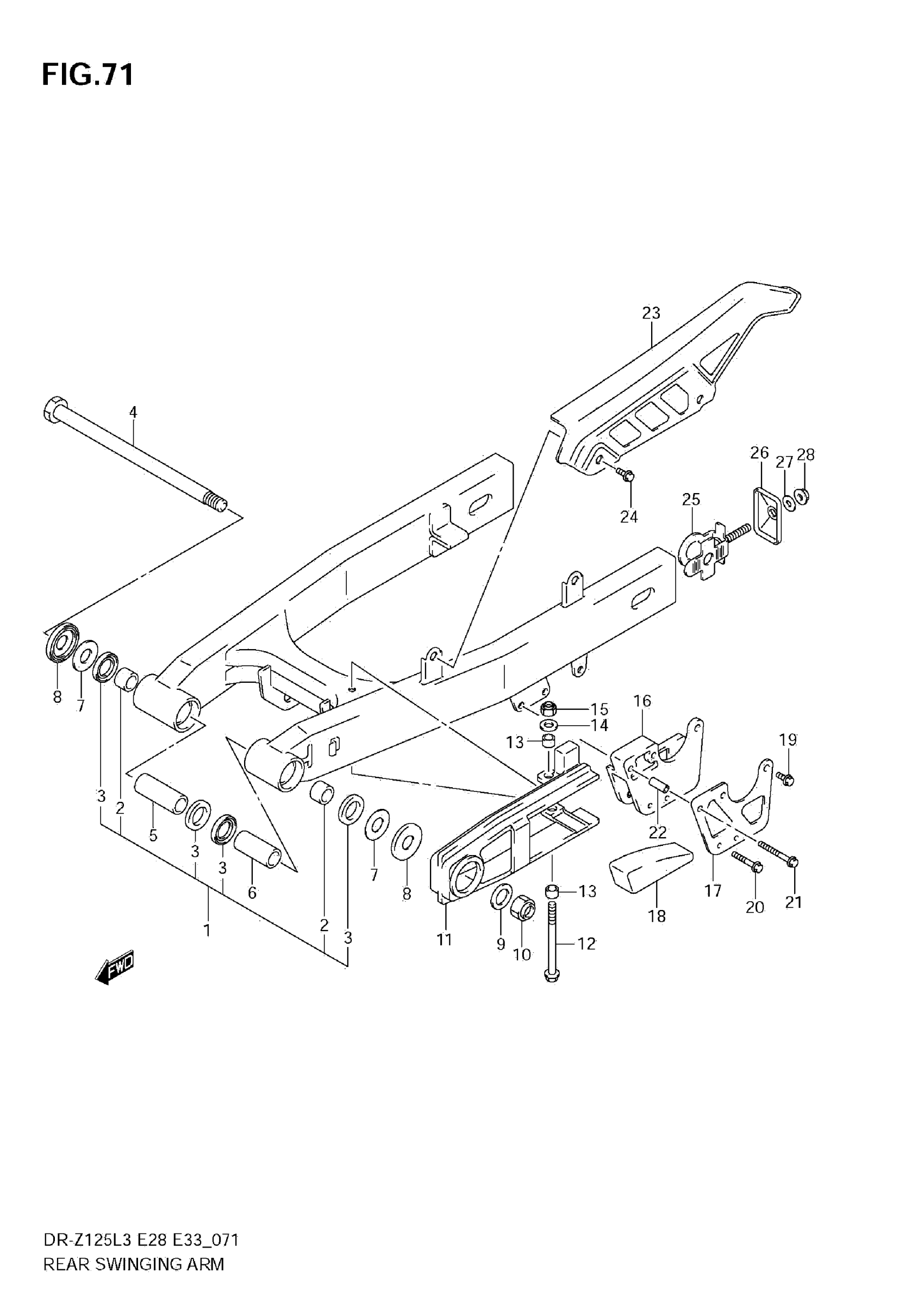

Description

Price

1

SWGARM ASSY, REAR (SILVER)

61000-08G10-13L

$587.85

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$15.33

3

OIL SEAL (20X27X5)

09283-20031

$4.73

4

SHAFT, RR SWINGINGARM PIVOT

61211-44A11

$41.88

5

SPACER, RR SWGARM PIVOT RH

61251-08G00

$29.88

6

SPACER, RR SWGARM PVT

61251-42A00

$26.03

7

THRUST WASHER

08211-14321

$4.18

8

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.59

9

WASHER (14.5X24X2.3)

09160-14057

$3.42

10

NUT

09159-14019

$10.63

11

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-08G00.

61273-08G01

$26.45

12

BOLT

01560-0665B

$4.03

13

SPACER (6.5X9X6.5)

09180-06257

$2.56

14

WASHER

08322-0106B

$2.24

15

NUT

08319-2106B

$2.31

16

GUIDE, CHAIN

61343-02B40

$47.05

17

PLATE, GUIDE CHAIN OUTER

61342-02B40

$38.30

18

DEFENSE, CHAIN GUIDE This part replaces 61348-08G00.

61348-08G01

$17.42

19

BOLT, CHAIN GUIDE (6X16)

09103-06234

$2.17

20

BOLT (6X40)

09103-06241

$3.45

21

BOLT (6X30)

09103-06251

$2.12

22

SPACER (6.5X10X23.5)

09180-06333

$3.08

23

CASE, CHAIN

61311-01A03

$59.68

24

SCREW, CHAIN CASE (6X10)

09116-06096

$2.28

25

ADJUSTER, CHAIN

61410-08G00

$24.67

26

PLATE, CHAIN ADJUSTER

61421-38200

$4.90

27

WASHER (12.5X26X2.3)

09160-12085

$2.61

28

NUT

08319-3108A
