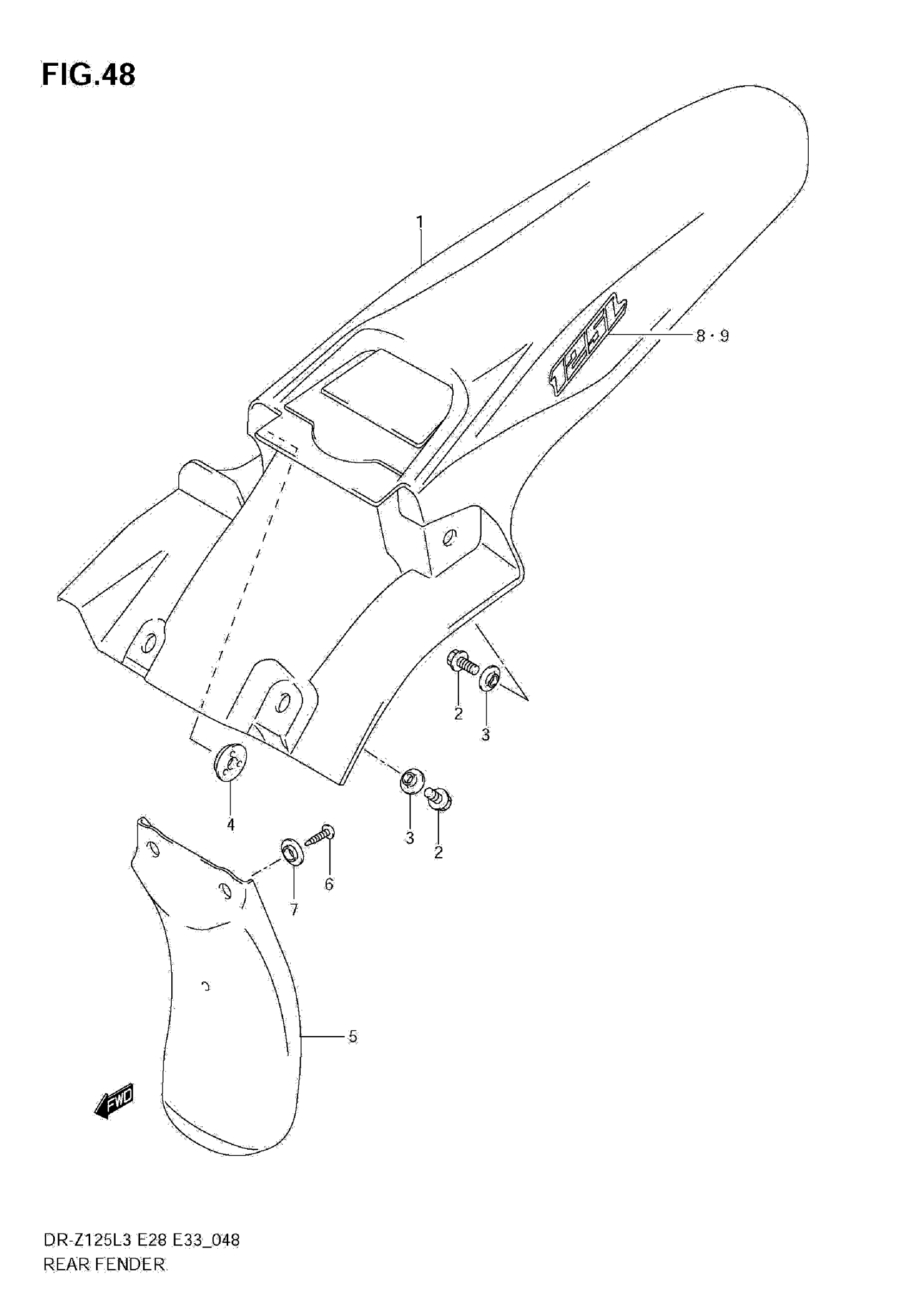

Suzuki DR-Z125L3 (2013) REAR FENDER (DR-Z125LL3 E33) Diagram

#

Description
Price

1

FENDER, REAR (BLACK)

63113-08G50-019

$133.68

2

BOLT (6X16)

09103-06200

$2.90

3

WASHER

09169-06076

$3.05

4

WASHER, MUFFLER

09169-08045

$2.23

5

MUDGUARD, RR FENDER FR

63411-29F00

$24.30

6

SCREW (5X16)

09132-05053

$2.28

7

WASHER This part replaces 09169-06045.

09169-06055

$2.27

8

EMBLEM, RH

68171-08G70-BJB

Unavailable

9

EMBLEM, LH

68172-08G70-BJB

Unavailable
