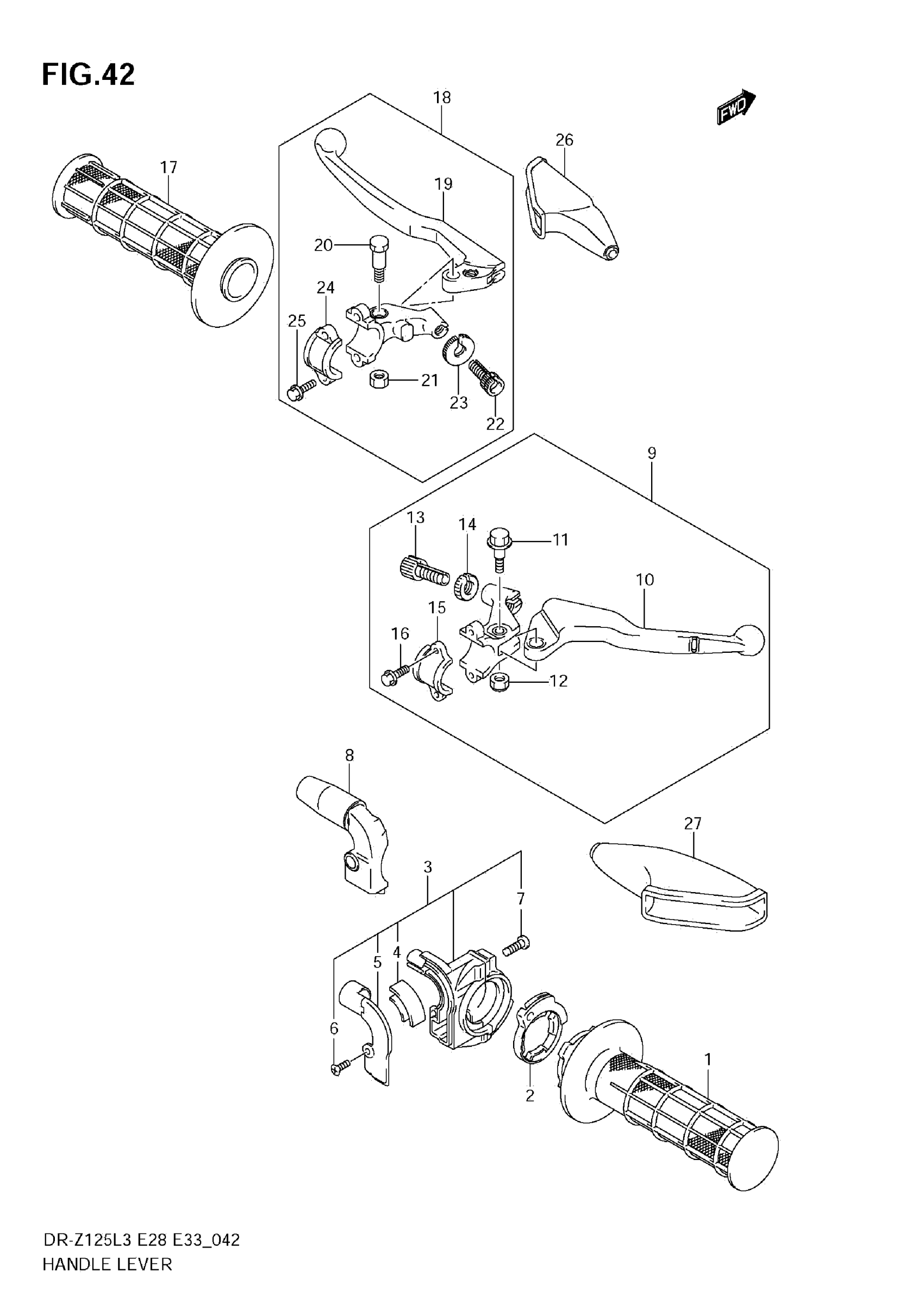

Suzuki DR-Z125L3 (2013) HANDLE LEVER (DR-Z125L3 E33) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$24.14

2

ROTER, THROTTLE

57114-20430

$14.18

3

CASE ASSY, THROTTLE This part replaces 57100-03D10.

57100-03D12

$41.78

4

.GUIDE This part replaces 57122-03D10.

57122-03D11

$9.58

5

COVER

57129-03D10

$31.88

6

SCREW

02132-0406B

$3.70

7

.SCREW

02112-0516A

$1.45

8

COVER, THROTTLE CASE

57129-08G00

$24.63

9

LEVER ASSY, BRAKE This part replaces 57300-14320.

57300-14321

$69.08

10

.LEVER, BRAKE

57420-14320

$51.47

11

.BOLT, LEVER PIVOT

57431-14320

Unavailable

12

NUT

08319-2106A

$1.89

13

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.29

14

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$7.92

15

BRACKET, HOLDER

57512-37F00

$32.55

16

BOLT

01547-06207

$2.01

17

GRIP LH

57211-27C00

$11.25

18

LEVER ASSY, CLUTCH This part replaces 57500-14320.

57500-14322

$49.53

19

.LEVER, CLUTCH

57621-13E00

$11.69

20

..BOLT,LEVER PIVOT

57431-21D11

$8.94

21

NUT

08319-2106A

$1.89

22

.ADJUSTER, WIRE This part replaces 57441-29F00.

57441-29F01

$12.78

23

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$7.92

24

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$28.93

25

.BOLT, BRACKET

57513-29F10

$7.03

26

COVER, CLUTCH CABLE DUST This part replaces 57341-29F01.

57341-29F02

$10.83

27

COVER, CLUTCH LEVER This part replaces 57341-40002.

57341-40003

$5.02
