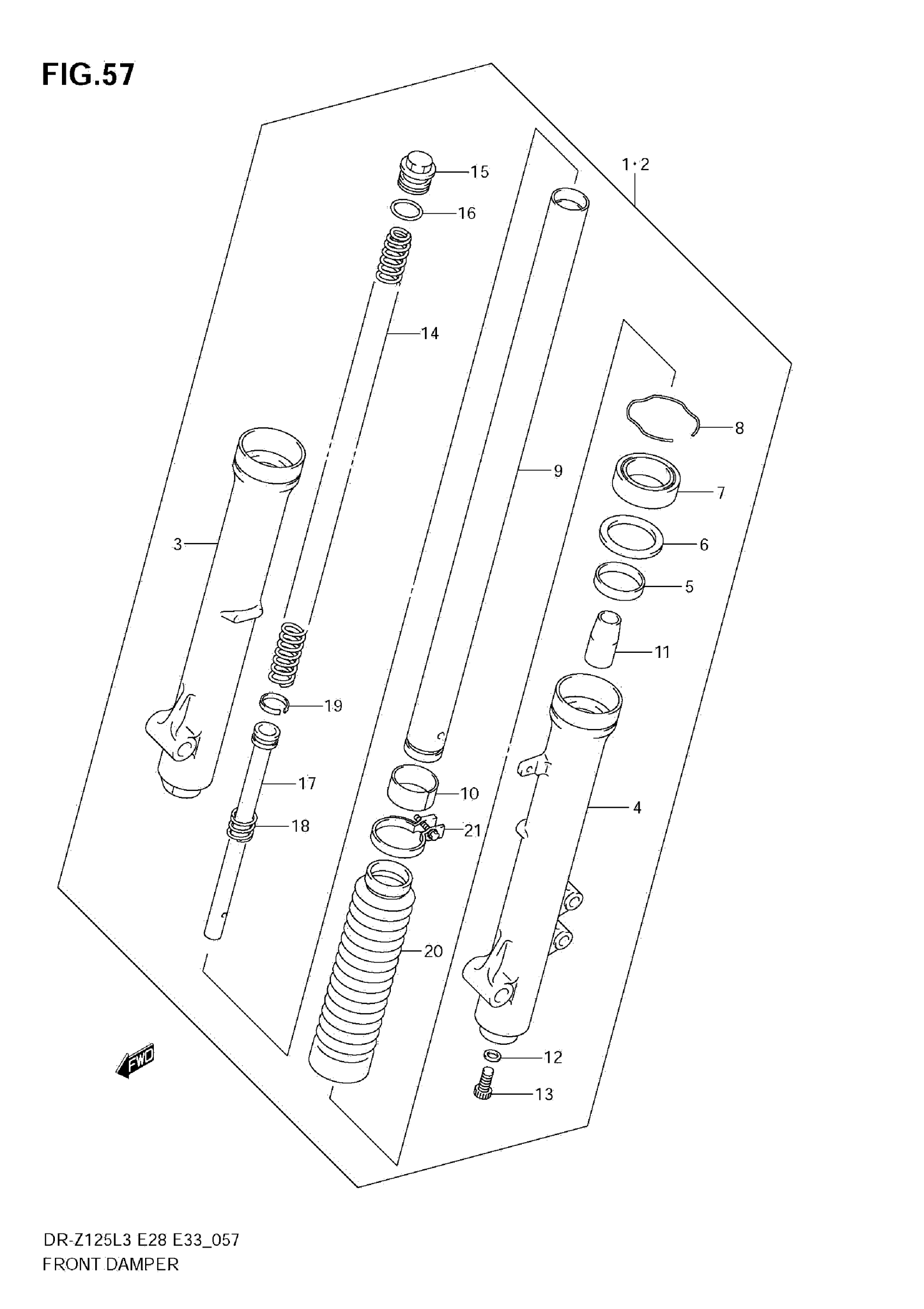

Suzuki DR-Z125L3 (2013) FRONT DAMPER (DR-Z125LL3 E33) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-08G60

Unavailable

2

DAMPER ASSY, FRONT FORK LH

51104-08G60

Unavailable

3

.TUBE, OUTER RH

51130-08G10

Unavailable

4

.TUBE, OUTER LH

51140-08G10

Unavailable

5

.BUSH, GUIDE

51152-43EC0

$16.07

6

.SPACER, SEAL

51168-43EC0

$7.97

7

.OIL SEAL

51153-48420

$12.53

8

.OIL SEAL

51156-48730

$6.00

9

.TUBE, INNER

51110-08G00

Unavailable

10

BUSH,SLIDE This part replaces 51121-08G00.

51121-08G10

$23.48

11

.PIECE, OIL LOCK

51195-48000

Unavailable

12

GASKET

51148-36011

$3.26

13

BOLT (8X27)

51147-48130

$3.97

14

.SPRING, FR

51171-08G00

Unavailable

15

.BOLT

51351-48000

Unavailable

16

.O RING

51181-25030

$5.10

17

CYLINDER

51146-08G00

Unavailable

18

.SPRING, REBOUND

51177-08G00

Unavailable

19

RING

51196-48000

$9.50

20

BOOT

51571-08G40

$59.52

21

BAND

51575-08G00

$9.50
