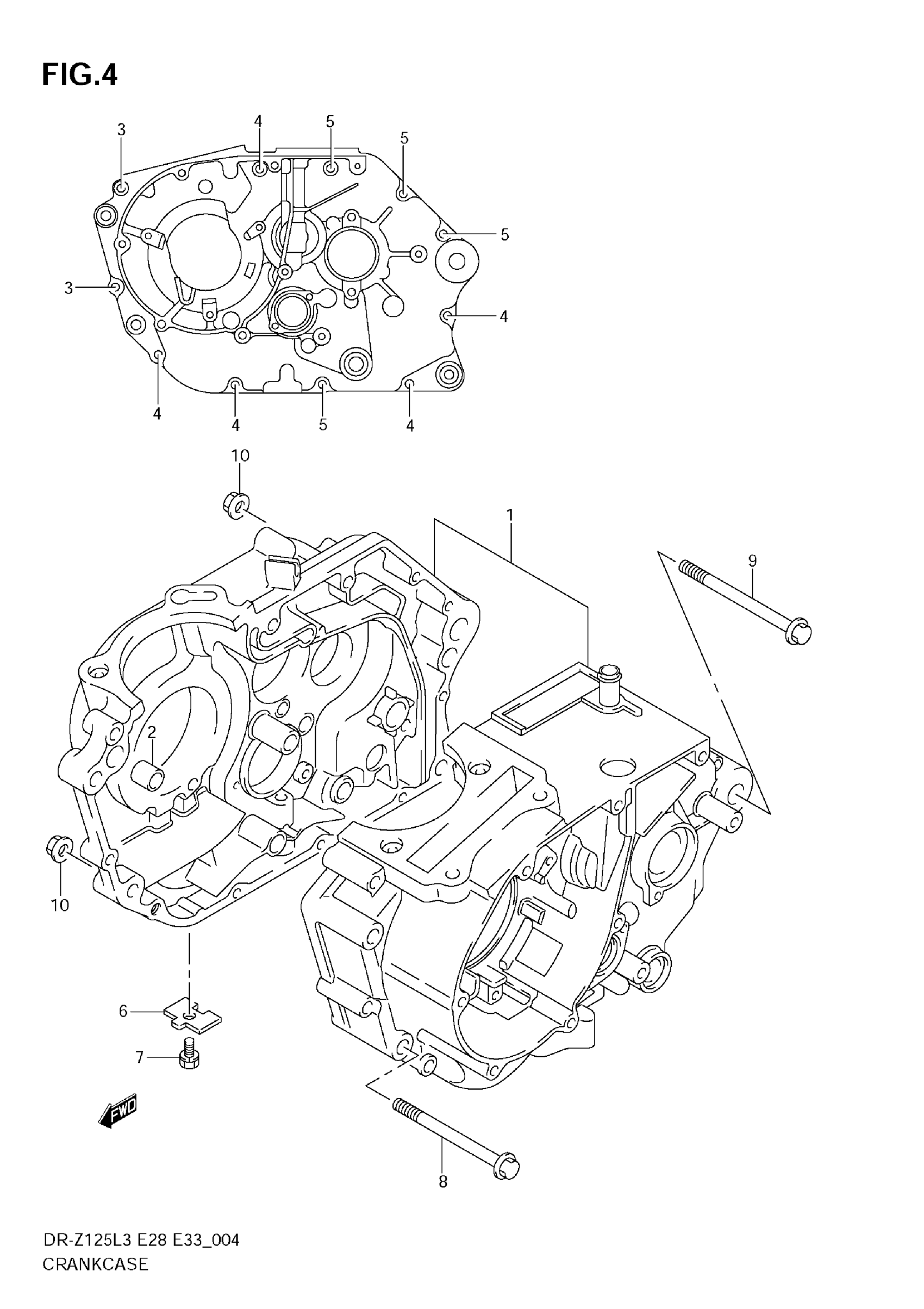

Suzuki DR-Z125L3 (2013) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

11300-08G20

Unavailable

2

KNOCK PIN

04211-13189

$2.19

3

BOLT

01547-0645A

$2.42

4

BOLT

01547-0660A

$2.82

5

BOLT

01547-0675A

$3.28

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.37

7

BOLT

01500-0610A

$2.23

8

BOLT (L:80)

09103-08016

$29.80

9

BOLT (L:88)

09103-08010

$31.68

10

NUT

08319-3108A

$2.32
