Description

Price

1

CLEANER ASSY, AIR This part replaces 13700-08G01.

13700-08G02

$209.77

2

.CAP, AIR CLEANER

13740-08G01

$23.64

3

GASKET

13746-08G00

$5.00

4

FILTER

13780-08G00

$36.50

5

.HOLDER, FILTER

13791-08G00

$12.30

6

WASHER, FILTER

13792-13A01

$4.34

7

BOLT, WING

13831-31G00

$8.07

8

.CLAMP, OUTLET TUBE

13826-14D01

$9.32

9

CLAMP (CARBURETOR SIDE)

09402-48208

$4.64

10

.TUBE, OUTLET This part replaces 13881-08G00.

13881-08G01

$41.93

11

.TUBE, BREATHER This part replaces 13853-08G00.

13853-08G01

$14.88

12

JOINT

13858-14D20

$7.22

13

CLIP

09401-14301

$2.35

14

.TUBE, INLET

13891-08G00

$29.33

15

.TRAP, FLAME

13810-03G00

$11.87

16

.CAP, DRAIN This part replaces 13681-19B00.

13681-19B01

$6.63

17

SCREW

02142-0516B

$1.93

18

NUT, AIR CLEANER

09148-06021

$3.56

19

BOLT, AIR CLEANER

01550-0612B

$2.39

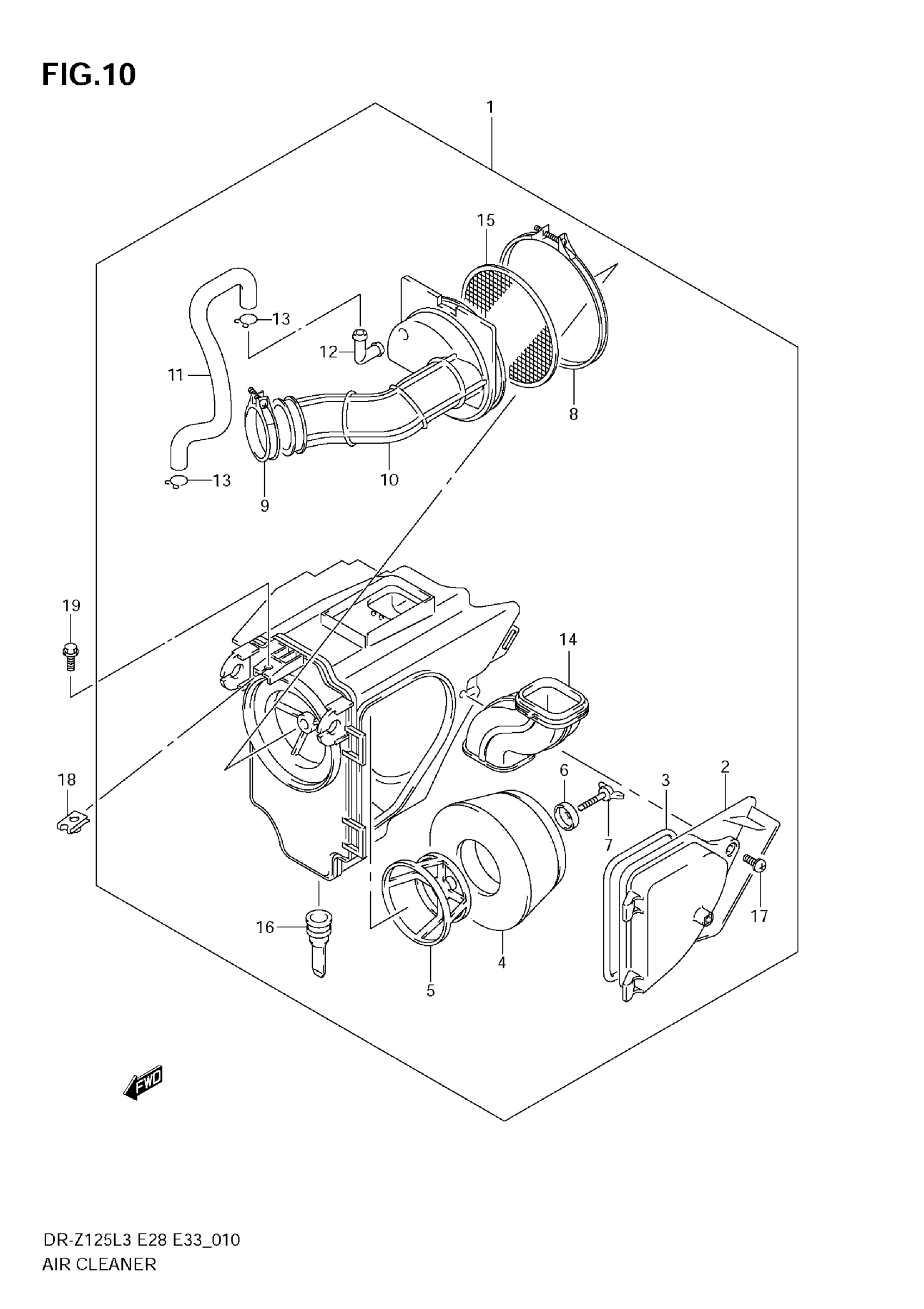

Suzuki DR-Z125L3 (2013) AIR CLEANER Diagram
