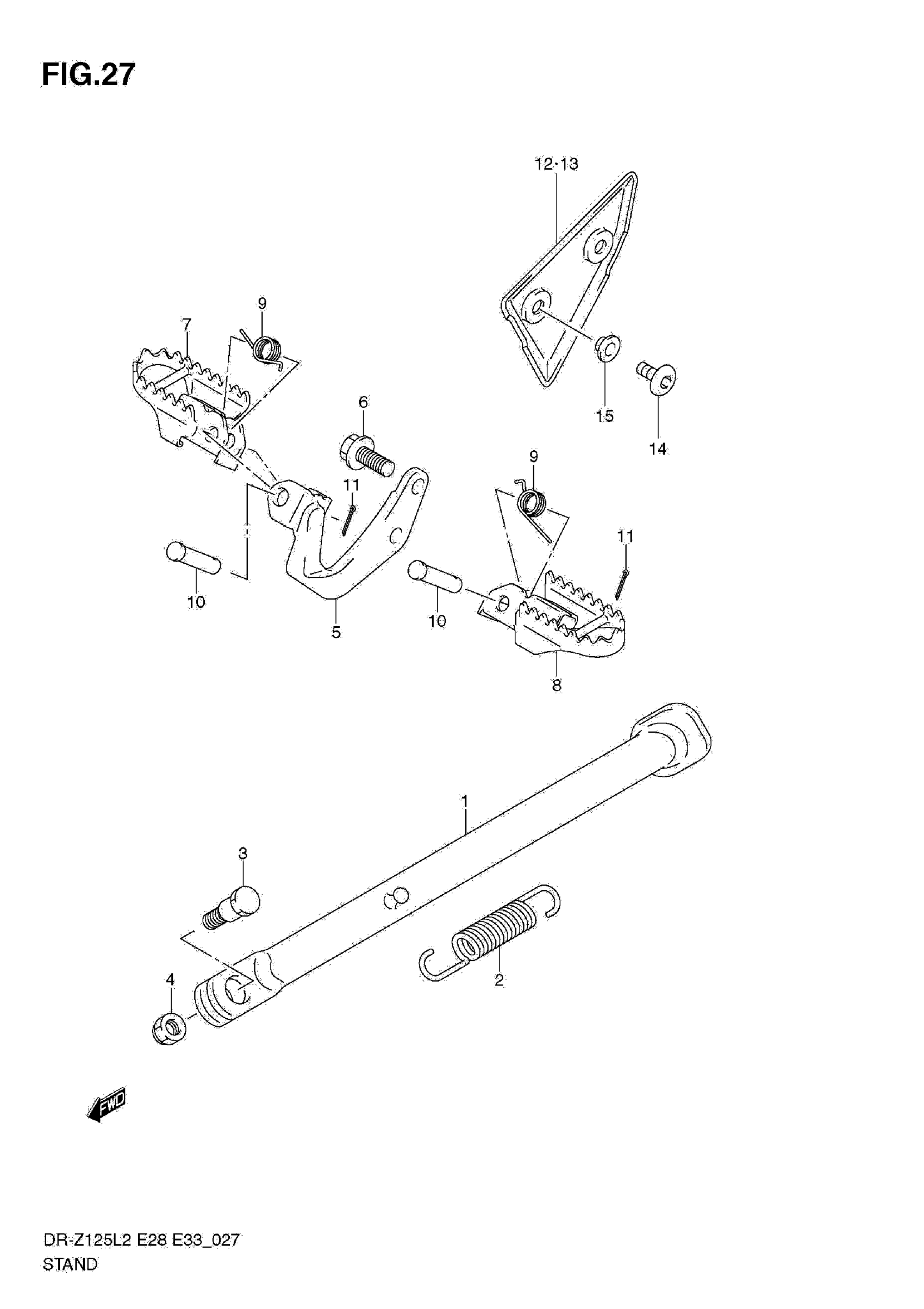

Suzuki DR-Z125L2 (2012) STAND (DR-Z125 E28) Diagram

#

Description
Price

1

STAND, PROP

42310-08G10

$71.50

2

SPRING

09443-17006

$4.64

3

BOLT (10X33)

09111-10060

$4.11

4

NUT, PROP STAND

42321-03FK0

$5.17

5

BRACKET, FR FOOTREST RH

43510-08G00

$99.25

6

BOLT

01550-1025B

$4.10

7

FOOTREST, FR RH (BLACK)

43550-03B00-019

$40.88

8

FOOTREST, FR LH (BLACK)

43560-03B00-019

$41.68

9

SPRING

09448-15004

$2.34

10

PIN

09200-10013

$2.66

11

COTTER PIN

04111-2015A

$1.49

12

GUARD, FR FOOTREST RH

43571-08G00

Unavailable

13

GUARD, FR FOOTREST LH

43572-08G00

Unavailable

14

SCREW (6X12)

09139-06115

$4.88

15

WASHER

09169-06071

$2.50
