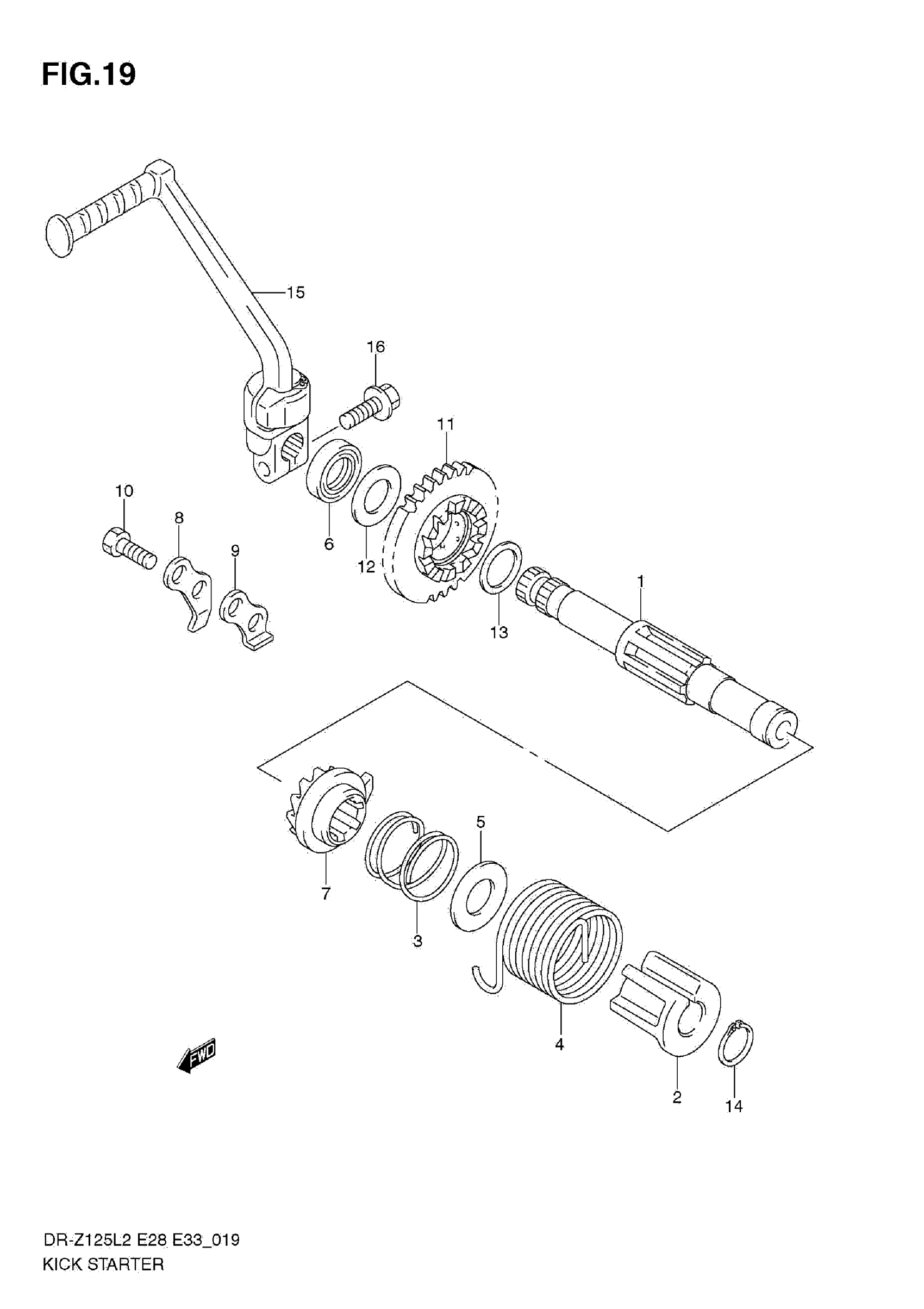

Suzuki DR-Z125L2 (2012) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER (NT:31) | NT:31

26211-05220

$100.70

2

GUIDE, KICK STARTER

26221-05200

$8.42

3

SPRING

09440-32006

$2.38

4

SPRING

09448-45003

$6.53

5

WASHER

08211-17341

$2.50

6

OIL SEAL (16X24X5)

09285-16003

$3.42

7

STARTER, KICK

26231-38202

$34.45

8

GUIDE, KICK STARTER

26232-38200

Unavailable

9

STOPPER, KICK STARTER

26233-32400

$5.40

10

BOLT This part replaces 09100-08240.

09100-08299

$4.17

11

GEAR, KICK STARTER DRIVE | NT:31

26240-05202

Unavailable

12

WASHER (16X30X1)

09160-16003

$2.92

13

WASHER (20X26X1.0)

09181-20139

$2.62

14

CIRCLIP This part replaces 08331-3117A.

08331-31179

$1.90

15

LEVER ASSY, KICK STARTER

26300-42A20

$94.64

16

BOLT

01500-0825B

$2.82
