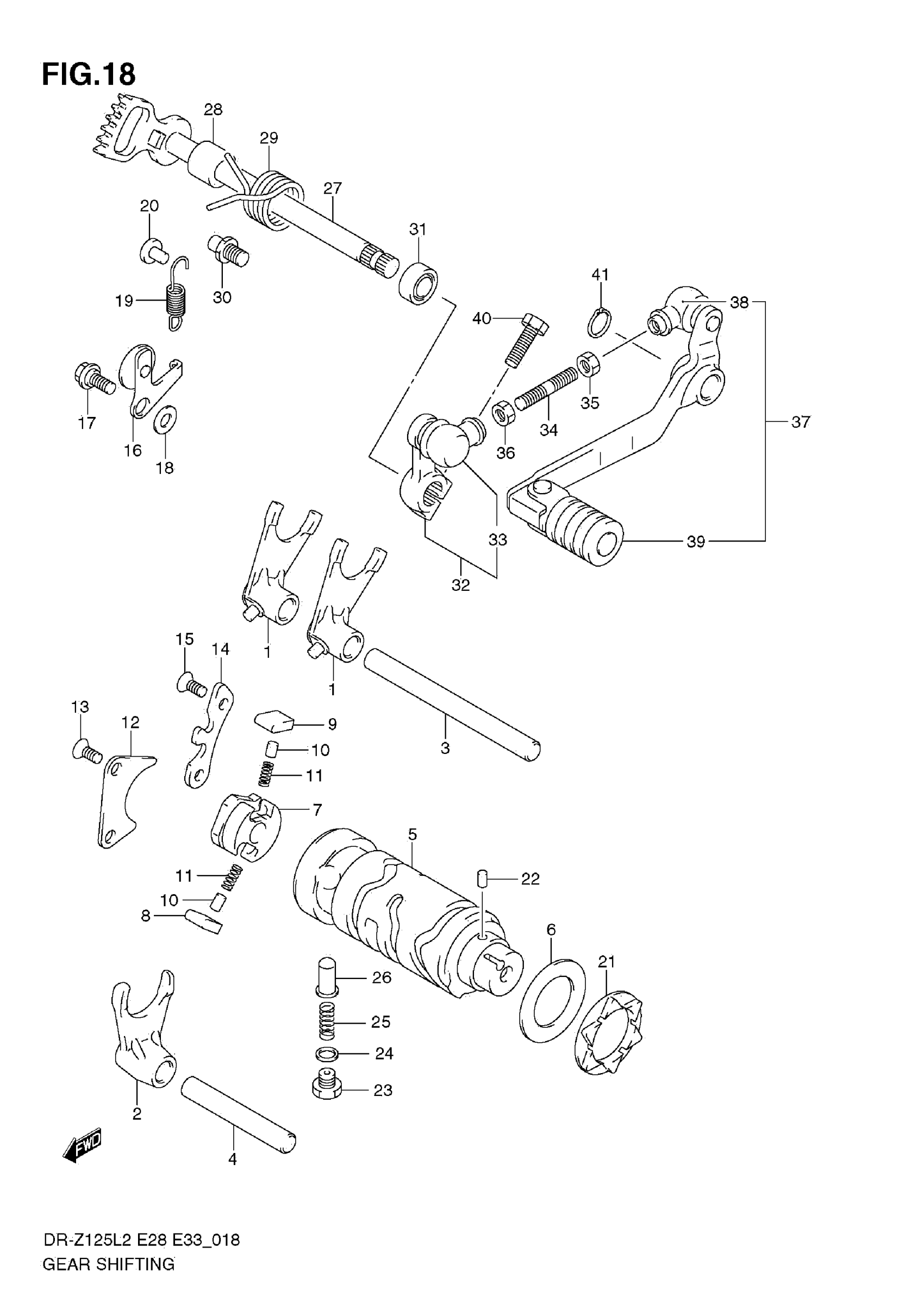

Suzuki DR-Z125L2 (2012) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.2

25221-08300

Unavailable

2

FORK, GEAR SHIFT NO.3

25231-05201

Unavailable

3

SHAFT, GEAR SHIFT FORK (L:109

25411-16701

$18.02

4

SHAFT, GEAR SHIFT FORK NO.2

25421-35420

Unavailable

5

CAM, GEAR SHIFT

25310-08G00

Unavailable

6

THRUST WASHER (25X40X1.0)

09181-25251

$3.87

7

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

ROLLER (5X8)

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, GR SHIFT POLE

25331-30001

Unavailable

13

SCREW (6X12)

09126-06011

$2.03

14

GUIDE, GEAR SHIFT CAM

25341-05200

Unavailable

15

SCREW (6X12)

09126-06011

$2.03

16

STOPPER, GEAR SHIFT CAM

25350-44A00

Unavailable

17

BOLT (6X14.6)

09111-06054

$3.70

18

WASHER

08211-06141

$1.59

19

SPRING

09443-08044

Unavailable

20

HOOK

09223-04001

$1.68

21

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$20.45

22

PIN

04221-04069

$2.12

23

PLUG

09247-14026

$3.76

24

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

25

SPRING

09440-11014

$1.78

26

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

27

SHAFT, GEAR SHIFTING

25510-05201

$90.20

28

SPACER (12X20X15.3)

09180-12068

$3.16

29

SPRING

09444-26001

$5.88

30

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

31

OIL SEAL (12X22X9)

09285-12006

$6.32

32

ARM, GEAR SHIFT LINK This part replaces 25520-08G00.

25520-08G01

$45.10

33

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

34

ROD, GEAR SHIFT LINK

25525-08G00

$7.12

35

NUT

09140-06025

$2.05

36

.NUT

08310-00067

$2.13

37

LEVER ASSY, GEAR SHIFT This part replaces 25600-08G00.

25600-08G01

$63.28

38

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

39

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$5.05

40

BOLT

01500-0620A

$1.78

41

CIRCLIP, GEAR SHIFT

08331-3112A

$1.78
