Description

Price

1

GASKET SET | OPT

11401-08810

$106.82

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-05202

$12.15

3

.GASKET, CYLINDER | NOT SHOWN

11241-05311

$5.62

4

.GASKET, CLUTCH COVER | NOT SHOWN

11482-05211

$12.83

5

.GASKET, MAGNETO COVER | NOT SHOWN

11483-05210

$7.57

6

.GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-32410

$2.74

7

.GASKET,EXHAUST | NOT SHOWN This part replaces 14181-14D00.

14181-18C00

$7.22

8

.CONNECTOR, MUFFLER | NOT SHOWN

14771-08G00

$19.38

9

GASKET (8.5X17X2.3) | NOT SHOWN

09168-08021

$2.61

10

GASKET (13.8X18.8X0.4) | NOT SHOWN

09168-14002

$2.26

11

.O RING (D:1.9,ID:8.6) | NOT SHOWN

09280-09005

$3.70

12

O RING (D:1.9,ID:13) | NOT SHOWN

09280-13004

$2.17

13

O RING (D:3.1,ID:6.8) | NOT SHOWN

09280-17003

$1.65

14

.O-RING (D:2.4,ID:21.8) | NOT SHOWN

09280-22001

$1.65

15

O RING (D:3.1,ID:22.7) | NOT SHOWN

09280-22008

$2.27

16

.O RING (D:3,ID:29.5) | NOT SHOWN

09280-30001

$1.72

17

O RING (D:2.4,ID:52.6) | NOT SHOWN

09280-54001

$3.76

18

.O RING (D:2.4,ID:60.5) | NOT SHOWN

09280-60005

$3.18

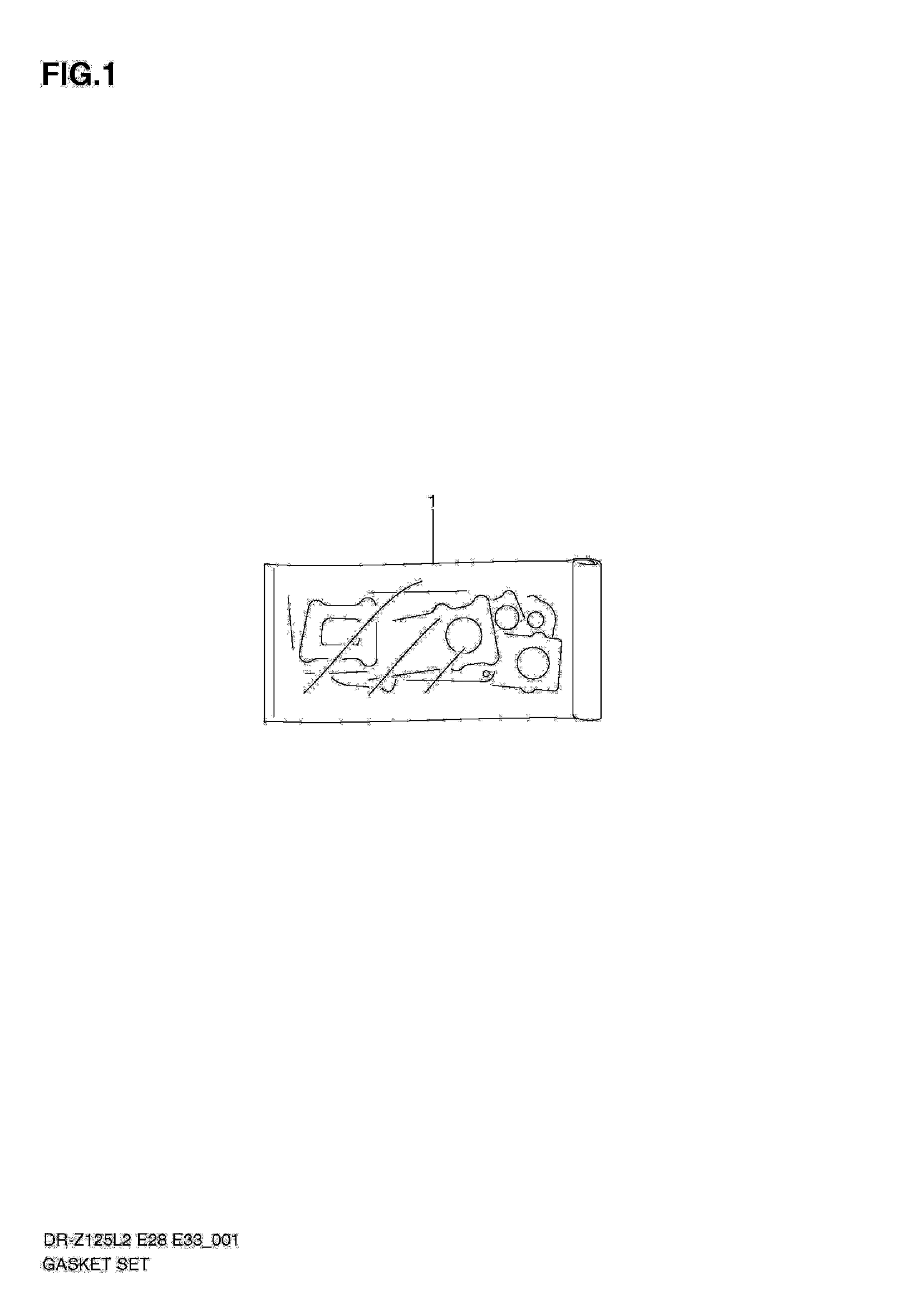

Suzuki DR-Z125L2 (2012) GASKET SET Diagram
