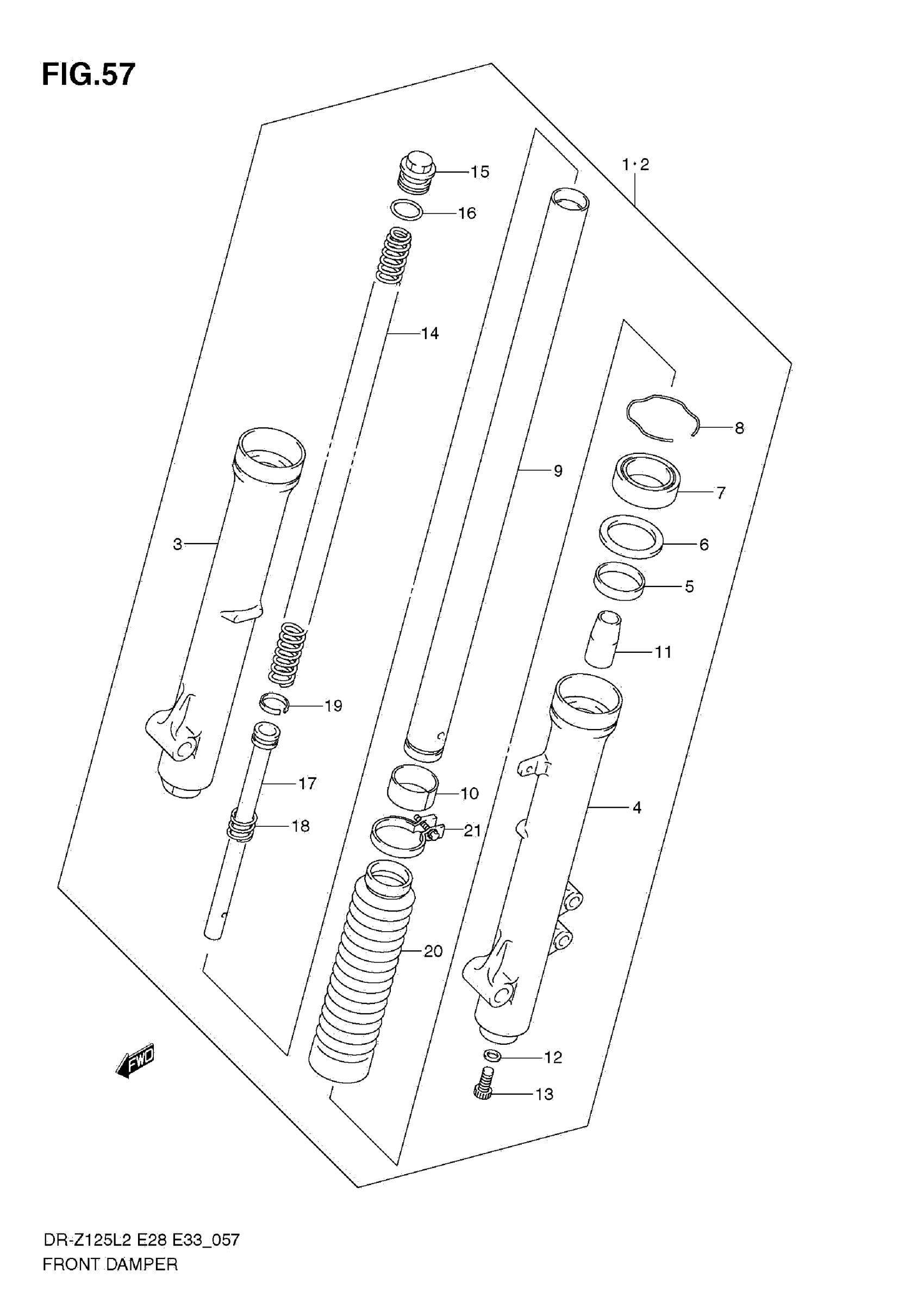

Suzuki DR-Z125L2 (2012) FRONT DAMPER (DR-Z125L E33) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-08G60

Unavailable

2

DAMPER ASSY, FRONT FORK LH

51104-08G60

Unavailable

3

.TUBE, OUTER RH

51130-08G10

Unavailable

4

.TUBE, OUTER LH

51140-08G10

Unavailable

5

.BUSH, GUIDE

51152-43EC0

$14.23

6

.SPACER, SEAL

51168-43EC0

$7.07

7

.OIL SEAL

51153-48420

$13.30

8

.OIL SEAL

51156-48730

$5.32

9

.TUBE, INNER

51110-08G00

Unavailable

10

BUSH,SLIDE This part replaces 51121-08G00.

51121-08G10

$17.69

11

.PIECE, OIL LOCK

51195-48000

Unavailable

12

GASKET

51148-36011

$3.56

13

BOLT, CENTER

51147-48130

$4.34

14

.SPRING, FR

51171-08G00

Unavailable

15

.BOLT

51351-48000

Unavailable

16

.O RING

51181-25030

$4.52

17

CYLINDER

51146-08G00

Unavailable

18

.SPRING, REBOUND

51177-08G00

Unavailable

19

RING

51196-48000

$8.42

20

BOOT

51571-08G40

$52.73

21

BAND

51575-08G00

$8.42
