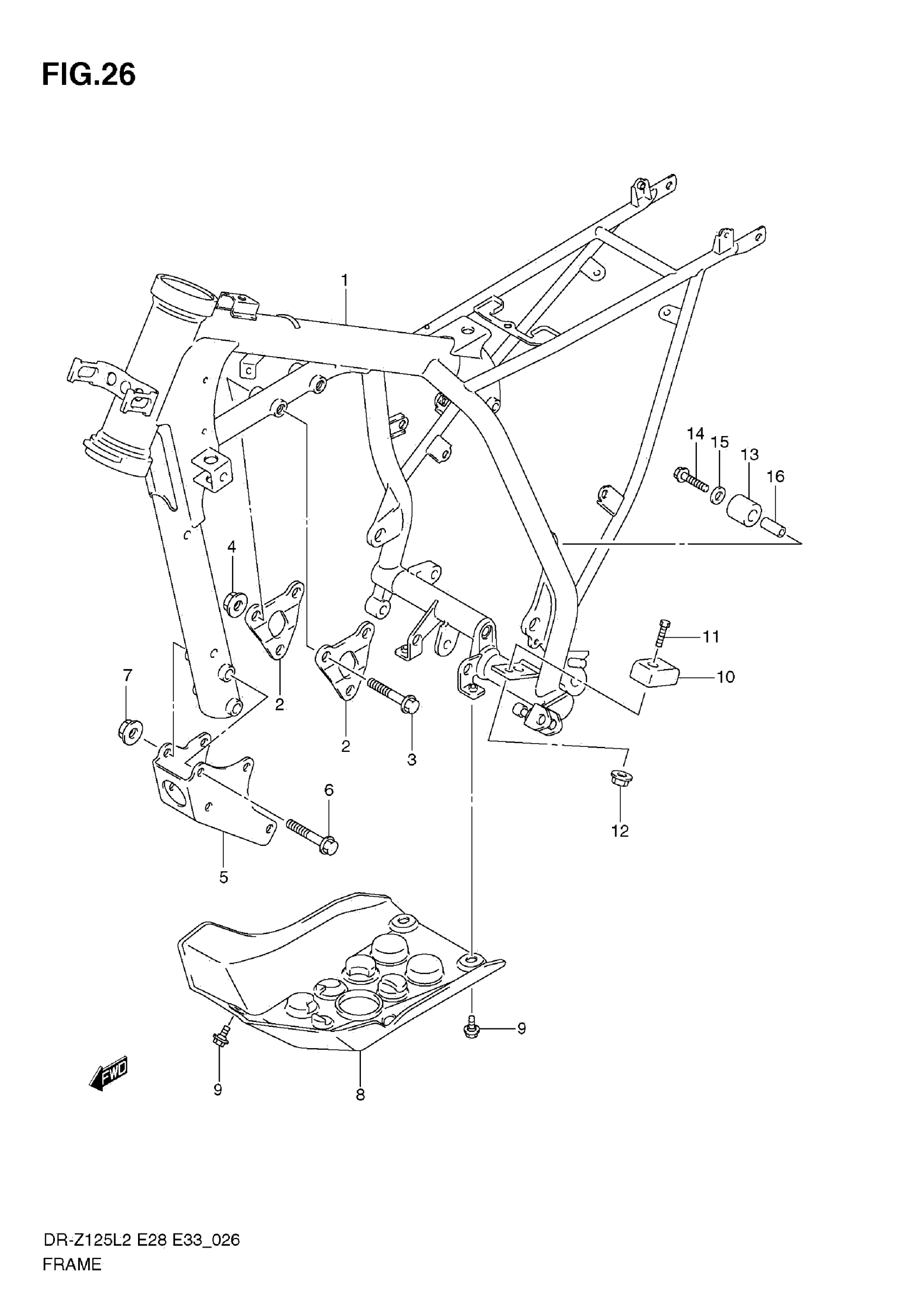

Suzuki DR-Z125L2 (2012) FRAME Diagram

#

Description
Price

1

FRAME (GRAY)

41100-08G11-YPT

$2,066.28

2

PLATE, ENG MTG UPR

41991-08G00

$12.82

3

BOLT, UPPER

09103-08332

$4.60

4

NUT

08319-3108A

$2.32

5

PLATE, ENG MTG LWR (GRAY)

41992-08G00-YPT

Unavailable

6

BOLT, LOWER

09103-08354

$3.57

7

NUT

08319-3108A

$2.32

8

PROTECTOR, ENGINE

42511-08G00

$52.33

9

BOLT

09111-06107

$2.60

10

GUIDE, CH LENGTH CONTROL LWR

43912-42A00

$27.97

11

BOLT, LOWER

09128-06088

Unavailable

12

NUT

08319-3106B

$2.45

13

ROLLER, CHAIN CONTROL UPR

43911-13E10

$26.68

14

BOLT (8X38)

09103-08178

$4.69

15

WASHER

08211-08201

$2.03

16

SPACER

09180-08215

$4.19
