2012 Suzuki DR-Z125L2 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2012 Suzuki DR-Z125L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

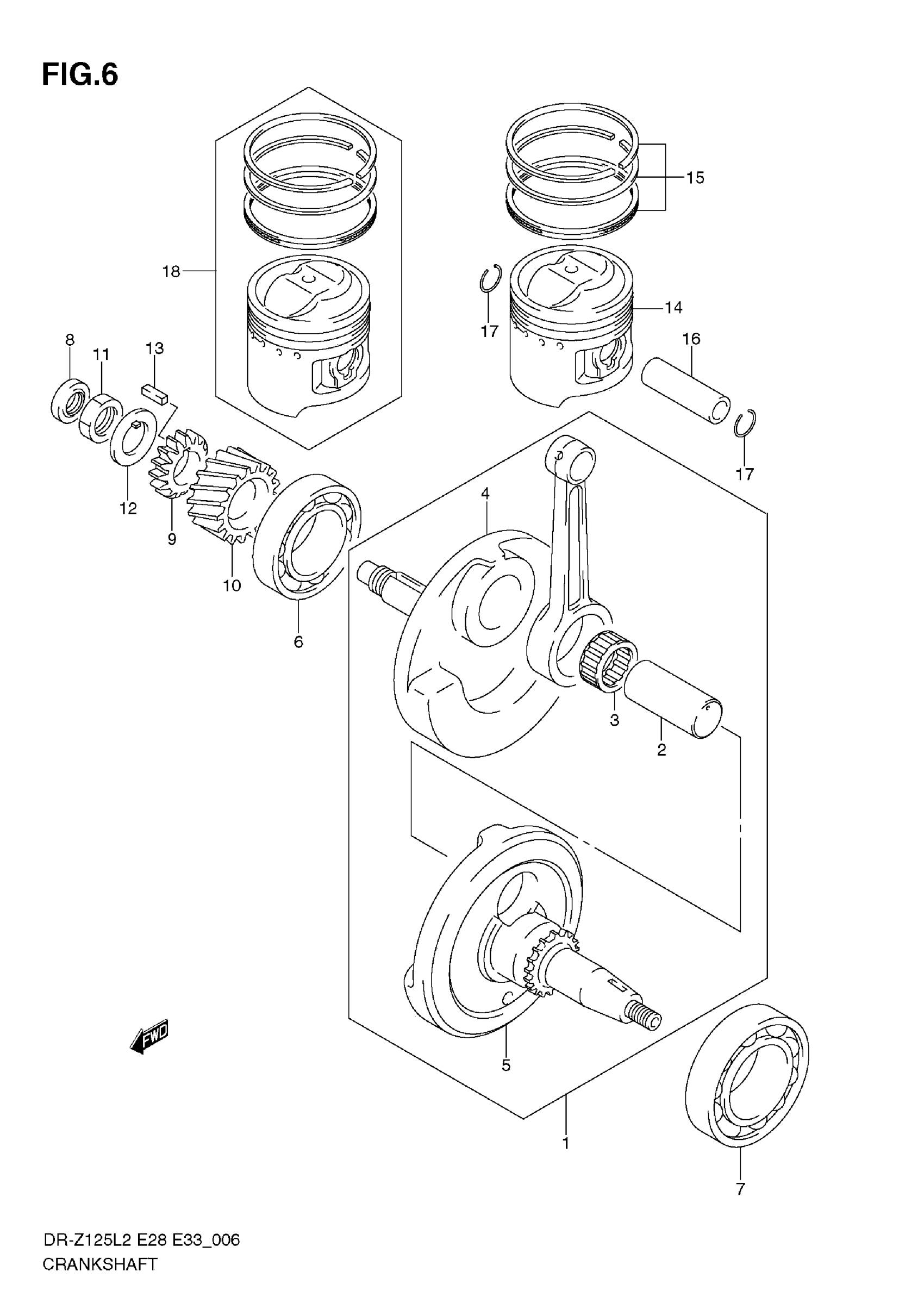

2012 Suzuki DR-Z125L2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-05240

1
Out of stock

2

.PIN, CRANK

12211-05231

1
Out of stock

3

BEARING (28X36X15.8)

09263-28027-0B0

1
Out of stock

4

.CRANKSHAFT RH

12221-05210

1
Out of stock

5

.CRANKSHAFT LH

12261-05210

1
Out of stock

6

BEARING, RH (28X68X18)

09262-28014

1
Out of stock

7

BEARING, LH (35X72X17)

09262-35038

1
Out of stock

8

OIL SEAL (12X21X7)

09282-12009

1
Out of stock

9

GEAR, OIL PUMP DRIVE (NT:15)

16321-05201

1
Out of stock

10

GEAR, PRIMARY DRIVE (NT:17)

21111-05200-0C0

1
Out of stock

11

NUT

09140-16019

1
Out of stock

12

WASHER

09166-16012

1
Out of stock

13

KEY

09421-04004

1
Out of stock

14

PISTON

12111-05202-0F0

1
Out of stock

15

RING SET, PISTON

12140-01410

1
Out of stock

16

PIN, PISTON This part replaces 12151-05220.

12151-05220-0A0

1
Out of stock

17

RING

09381-14001

2
Out of stock

18

PISTON SET (OS:0.5) | OPT

12100-05200-050

1
Out of stock
← Crankcase Cover Cylinder →
