2012 Suzuki DR-Z125L2 CAM Chain Diagram

← All diagrams

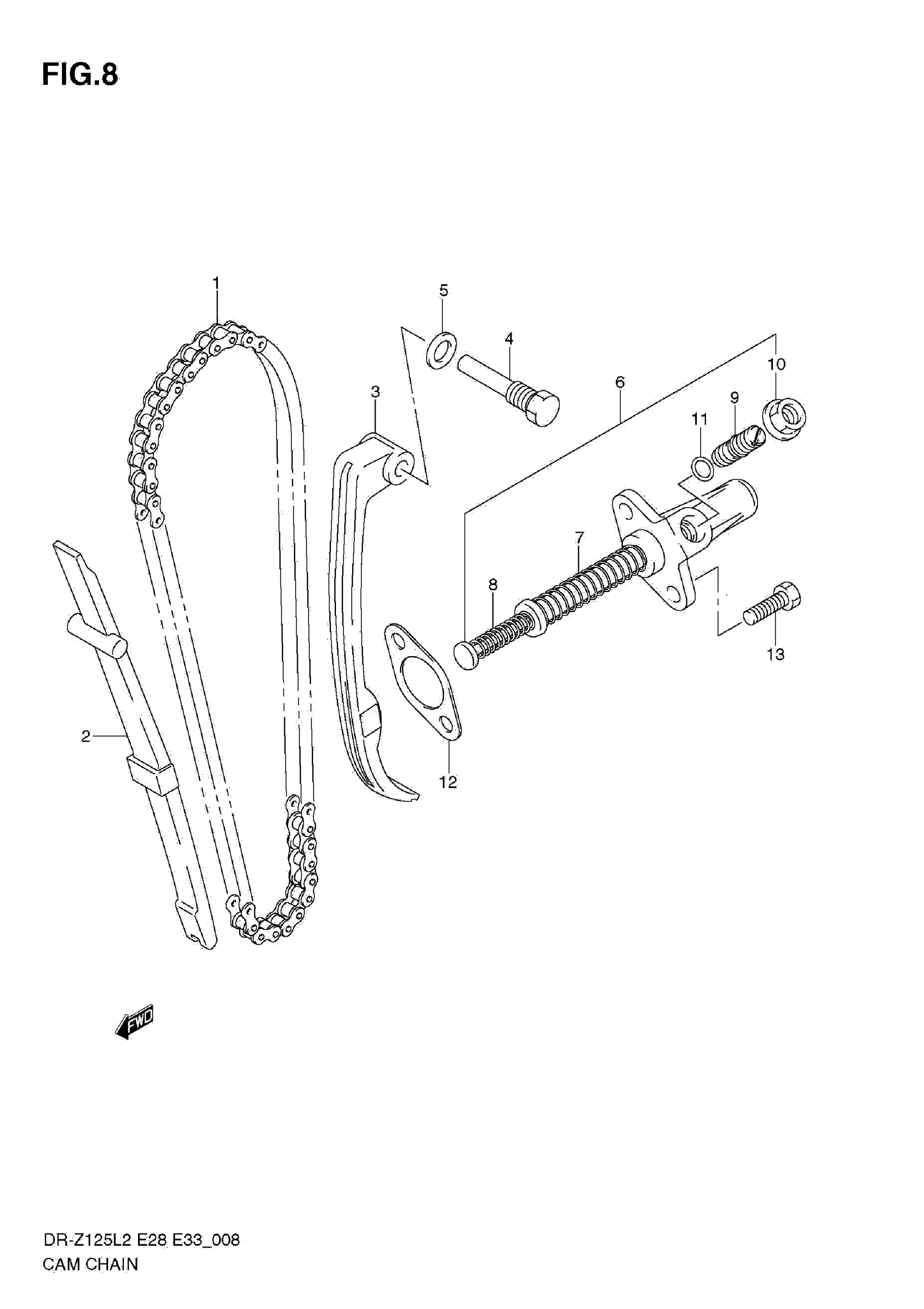

Find the part on the CAM Chain diagram for your 2012 Suzuki DR-Z125L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DR-Z125L2 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAMSHAFT DRIVE (98LE) | 98LE

12760-44A00

1
Out of stock

2

GUIDE, CAM CHAIN

12771-05200

1
Out of stock

3

TENSIONER, CAM CHAIN This part replaces 12811-05220.

12811-05221

1
Out of stock

4

BOLT, CAM CHAIN TENSIONER

12812-32400

1
Out of stock

5

GASKET (8.2X14X1)

09168-08016

1
Out of stock

6

ADJUSTER ASSY, TENSIONER

12830-05230

1
Out of stock

7

SPRING

09440-12030

1
Out of stock

8

SPRING

09440-08035

1
Out of stock

9

.BOLT, ADJUST

12838-08G00

1
Out of stock

10

NUT

08316-1008B

1
Out of stock

11

.O RING (D:1.9,ID:5.7)

09280-06005

1
Out of stock

12

.GASKET, TENSIONER ADJUSTER

12837-32410

1
Out of stock

13

BOLT

01547-0620A

2
Out of stock
