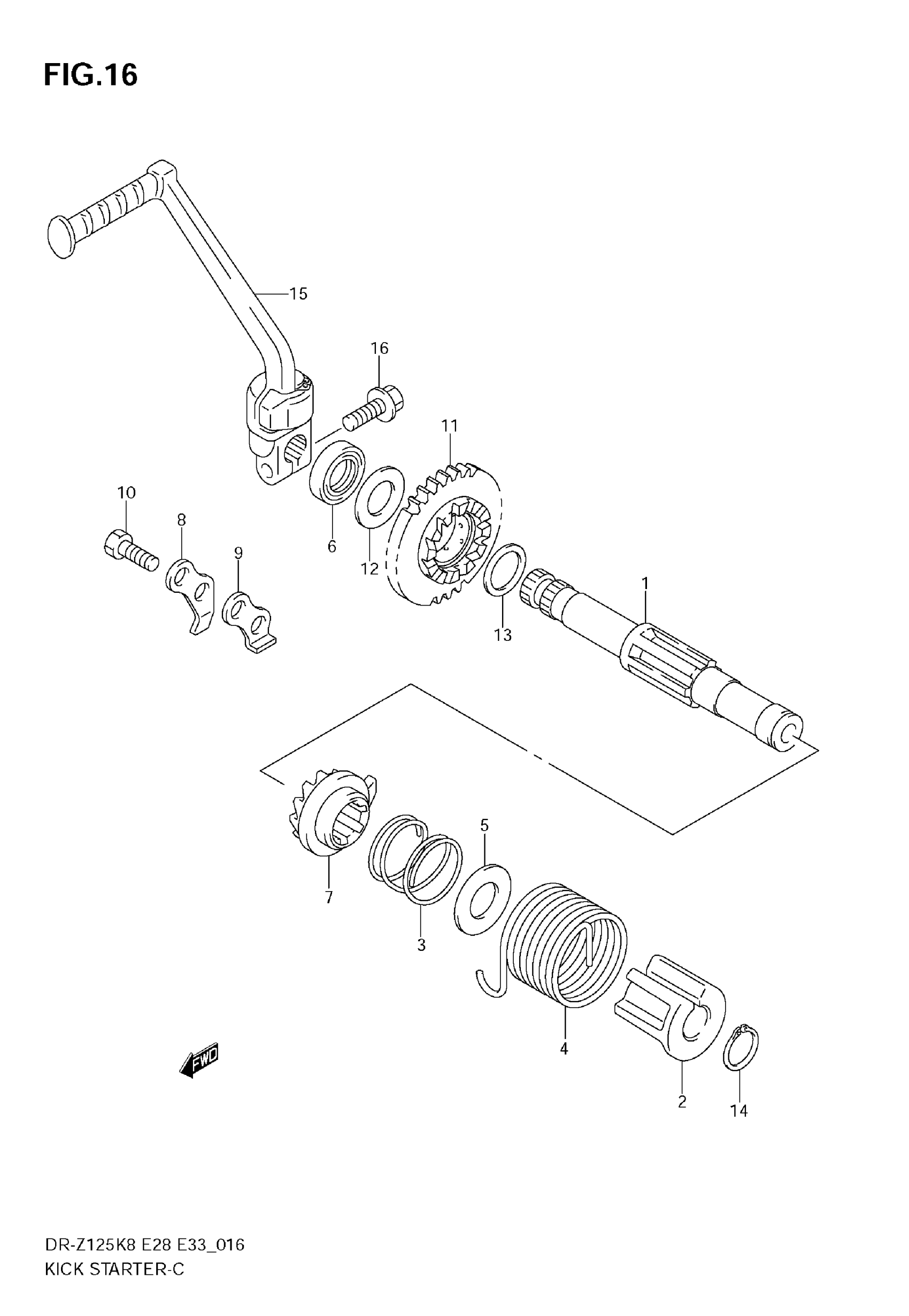

Find the part on the Kick Starter diagram for your 2009 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki DR-Z125 Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, KICK STARTER (NT:31) | NT:31

26211-05220

1
Out of stock

2

GUIDE, KICK STARTER

26221-05200

1
Out of stock

3

SPRING

09440-32006

1
Out of stock

4

SPRING

09448-45003

1
Out of stock

5

WASHER

08211-17341

1
Out of stock

6

OIL SEAL (16X24X5)

09285-16003

1
Out of stock

7

STARTER, KICK

26231-38202

1
Out of stock

8

GUIDE, KICK STARTER

26232-38200

1
Out of stock

9

STOPPER, KICK STARTER

26233-32400

1
Out of stock

10

BOLT This part replaces 09100-08240.

09100-08299

2
Out of stock

11

GEAR, KICK STARTER DRIVE | NT:31

26240-05202

1
Out of stock

12

WASHER (16X30X1)

09160-16003

1
Out of stock

13

WASHER (20X26X1.0)

09181-20139

1
Out of stock

14

CIRCLIP This part replaces 08331-3117A.

08331-31179

1
Out of stock

15

LEVER ASSY, KICK STARTER

26300-42A20

1
Out of stock

16

BOLT

01500-0825B

1

$3.07

In stock
