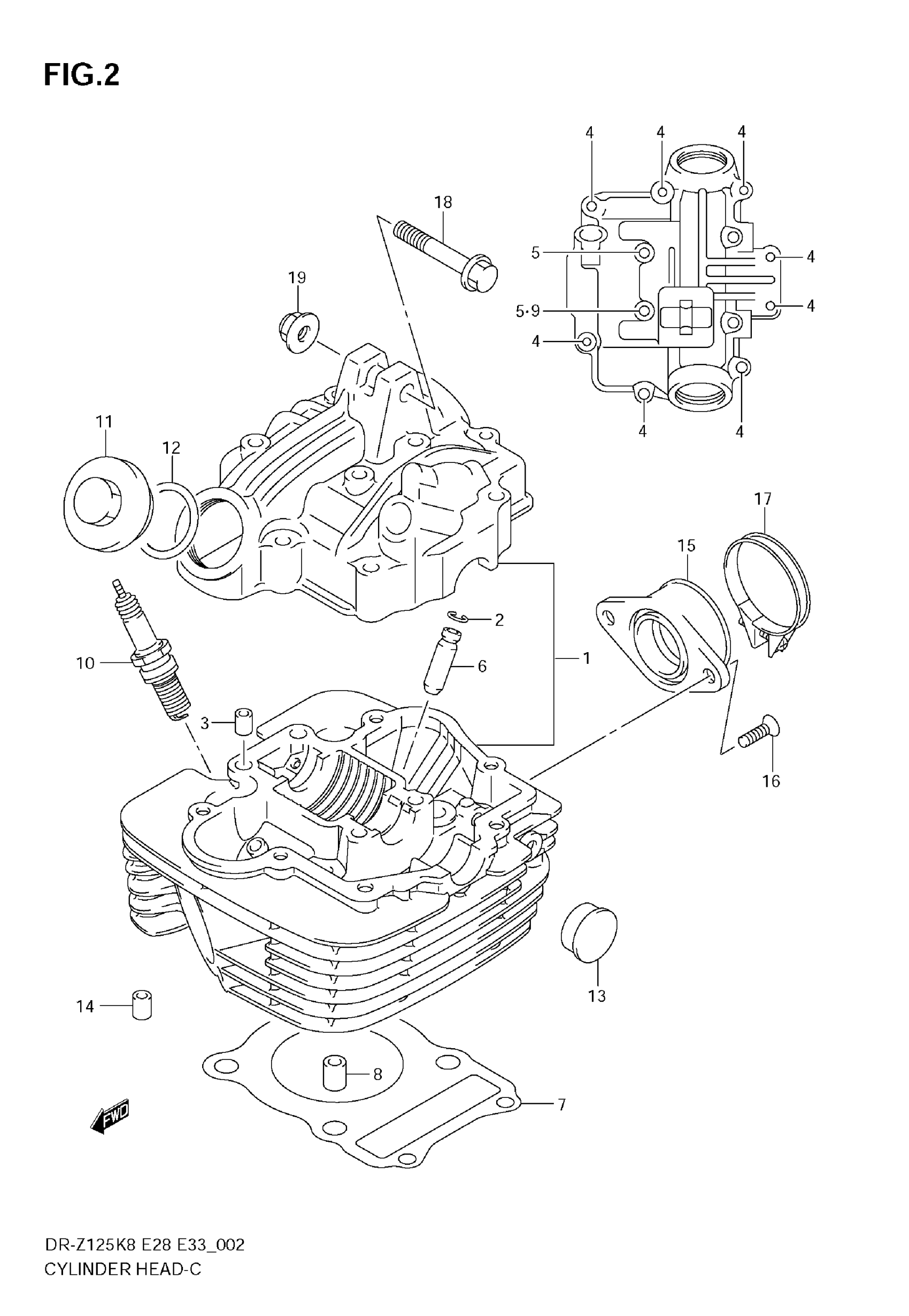

Suzuki DR-Z125 (2009) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 5

11100-08G00

$784.90

2

.RING (10X85)

09381-10004

$1.35

3

PIN

09206-08001

$1.77

4

BOLT

01550-0635B

$2.75

5

BOLT

01550-0660B

$3.22

6

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

$30.22

7

GASKET, CYLINDER HEAD

11141-05202

$11.44

8

KNOCK PIN

04211-11169

$1.77

9

GASKET

09168-06023

$2.01

10

SPARK PLUG (X24ESR-U)

09482-00223

$4.60

10

SPARK PLUG (DR8EA)

09482-00399

$2.95

11

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$11.16

12

.O RING (D:3,ID:29.5)

09280-30001

$1.70

13

PLUG

09241-22002

$4.73

14

PAD, RUBBER

11151-45000

$3.62

15

PIPE ASSY, INTAKE This part replaces 13101-08G00.

13101-08G01

$28.45

16

.SCREW

02112-0616B

$2.37

17

CLAMP

09402-46208

$4.19

18

BOLT (8X50)

09103-08081

$4.03

19

NUT

08319-3108A

$2.31
