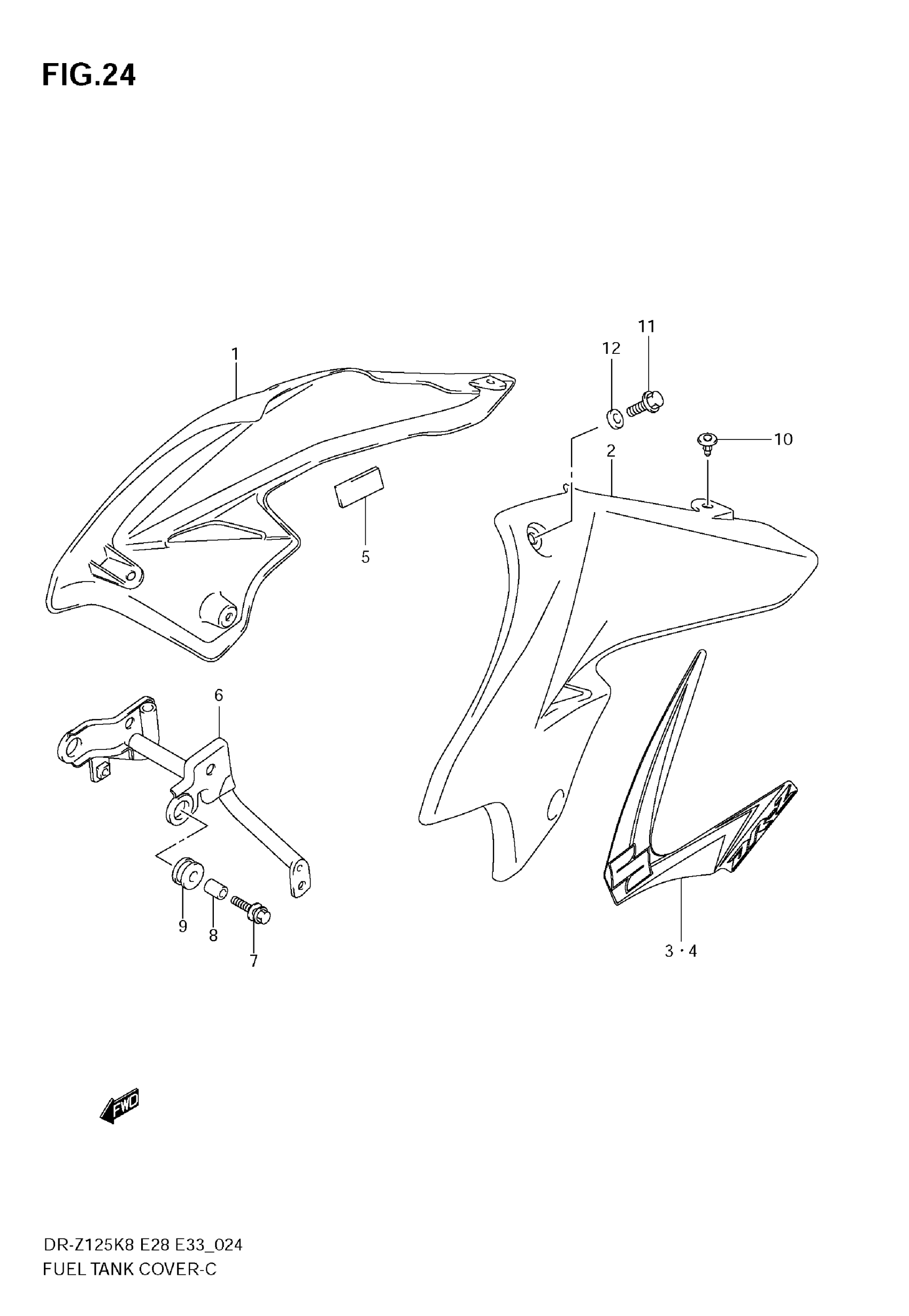

Suzuki DR-Z125 (2009) FUEL TANK COVER (MODEL K8) Diagram

#

Description
Price

1

COVER, FUEL TANK RH (YELLOW)

44271-08GA0-YU1

$57.33

1

COVER, FUEL TANK RH (BLACK)

44271-08GA0-019

$57.33

2

COVER, FUEL TANK LH (YELLOW)

44281-08GA0-YU1

$57.33

2

COVER, FUEL TANK LH (BLACK)

44281-08GA0-019

$57.33

3

TAPE, COVER RH | FOR YU1

68115-08GA0-EMA

Unavailable

3

TAPE, COVER RH | FOR 019

68115-08GA0-ESZ

Unavailable

4

TAPE, COVER LH | FOR YU1

68116-08GA0-EMA

Unavailable

4

TAPE, COVER LH | FOR 019

68116-08GA0-ESZ

Unavailable

5

CUSHION

44294-14H00

$3.33

6

BRACKET, FUEL TANK FR

44160-08GA0

Unavailable

7

BOLT, BRACKET

09116-06186

$2.61

8

SPACER

09180-06268

$2.19

9

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.86

10

CLIP (BLACK)

09409-08308-5ES

$1.97

11

BOLT

01547-0616A

$2.03

12

WASHER (6.3X16X1)

09169-06053

$1.49
