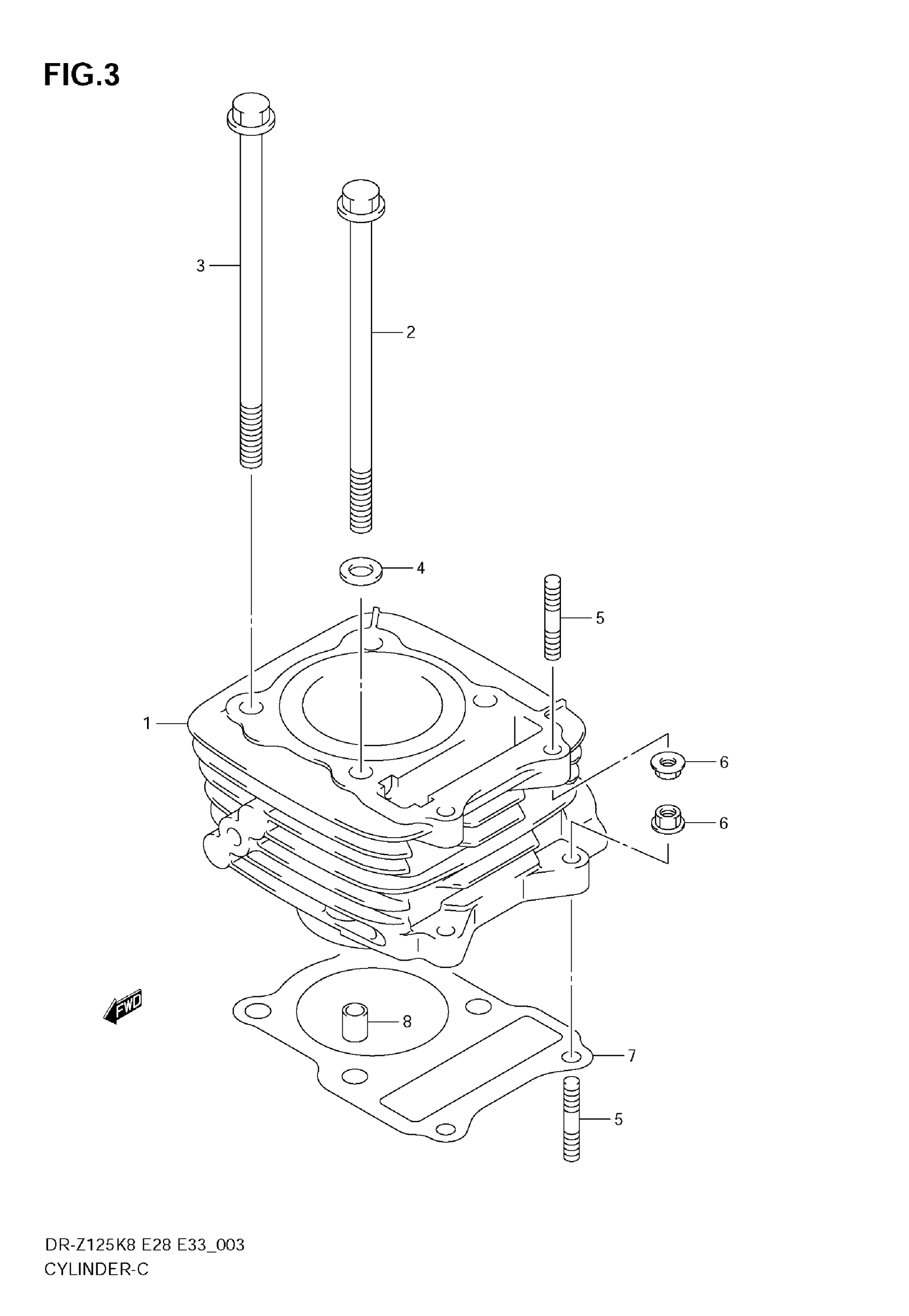

Suzuki DR-Z125 (2009) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11210-44A11-0F0

$474.13

2

STUD BOLT (L:155)

09103-08378

$7.55

3

STUD BOLT (L:165)

09103-08379

$6.42

4

GASKET (8.5X19X2.3)

09160-08039

$2.03

5

BOLT,STUD

01421-0625B

$2.30

6

NUT

08316-1006B

$2.50

7

.GASKET, CYLINDER

11241-05311

$5.62

8

KNOCK PIN

04211-11149

$1.78
