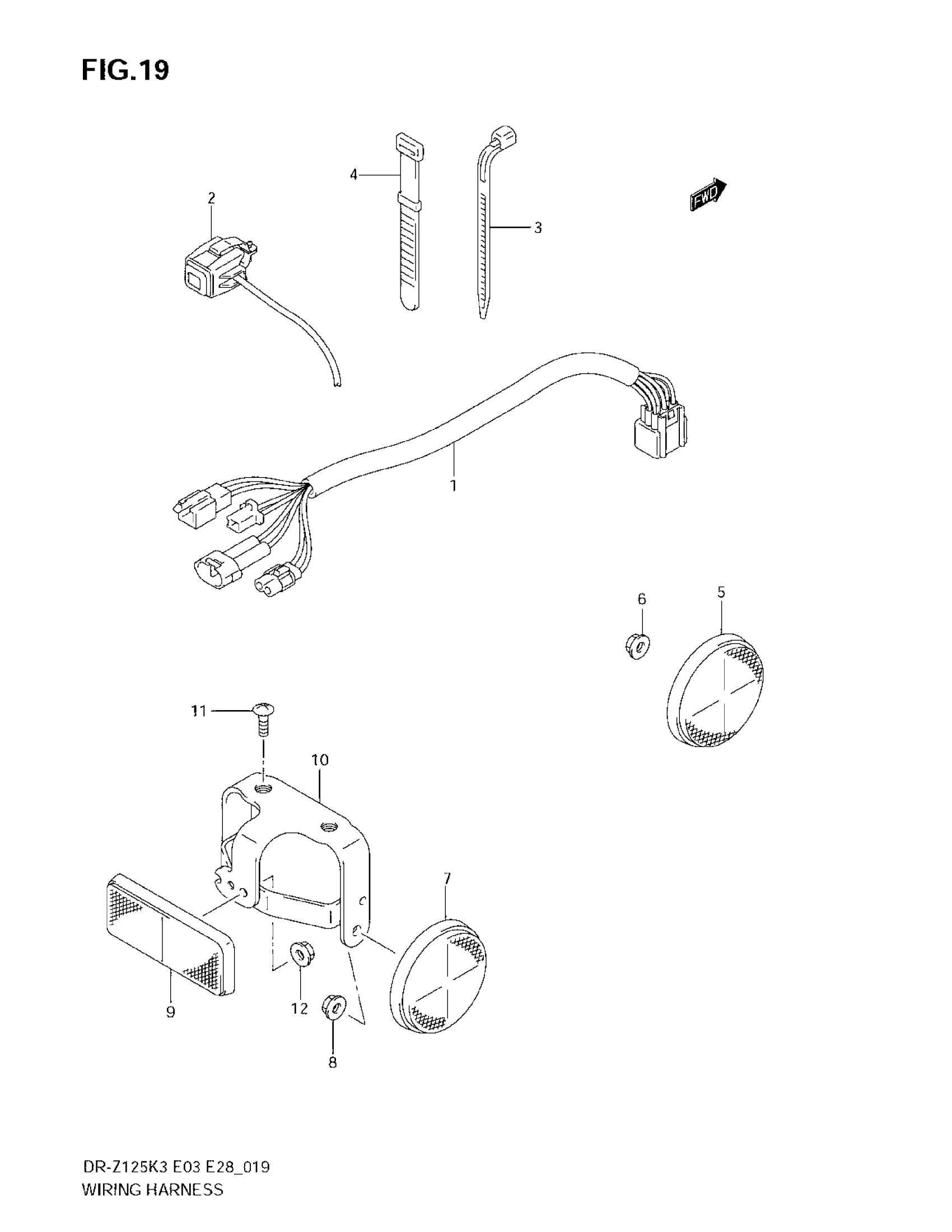

Find the part on the Wiring Harness diagram for your 2007 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z125 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING This part replaces 36610-08G00.

36610-08G01

1
Out of stock

2

SWITCH ASSY, ENGINE STOP

37820-08G00

1
Out of stock

3

CLAMP (L:165)

09407-18402

2
Out of stock

4

CLAMP (L:120)

09407-12402

1
Out of stock

5

2

$17.36

In stock

6

NUT | E28,MODEL K3 This part replaces 08316-10053.

08316-1005A

2
Out of stock

7

2

$50.29

In stock

8

NUT | E28 This part replaces 08316-10053.

08316-1005A

2
Out of stock

9

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

1
Out of stock

10

BRACKET, SIDE & RR | E28

35974-08G00

—
Out of stock

11

2

$1.35

In stock

12

NUT | E28 This part replaces 08316-10053.

08316-1005A

1
Out of stock
