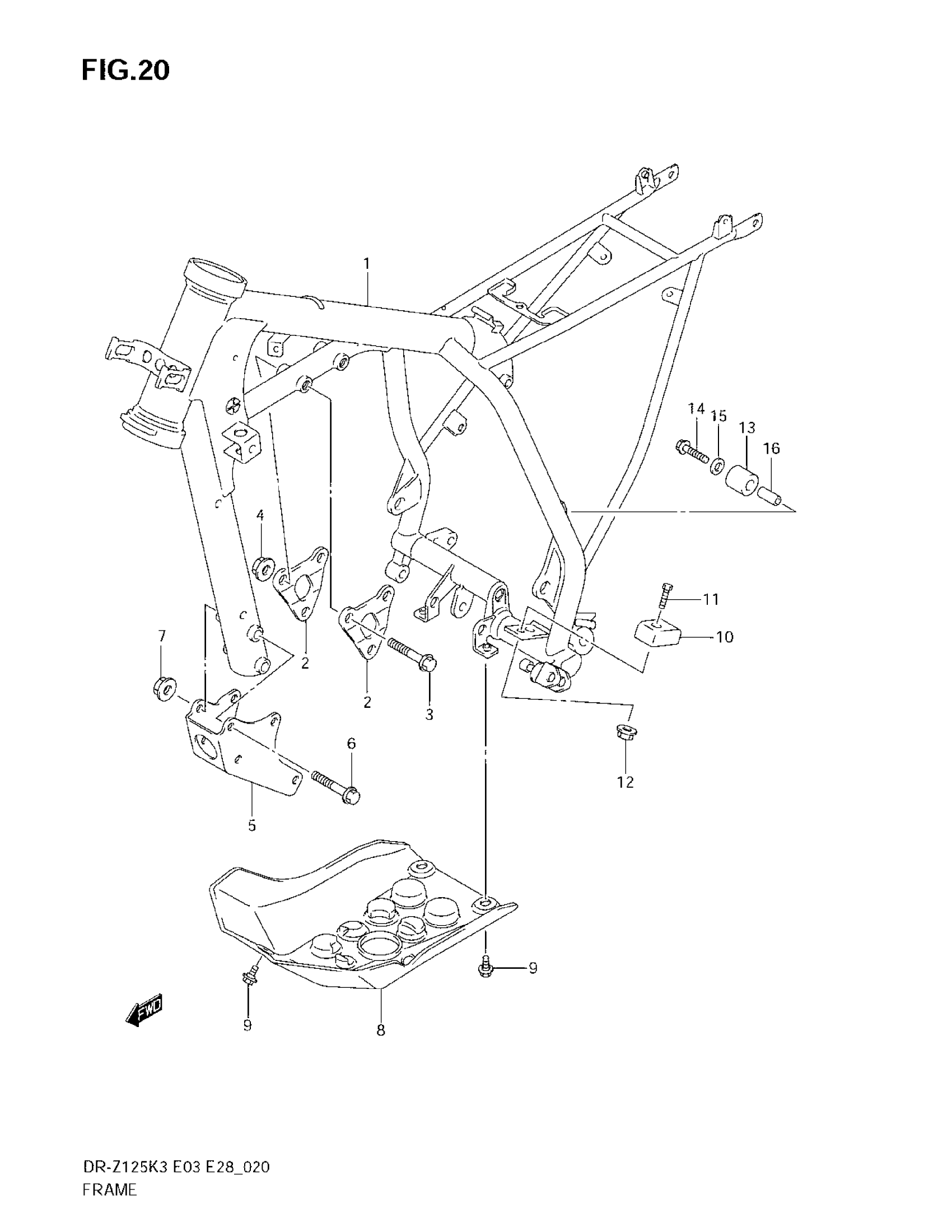

Suzuki DR-Z125 (2007) FRAME Diagram

#

Description
Price

1

FRAME (GRAY)

41100-08G00-YU8

Unavailable

2

PLATE, ENG MTG UPR

41991-08G00

$14.47

3

BOLT, UPPER

09103-08332

$5.00

4

NUT This part replaces 08319-31088.

08319-3108A

$2.31

5

PLATE, MOUNT LOWER (GRAY)

41992-08G00-YU8

Unavailable

6

BOLT, LOWER

09103-08354

$3.88

7

NUT This part replaces 08319-31088.

08319-3108A

$2.31

8

PROTECTOR, ENGINE

42511-08G00

$59.07

9

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

10

GUIDE, CH LENGTH CONTROL LWR

43912-42A00

$31.55

11

BOLT, LOWER

09128-06049

Unavailable

12

NUT This part replaces 08319-31063.

08319-3106A

$2.01

13

ROLLER, CHAIN CONTROL UPR

43911-13E10

$30.12

14

BOLT

09103-08178

$4.29

15

WASHER

08211-08201

$2.06

16

SPACER

09180-08215

$3.84
