Description

Price

1

HUB, RR WHEEL

64110-08G10

$481.73

2

TIRE, REAR (90/100-16 52M) This part replaces 65110-08G10.

65110-08G20

$182.02

3

TUBE ASSY, WHEEL INNER This part replaces 65200-08G10.

65200-08G11

$46.33

4

PROTECTOR, WHEEL INNER TUBE This part replaces 65261-08G10.

65261-08G30

$7.23

5

RIM, RR WHEEL (16X1.60)

65311-08G30

$363.38

6

SPOKE SET, RR WHEEL

65320-08G30

$60.48

7

SPACER (12.5X19X95.5)

09180-12151

$12.43

8

BEARING This part replaces 08143-62017.

08143-6201B

$9.89

9

BEARING This part replaces 08123-63017.

08123-6301B

$12.72

10

OIL SEAL (20X37X7)

09283-20025

$5.17

11

PANEL, RR BRAKE ANCHOR

64210-08G00

$202.30

12

SHOE SET, BRAKE

54401-43840

$29.12

13

.SPRING (L:37.8)

09443-07044

$2.80

14

CAM, RR BRAKE

64441-13G00

$27.37

15

O RING (D:2.5,ID:13.8)

09280-14011

$4.30

16

PLATE, BRAKE LINING INDICATOR

54492-13G00

$5.80

17

LEVER, RR BRAKE CAM

64451-08G00

$30.45

18

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

19

NUT This part replaces 08316-10063.

08316-1006B

$2.50

20

SPROCKET, RR (NT:57)

64511-08G10

$78.00

21

SCREW

09120-08010

$2.39

22

NUT This part replaces 08319-31088.

08319-3108A

$2.31

23

AXLE, REAR

64711-08G10

$37.68

24

SPACER, RR AXLE

64751-08G00

$13.14

25

NUT

09159-12027

$14.35

26

PIN This part replaces 04111-25308.

04111-2530A

$1.58

27

STOPPER, BEAD (1.6)

65270-08G00

$61.78

28

NUT This part replaces 08310-00083.

08310-0008A

$1.86

29

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

30

ROD ASSY, RR BRAKE | Includes Item(s) 31 - 36

43300-08G10

$16.73

31

SPRING

09440-09004

$2.06

32

PIN

09209-11002

$2.17

33

NUT

09144-06005

$4.12

34

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.83

35

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

36

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

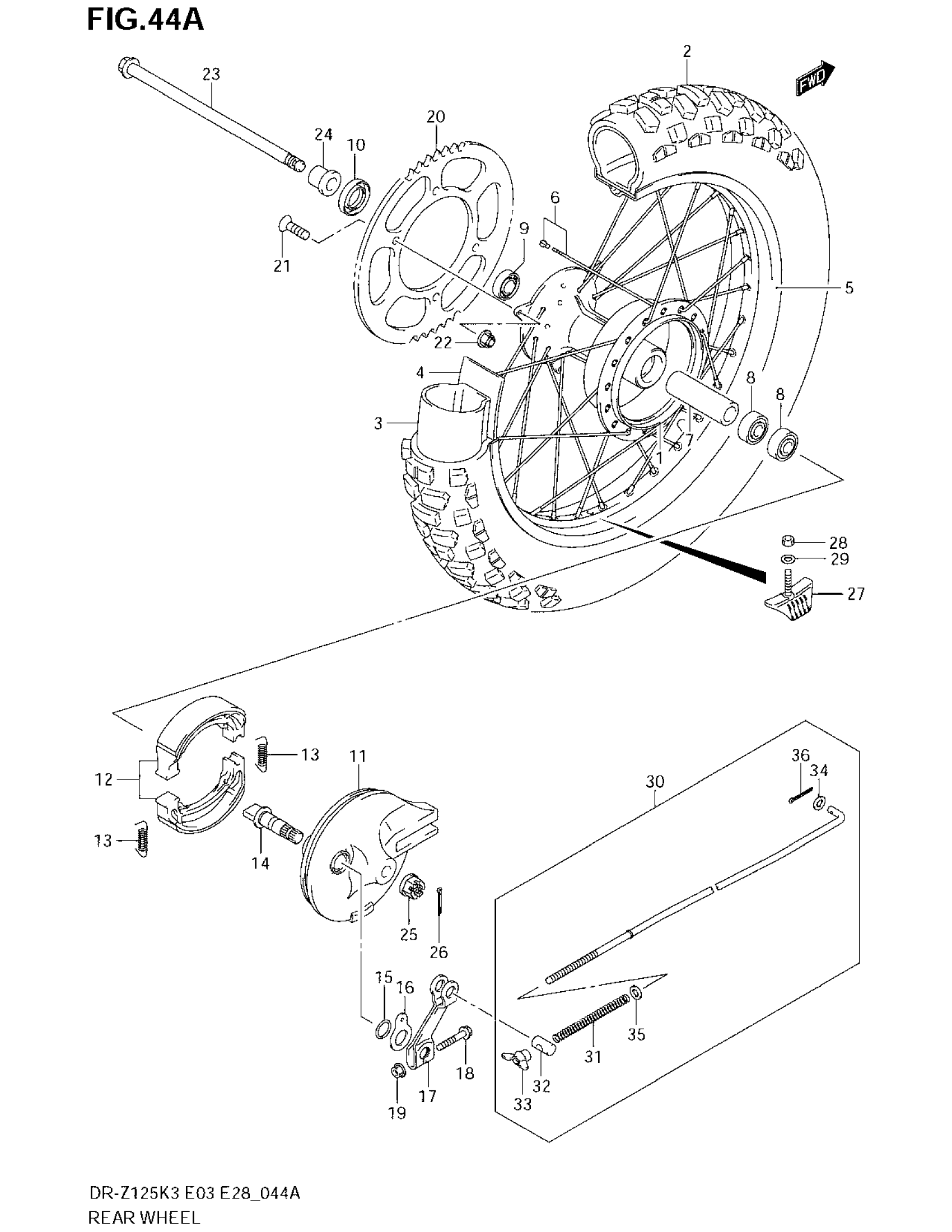

Suzuki DR-Z125 (2007) REAR WHEEL (DR-Z125LK4/LK5/LK6/LK7) Diagram
