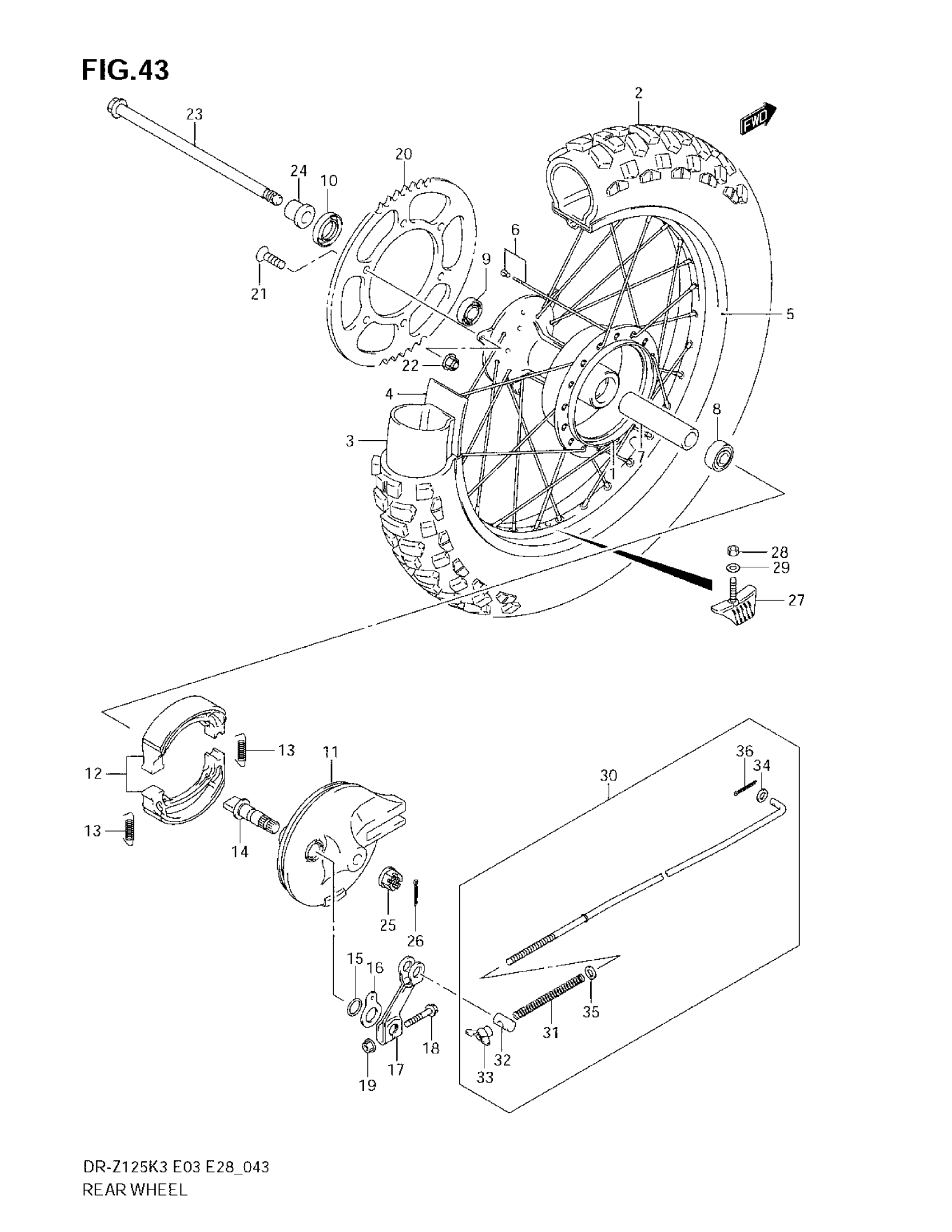

Description

Price

1

HUB,REAR WHEEL This part replaces 64110-08G00.

64110-08G01

$456.48

2

TIRE, RR (90/100-14 49M)

65110-08G00

$129.55

3

TUBE ASSY, WHEEL INNER This part replaces 65200-08G00.

65200-08G01

$25.98

4

PROTECTOR, WHEEL INNER TUBE This part replaces 65261-08G00.

55261-09D00

$4.70

5

RIM, REAR WHEEL (14X1.60)

65311-08G00

Unavailable

6

SPOKE SET, REAR WHEEL

65320-08G00

Unavailable

7

SPACER (12.5X19X105.5)

09180-12148

$11.43

8

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

9

BEARING This part replaces 08123-63017.

08123-6301B

$14.10

10

OIL SEAL (20X37X7)

09283-20025

$5.64

11

PANEL, RR BRAKE ANCHOR

64210-08G00

$180.10

12

SHOE SET, BRAKE

54401-43840

$32.74

13

.SPRING (L:37.8)

09443-07044

$3.04

14

CAM, RR BRAKE

64441-13G00

$24.25

15

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

16

PLATE, BRAKE LINING INDICATOR

54492-13G00

$5.13

17

LEVER, RR BRAKE CAM

64451-08G00

$27.17

18

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

19

NUT This part replaces 08316-10063.

08316-1006B

$2.50

20

SPROCKET, RR (NT:51)

64511-08G00

$61.40

21

SCREW

09120-08010

$2.36

22

NUT

08319-31087

$2.32

23

AXLE, REAR

64711-08G10

$41.17

24

SPACER, RR AXLE

64751-08G00

$13.95

25

NUT

09159-12027

$15.67

26

PIN This part replaces 04111-25308.

04111-2530A

$1.49

27

STOPPER, BEAD (1.6)

65270-08G00

$54.75

28

NUT This part replaces 08310-00083.

08310-0008A

$1.84

29

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

30

ROD ASSY, RR BRAKE | Includes Item(s) 31 - 36

43300-08G00

$18.20

31

SPRING

09440-09004

$2.20

32

PIN

09209-11002

$2.19

33

NUT

09144-06005

$3.78

34

WASHER, FRONT This part replaces 08322-01053.

08322-0105A
