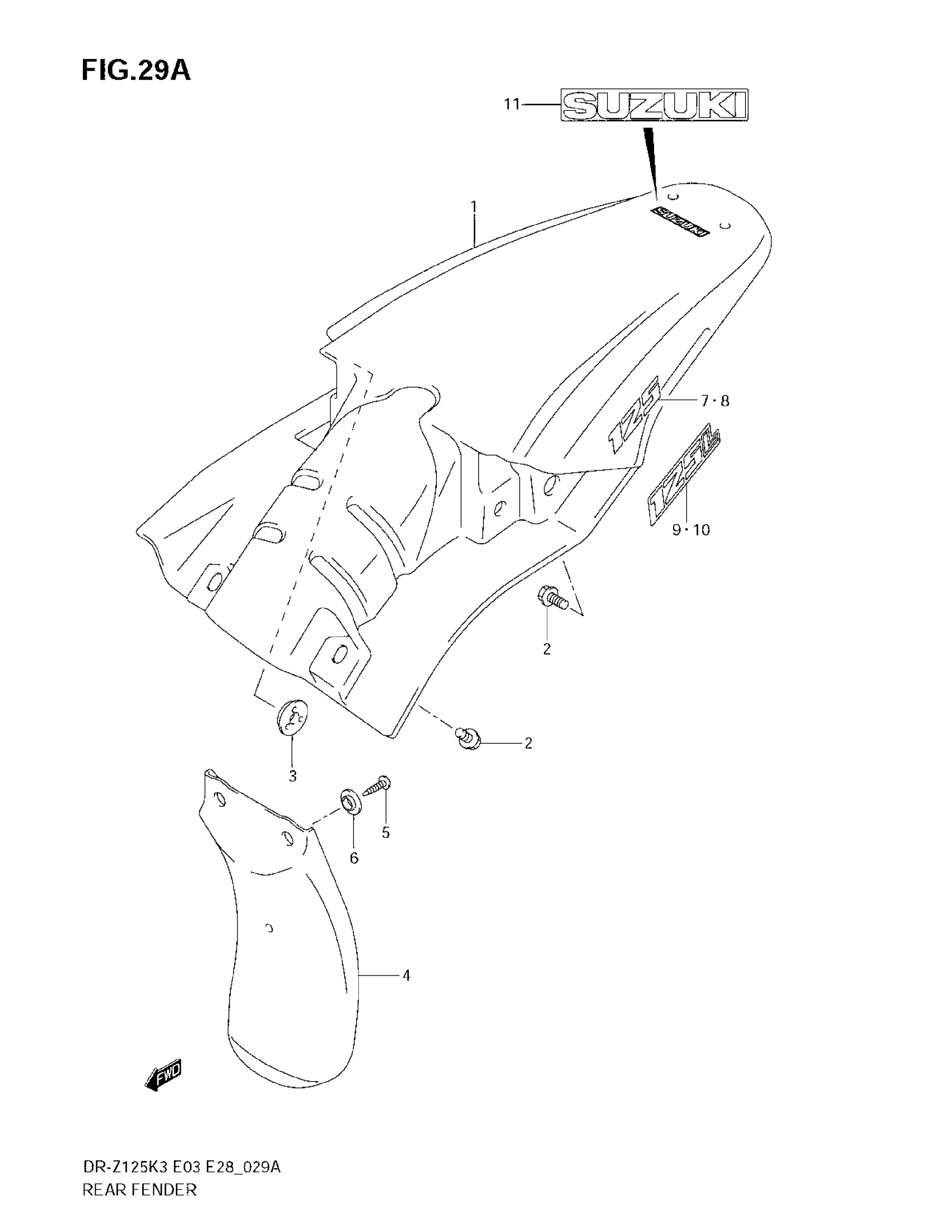

Suzuki DR-Z125 (2007) REAR FENDER (MODEL K4/K5/K6) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) | E33

63113-08G00-YU1

$105.15

1

FENDER, REAR (BLUE) | MODEL K5/K6 E33 FOR HU8

63113-08G00-YJ4

$131.22

1

FENDER, REAR (YELLOW) | E28

63113-08G10-YU1

Unavailable

1

FENDER, REAR (BLUE) | MODEL K5/K6 E28 FOR HU8

63113-08G10-YJ4

Unavailable

2

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

3

WASHER, RH

09169-08045

$2.23

4

MUDGUARD, RR FENDER FR

63411-29F00

$24.30

5

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

6

WASHER This part replaces 09169-06045.

09169-06055

$2.27

7

EMBLEM, RH | DR-Z125K4

68171-08G00-GY8

Unavailable

7

EMBLEM, RH | DR-Z125K5 FOR YU1

68171-08G20-GY8

Unavailable

7

EMBLEM, RH | DR-Z125K6 FOR YU1

68171-08G20-CLM

Unavailable

7

EMBLEM, RH | DR-Z125K5/K6 FOR HU8

68171-08G20-HU8

Unavailable

8

EMBLEM, LH | DR-Z125K4

68172-08G00-GY8

Unavailable

8

EMBLEM, LH | DR-Z125K5 FOR YU1

68172-08G20-GY8

Unavailable

8

EMBLEM, LH | DR-Z125K6 FOR YU1

68172-08G20-CLM

Unavailable

8

EMBLEM, LH | DR-Z125K5/K6 FOR HU8

68172-08G20-HU8

Unavailable

9

EMBLEM, RH | DR-Z125LK4

68171-08G10-NT3

Unavailable

9

EMBLEM, RH | DR-Z125LK5 FOR YU1

68171-08G30-GY8

Unavailable

9

EMBLEM, RH | DR-Z125LK6 FOR YU1

68171-08G30-CLM

Unavailable

9

EMBLEM, RH | DR-Z125LK5/LK6 FOR HU8

68171-08G30-HU8

Unavailable

10

EMBLEM, LH | DR-Z125LK4

68172-08G10-NT3

Unavailable

10

EMBLEM, LH | DR-Z125LK5 FOR YU1

68172-08G30-GY8

Unavailable

10

EMBLEM, LH | DR-Z125LK6 FOR YU1

68172-08G30-CLM

Unavailable

10

EMBLEM, LH | DR-Z125LK5/LK6 FOR HU8

68172-08G30-HU8

Unavailable

11

EMBLEM, "SUZUKI" | MODEL K4/K5 FOR YU1

68721-05D00-GY8

$12.42

11

EMBLEM, "SUZUKI" | MODEL K6 FOR YU1

68721-05D00-CLM

Unavailable

11

EMBLEM, "SUZUKI" | MODEL K5/K6 FOR HU8

68721-05D00-HU8

Unavailable
