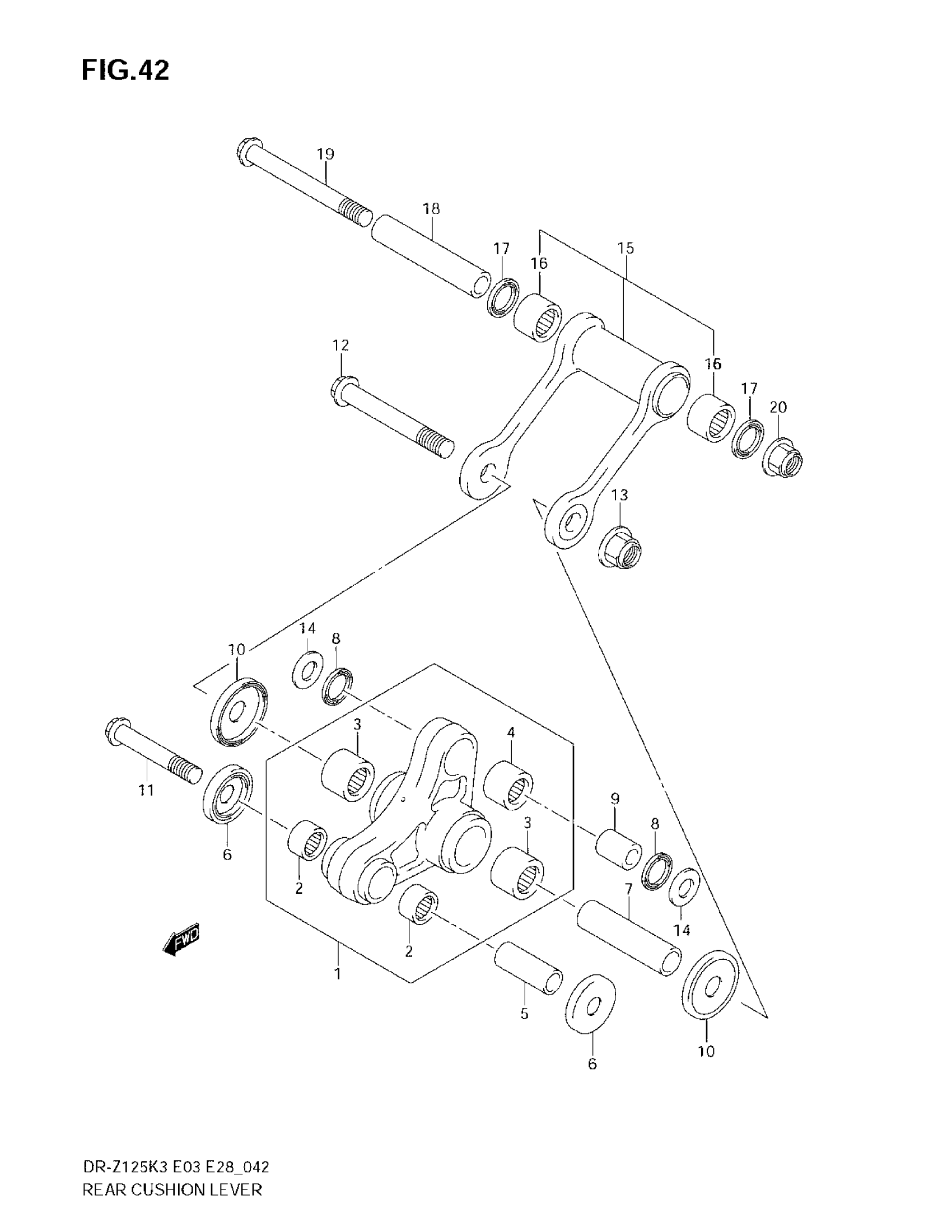

Suzuki DR-Z125 (2007) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, RR CUSHION | Includes Item(s) 2 - 4

62600-08820

Unavailable

2

BEARING, FRONT (14X20X12)

09263-14027

$12.21

3

BEARING, CENTER (17X24X20)

09263-17027

$17.83

4

BEARING, REAR (16X22X12)

09263-16033

$18.28

5

SPACER, RR CUSHION LEVER FR

62317-02B40

$20.33

6

OIL SEAL This part replaces 62162-03B00.

62162-03B01

$10.58

7

SPACER, CENTER

09180-12121

$21.77

8

OIL SEAL (16X22X2.5)

09284-16005

$6.27

9

SPACER, RR CUSHION LEVER RR

62684-36E10

$17.40

10

SEAL, DUST This part replaces 62162-28E00.

62162-28E01

$10.07

11

BOLT, FRONT (10X64)

62658-02B40

$10.35

12

BOLT, RR CUSHION LEVER CTR

62621-08G00

Unavailable

13

NUT This part replaces 08319-31128.

08319-3112A

$3.38

14

WASHER, THRUST LVR CUSHION RR

62685-37E00

$4.17

15

ROD SET, RR CUSHION | Includes Item(s) 16

62600-08830

Unavailable

16

BEARING (17X24X20)

09263-17027

$17.83

17

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.38

18

SPACER, ROD

62646-08G00

$41.50

19

BOLT, RR CUSHION ROD

62648-08G00

$18.93

20

NUT This part replaces 08319-31128.

08319-3112A

$3.38
