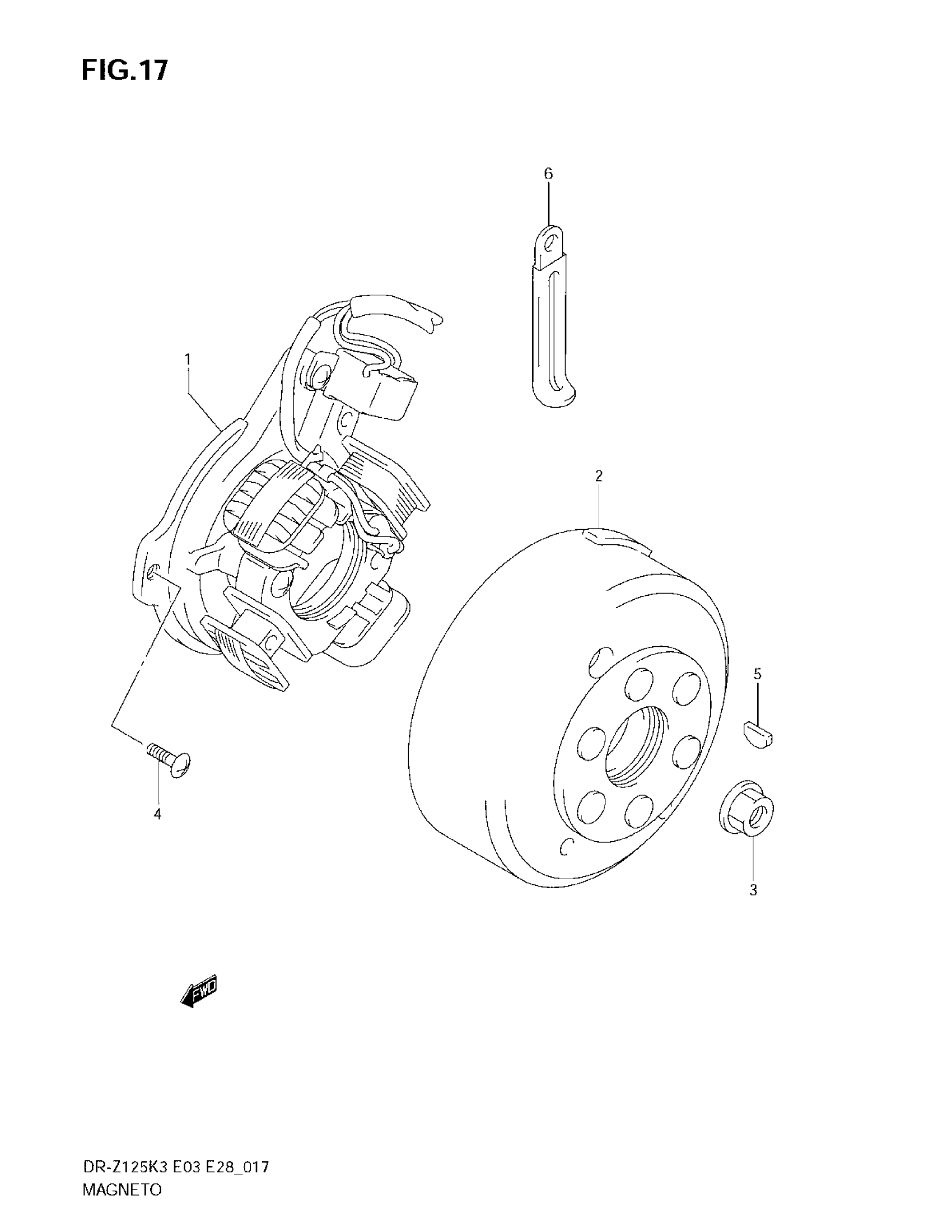

Suzuki DR-Z125 (2007) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-08G00

$303.43

2

ROTOR ASSY

32102-08G00

Unavailable

3

NUT

09159-10110

$3.15

4

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

5

KEY

08341-31039

$1.89

6

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
