2007 Suzuki DR-Z125 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2007 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

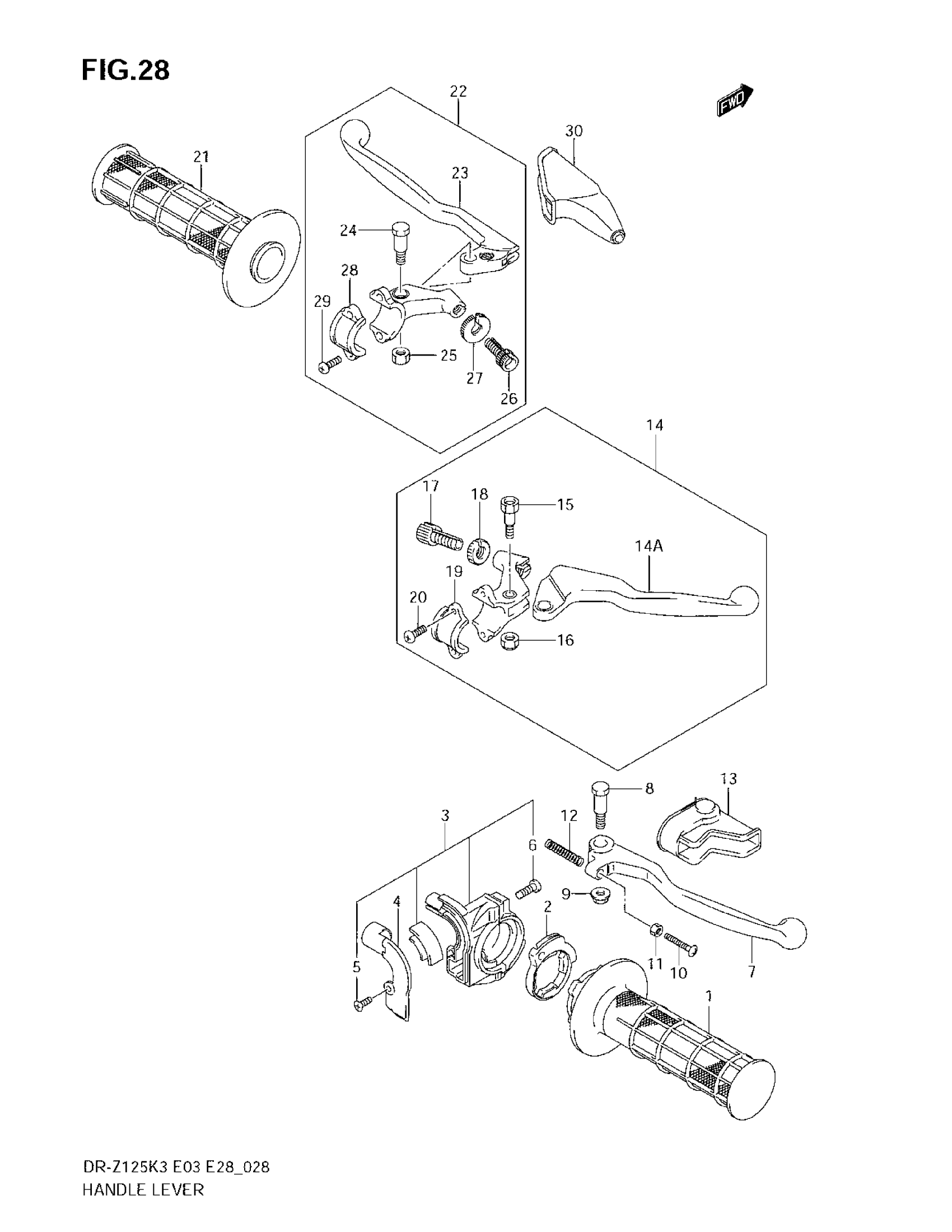

2007 Suzuki DR-Z125 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-27C00

1
Out of stock

2

ROTOR, THROTTLE

57114-20410

1
Out of stock

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 6 This part replaces 57100-03D00.

57100-03D12

1
Out of stock

4

COVER

57129-20411

1
Out of stock

5

SCREW This part replaces 02122-04103.

02122-0410A

1
Out of stock

6

SCREW

02112-05167

2
Out of stock

7

LEVER, BRAKE | DR-Z125LK3/LK4/LK5/LK6/LK7

57421-27C00

1
Out of stock

8

BOLT, BRAKE LEVER | DR-Z125LK3/LK4/LK5/LK6/LK7

57431-14500

1
Out of stock

9

NUT | DR-Z125LK3/LK4/LK5/LK6/LK7 This part replaces 08316-10063.

08316-1006B

1
Out of stock

10

BOLT, ADJUST | DR-Z125LK3/LK4/LK5/LK6/LK7

57431-14511

1
Out of stock

11

NUT | DR-Z125LK3/LK4/LK5/LK6/LK7 This part replaces 08310-00053.

08310-0005A

1
Out of stock

12

SPRING, RETURN | DR-Z125LK3/LK4/LK5/LK6/LK7

57318-14502

1
Out of stock

13

COVER, BRAKE LEVER | DR-Z125LK3/LK4/LK5/LK6/LK7

57341-14501

1
Out of stock

14

LEVER ASSY, BRAKE | DR-Z125K3/K4/K5/K6/K7; Includes Item(s) 14A - 20

57300-14300

1
Out of stock

14A

LEVER, BRAKE | DR-Z125K3/K4/K5/K6/K7

57420-14300

1
Out of stock

15

BOLT | DR-Z125K3/K4/K5/K6/K7

57431-14301

1
Out of stock

16

.NUT | DR-Z125K3/K4/K5/K6/K7 This part replaces 08319-21068.

08319-2106A

1
Out of stock

17

ADJUSTER, CABLE | DR-Z125K3/K4/K5/K6/K7

57441-14200

1
Out of stock

18

NUT | DR-Z125K3/K4/K5/K6/K7

57442-14200

1
Out of stock

19

BRACKET, HOLDER | DR-Z125K3/K4/K5/K6/K7

57512-14300

1
Out of stock

20

SCREW | DR-Z125K3/K4/K5/K6/K7

02112-05167

2
Out of stock

21

GRIP LH

57211-27C00

1
Out of stock

22

LEVER ASSY, CLUTCH | Includes Item(s) 23 - 29

57500-14300

1
Out of stock

23

LEVER, CLUTCH

57620-14300

1
Out of stock

24

BOLT

57431-14301

1
Out of stock

25

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

26

ADJUSTER, CABLE

57441-14210

1
Out of stock

27

NUT

57442-14200

1
Out of stock

28

BRACKET

57512-14300

1
Out of stock

29

SCREW

09125-05102

2
Out of stock

30

COVER, CLUTCH LEVER This part replaces 57341-40002.

57341-40003

1
Out of stock
