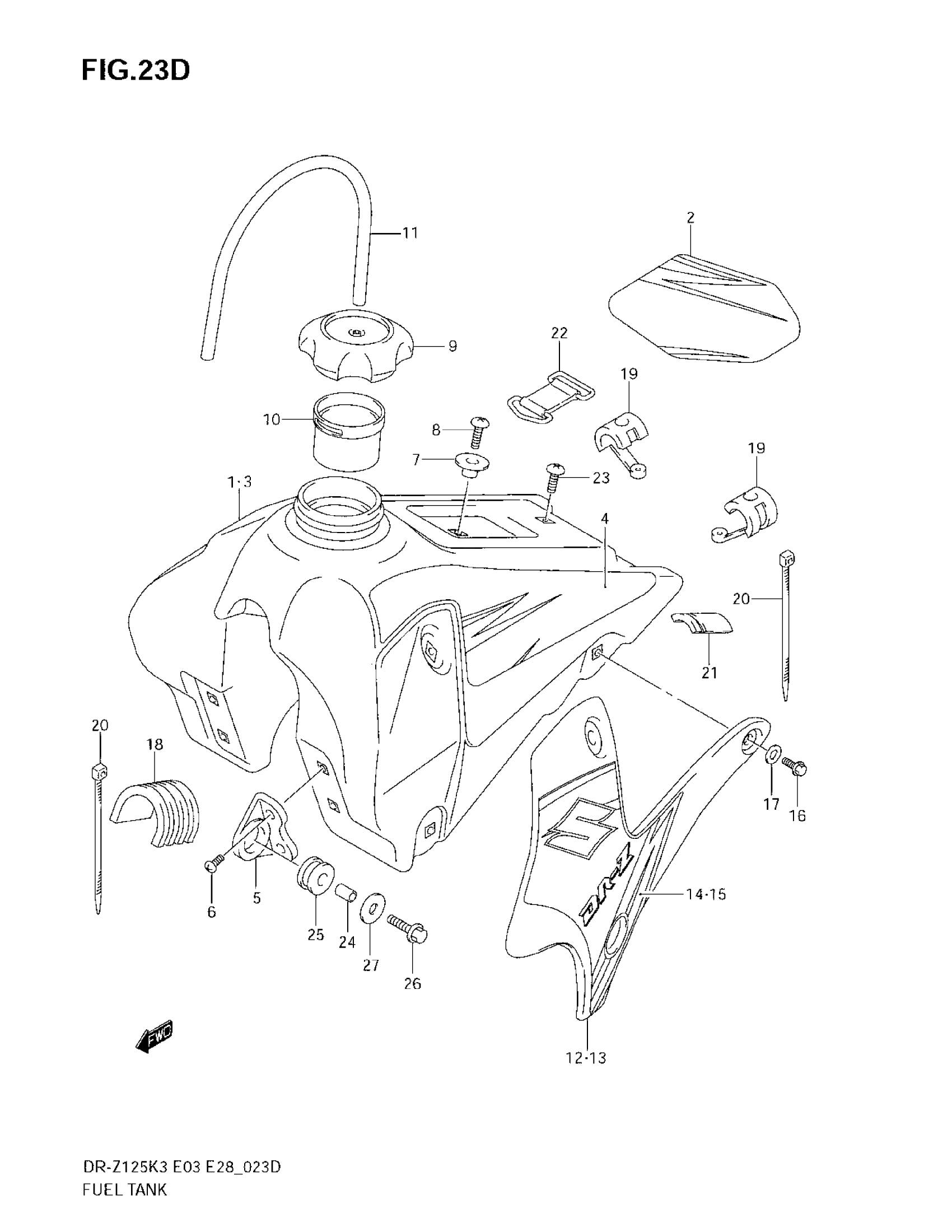

Suzuki DR-Z125 (2007) FUEL TANK (MODEL K7) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | FOR YU1; Includes Item(s) 2

44100-08G60-YU1

Unavailable

2

TAPE SET | FOR YU1

68110-08G60-DSY

Unavailable

3

TANK ASSY, FUEL (BLACK) | FOR 019; Includes Item(s) 4 - 8

44100-08G70-YBH

Unavailable

4

TAPE SET | FOR YBH

68110-08G70-DWE

Unavailable

5

BRACKET, FRONT

44131-27C01

$12.63

6

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

7

HOOK, SEAT FR

44132-27C01

$17.17

8

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

9

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

10

TUBE, FILLER INLET

44199-19A00

$6.28

11

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

12

COVER,FUEL TANK This part replaces 44171-08G00-YU1.

44171-08G10-YU1

$57.48

12

COVER,FUEL TANK This part replaces 44171-08G00-019.

44171-08G10-019

$62.93

13

COVER,FUEL TANK This part replaces 44181-08G00-YU1.

44181-08G10-YU1

Unavailable

13

COVER,FUEL TANK This part replaces 44181-08G00-019.

44181-08G10-019

$62.93

14

TAPE, FRONT COVER RH | FOR YU1

68115-08G40-DRA

Unavailable

14

TAPE, FRONT COVER RH | FOR 019

68115-08G40-DWF

Unavailable

15

TAPE, FRONT COVER LH | FOR YU1

68116-08G40-DRA

Unavailable

15

TAPE, FRONT COVER LH | FOR 019

68116-08G40-DWF

Unavailable

16

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

17

WASHER

09169-06060

$2.08

18

CUSHION, FUEL TANK

44541-13E10

$26.73

19

CUSHION, SIDE

44541-08G00

Unavailable

20

CLAMP

09407-30402

$4.11

21

CUSHION, REAR

44542-08G00

Unavailable

22

BAND, REAR

44560-44E00

$13.30

23

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

24

SPACER

09180-06268

$2.19

25

CUSHION

44511-08G00

$8.57

26

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

27

WASHER

09160-06114

$2.03
