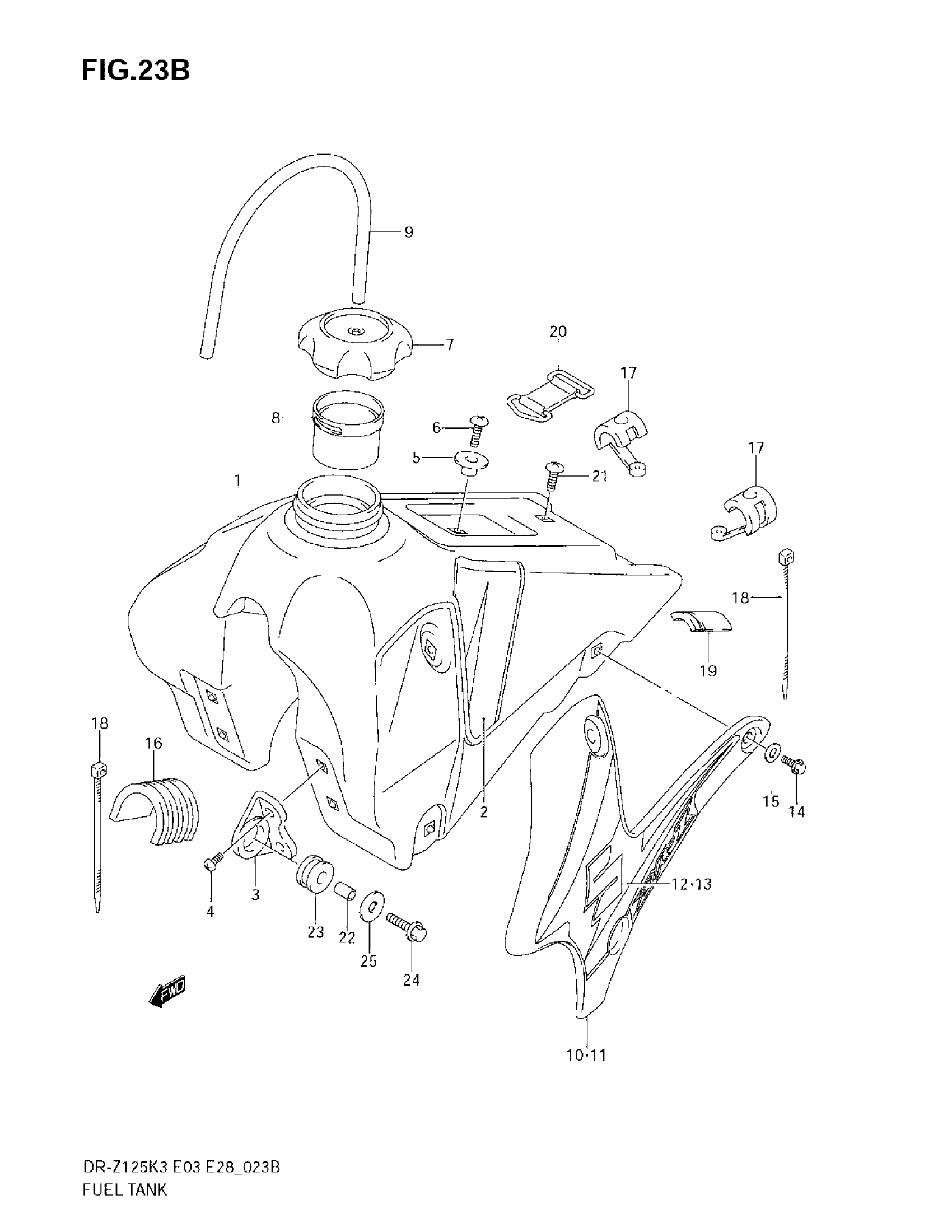

Suzuki DR-Z125 (2007) FUEL TANK (MODEL K5) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | FOR YU1

44100-08G20-YU1

Unavailable

1

TANK, FUEL (BLUE) | FOR HU8; Includes Item(s) 2 - 6

44100-08G30-YBH

Unavailable

2

TAPE SET | FOR YBH

68110-08G30-BEV

Unavailable

2

TAPE SET | FOR YU1

68110-08G20-AZR

Unavailable

3

BRACKET, FRONT

44131-27C01

$12.63

4

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

5

HOOK, SEAT FR

44132-27C01

$17.17

6

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

7

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

8

TUBE, FILLER INLET

44199-19A00

$6.28

9

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

10

COVER,FUEL TANK | FOR YU1 This part replaces 44171-08G00-YU1.

44171-08G10-YU1

$57.48

10

COVER, TANK FRONT RH (BLUE) | FOR HU8

44171-08G00-YJ4

Unavailable

11

COVER,FUEL TANK | FOR YU1 This part replaces 44181-08G00-YU1.

44181-08G10-YU1

Unavailable

11

COVER, TANK FRONT LH (BLUE) | FOR HU8

44181-08G00-YJ4

Unavailable

12

TAPE, FRONT COVER RH | FOR YU1

68115-08G20-YHB

Unavailable

12

TAPE, FRONT COVER RH | FOR HU8

68115-08G20-YHU

Unavailable

13

TAPE, FRONT COVER LH | FOR YU1

68116-08G20-YHB

Unavailable

13

TAPE, FRONT COVER LH | FOR HU8

68116-08G20-YHU

Unavailable

14

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

15

WASHER

09169-06060

$2.08

16

CUSHION, FUEL TANK

44541-13E10

$26.73

17

CUSHION, SIDE

44541-08G00

Unavailable

18

CLAMP

09407-30402

$4.11

19

CUSHION, REAR

44542-08G00

Unavailable

20

BAND, REAR

44560-44E00

$13.30

21

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

22

SPACER

09180-06268

$2.19

23

CUSHION

44511-08G00

$8.57

24

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

25

WASHER

09160-06114

$2.03
