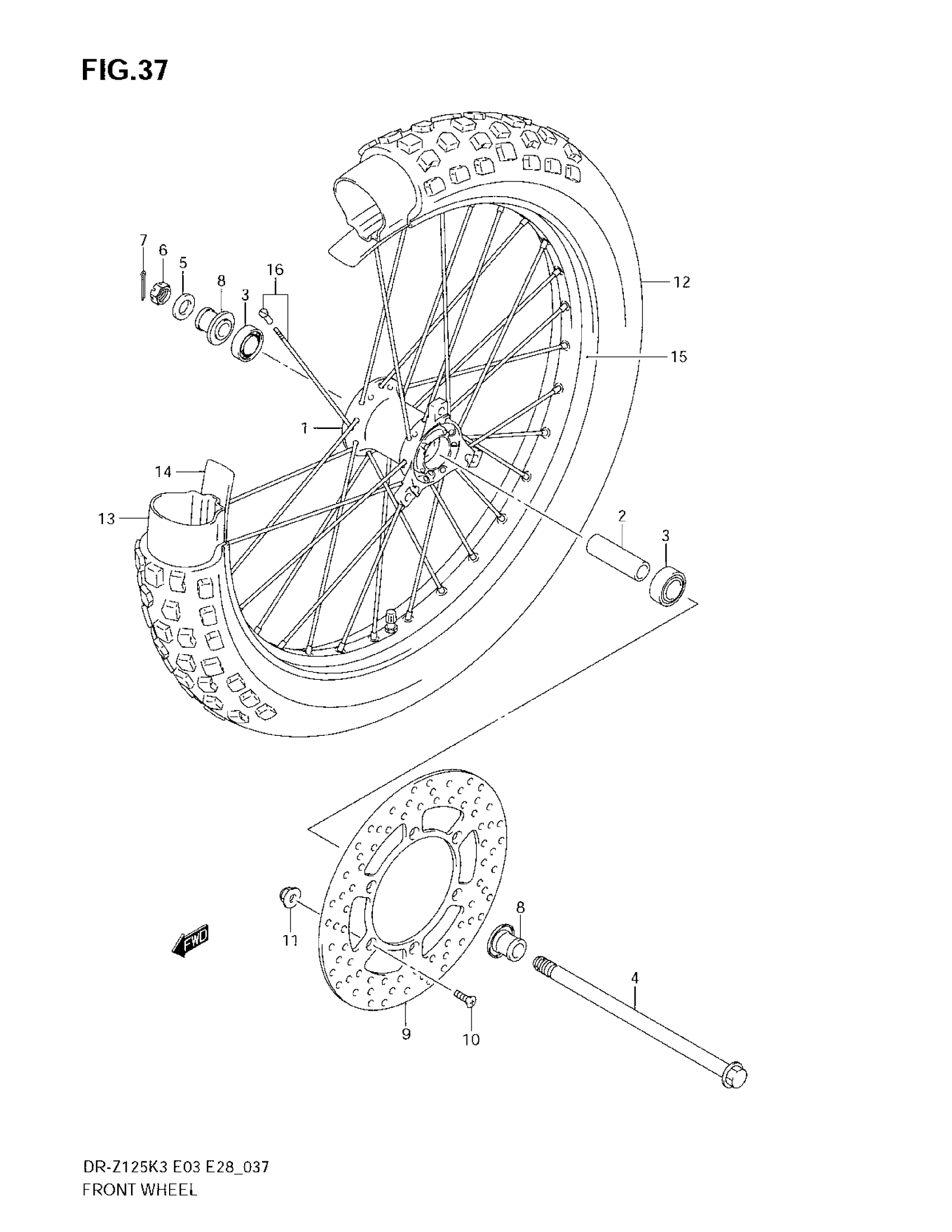

Suzuki DR-Z125 (2007) FRONT WHEEL (DR-Z125LK3/LK4/LK5/LK6/LK7) Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$316.32

2

SPACER, FR HUB BEARING

54731-02B40

$13.67

3

BEARING

08133-62017

$18.47

4

AXLE, FRONT

54711-02B40

$43.68

5

WASHER, FRONT AXLE

09160-12082

$3.29

6

NUT This part replaces 08314-40123.

08314-4012A

$2.50

7

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

8

SPACER, FR AXLE

54740-02B40

$15.68

9

DISC, FR BRAKE

59221-08G00

$305.47

10

SCREW, DISC

09126-06009

$2.70

11

NUT

08319-31067

$2.03

12

TIRE, FRONT, 70/100-19 42M IRC

55110-08G10

Unavailable

13

TUBE ASSY, WHEEL INNER This part replaces 55200-08G10.

55200-08G11

$24.97

14

PROTECTOR, WHEEL INNER TUBE

55261-08G10

Unavailable

15

RIM, FRONT WHEEL (19X1.40) | DR-Z125LK3

55311-08G10

Unavailable

15

RIM, FR WHEEL (19X1.40) | DR-Z125LK4/LK5/LK6/K7

55311-08G30

$322.02

16

SPOKE SET, FRONT WHEEL | DR-Z125LK3

55320-08G10

$67.25

16

SPOKE SET, FR WHEEL | DR-Z125LK4/LK5/LK6/K7

55320-08G30

$67.73
