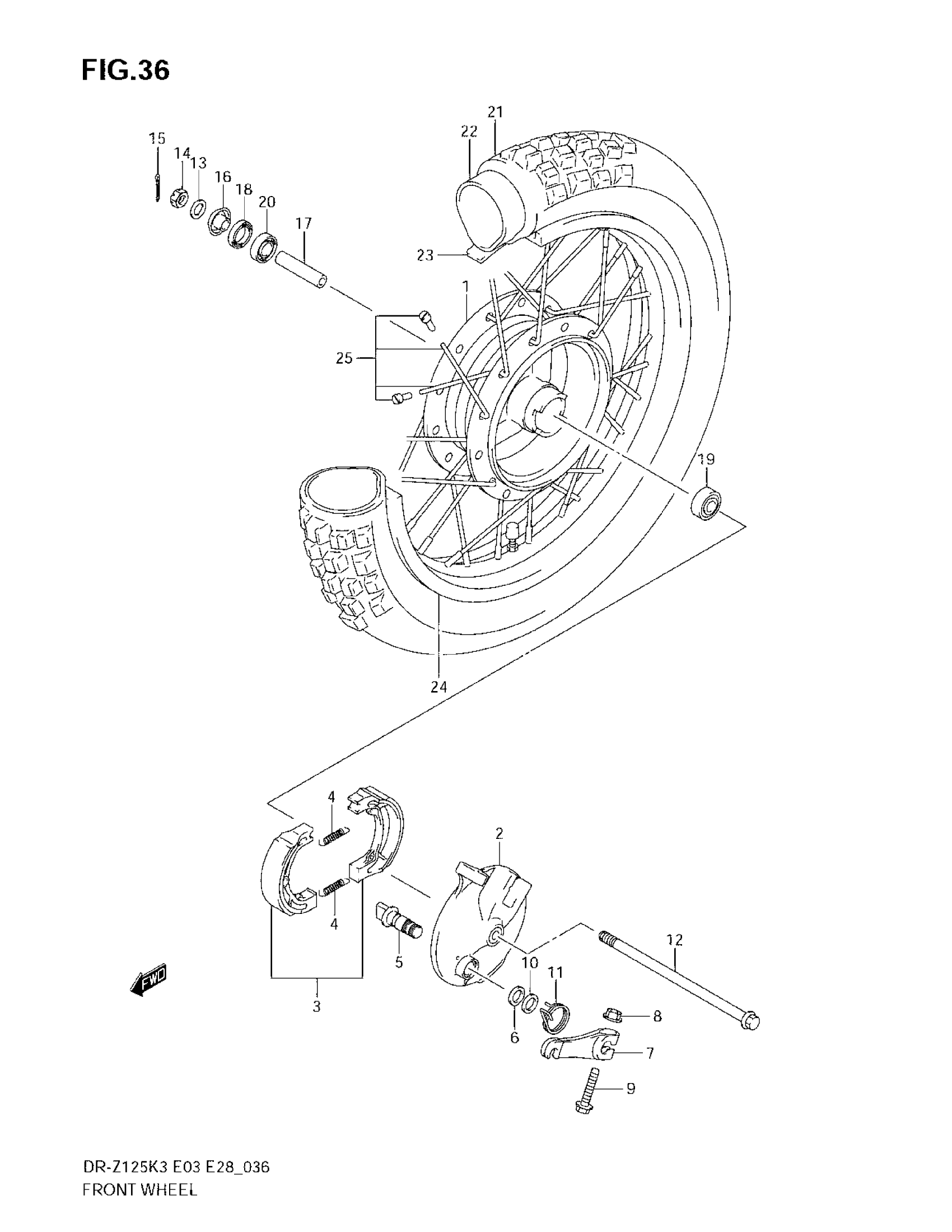

Suzuki DR-Z125 (2007) FRONT WHEEL (DR-Z125K3/K4/K5/K6/K7) Diagram

#

Description
Price

1

HUB, FR WHEEL

54110-09401

$183.50

2

PANEL, FR BRAKE ANCHOR

54210-08G00

Unavailable

3

SHOE SET, BRAKE

54401-43820

$34.98

4

.SPRING (L:37.8)

09443-07044

$3.04

5

CAM, FR BRAKE

54441-35401

Unavailable

6

DUST SEAL (ID:13.8,D:2.50)

09280-14011

$4.77

7

LEVER, FR BRAKE CAM

54451-26500

$14.76

8

NUT This part replaces 08316-10063.

08316-1006B

$2.50

9

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

10

WASHER

09160-14055

$2.39

11

SPRING, FR BK CAM LEVER RETUR

54484-08G00

$6.97

12

AXLE, FRONT

54711-43020

$36.63

13

WASHER

09160-10005

$1.87

14

NUT This part replaces 08314-40103.

08314-4010B

$2.50

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

SPACER, FR AXLE RH

54740-26101

$18.87

17

SPACER (10.2X16X51)

09180-10148

$8.18

18

OIL SEAL (15X31X5)

09284-15001

$4.73

19

BEARING This part replaces 08143-63007.

08143-6300B

$15.33

20

BEARING This part replaces 08113-62007.

08113-6200B

$11.92

21

TIRE, FR (70/100-17 40M)

55110-08G00

$100.27

22

TUBE ASSY, WHEEL INNER This part replaces 55200-08G00.

55200-08G01

$22.77

23

PROTECTOR, WHEEL INNER TUBE This part replaces 55261-08G00.

55261-08G20

$5.08

24

RIM, WHEEL (17X1.40) | DR-Z125K3

55311-08G00

Unavailable

24

RIM, FR WHEEL (17X1.40) | DR-Z125K4/K5/K6/K7

55311-08G20

$306.43

25

SPOKE SET, FRONT WHEEL | DR-Z125K3

55320-08G00

Unavailable

25

SPOKE SET, FR WHEEL | DR-Z125K4/K5/K6/K7

55320-08G20

$65.18
