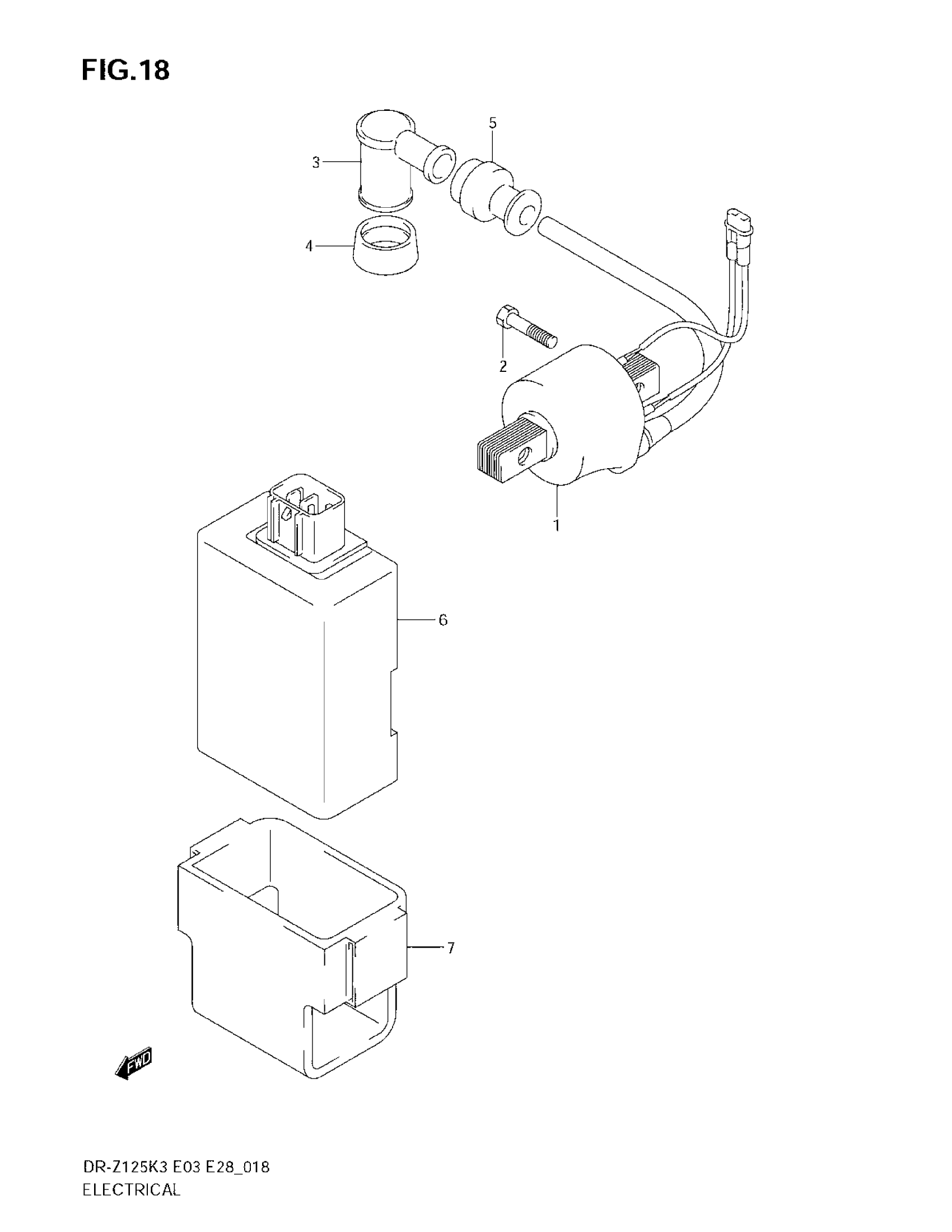

Suzuki DR-Z125 (2007) ELECTRICAL Diagram

#

Description

Price

1

COIL ASSY, IGNITION

33410-08G00

$104.07

2

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

3

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

4

SEAL, SPARK PLUG | MODEL K3 This part replaces 33541-24510.

33541-47D00

$7.83

4

SEAL, SPARK PLUG | MODEL K4/K5/K6/K7

33541-38210

$4.68

5

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

6

CDI UNIT

32900-08G00

$435.25

7

CUSHION, CDI UNIT

32980-08G00

Unavailable
