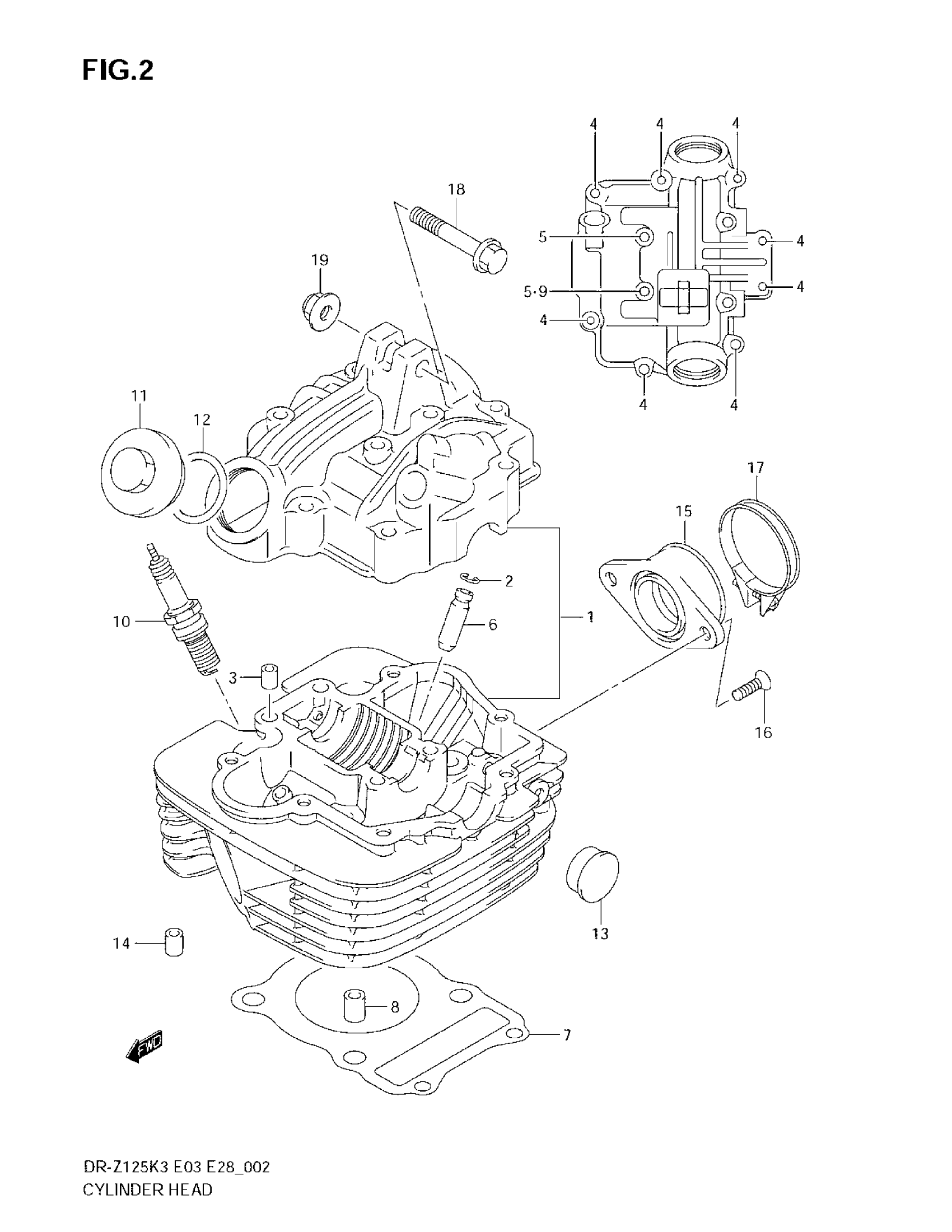

Suzuki DR-Z125 (2007) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL K3/K6

11100-08G00

$712.18

1

HEAD ASSY, CYLINDER | MODEL K4/K5; Includes Item(s) 2 - 5

11100-05330

Unavailable

2

.RING (10X85)

09381-10004

$1.50

3

PIN

09206-08001

$1.78

4

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

5

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

6

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

$32.10

7

GASKET, CYLINDER HEAD

11141-05202

$12.15

8

KNOCK PIN

04211-11169

$1.78

9

GASKET

09168-06023

$2.35

10

SPARK PLUG (X24ESR-U)

09482-00223

$5.18

10

SPARK PLUG (DR8EA)

09482-00399

$3.32

11

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$12.20

12

.O RING (D:3,ID:29.5)

09280-30001

$1.72

13

PLUG

09241-22002

$5.24

14

PAD, RUBBER

11151-45000

$3.84

15

PIPE ASSY, INTAKE This part replaces 13101-08G00.

13101-08G01

$21.43

16

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

17

CLAMP

09402-46208

$4.64

18

BOLT (8X50)

09103-08081

$3.72

19

NUT | MODEL K3/K4/K5/K6 This part replaces 08319-31088.

08319-3108A

$2.32

19

NUT | MODEL K7

08319-3108A

$2.32
