2007 Suzuki DR-Z125 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2007 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

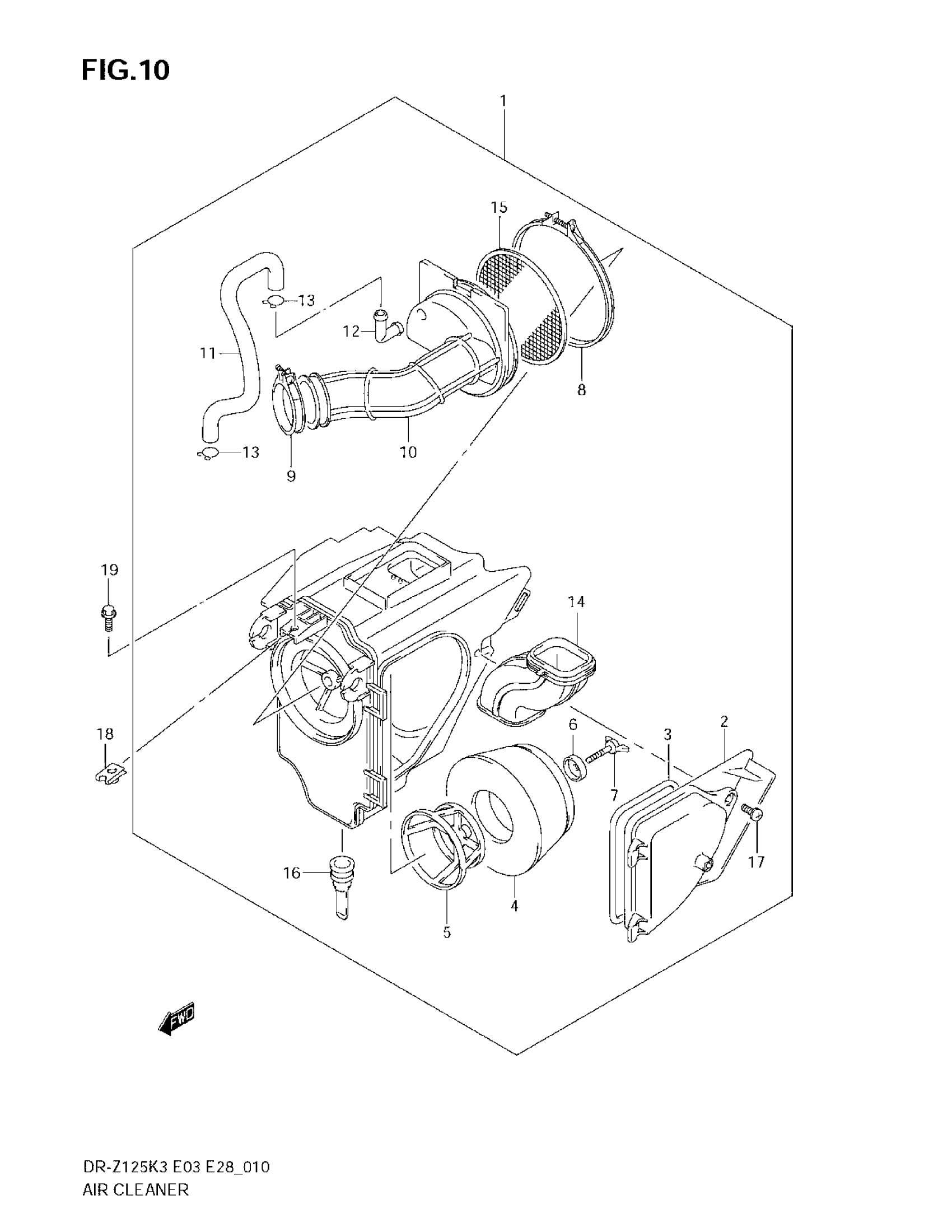

2007 Suzuki DR-Z125 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

.CAP, AIR CLEANER

13740-08G01

1

$24.24

In stock

3

GASKET

13746-08G00

1

$5.63

In stock

4

FILTER

13780-08G00

1

$34.84

In stock

5

.HOLDER, FILTER

13791-08G00

1

$13.90

In stock

6

WASHER, FILTER

13792-13A01

1

$4.33

In stock

7

1

$8.04

In stock

8

.CLAMP, OUTLET TUBE

13826-14D01

1

$9.30

In stock

9

1

$4.50

In stock

10

1

$47.33

In stock

11

1

$16.80

In stock

12

JOINT This part replaces 13858-14D10.

13858-14D20

1
Out of stock

13

CLIP

09401-14301

2

$2.50

In stock

14

.TUBE, INLET

13891-08G00

1

$33.12

In stock

15

.TRAP, FLAME

13810-03G00

1
Out of stock

16

1

$7.48

In stock

17

1

$1.52

In stock

18

1

$3.62

In stock

19

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock
