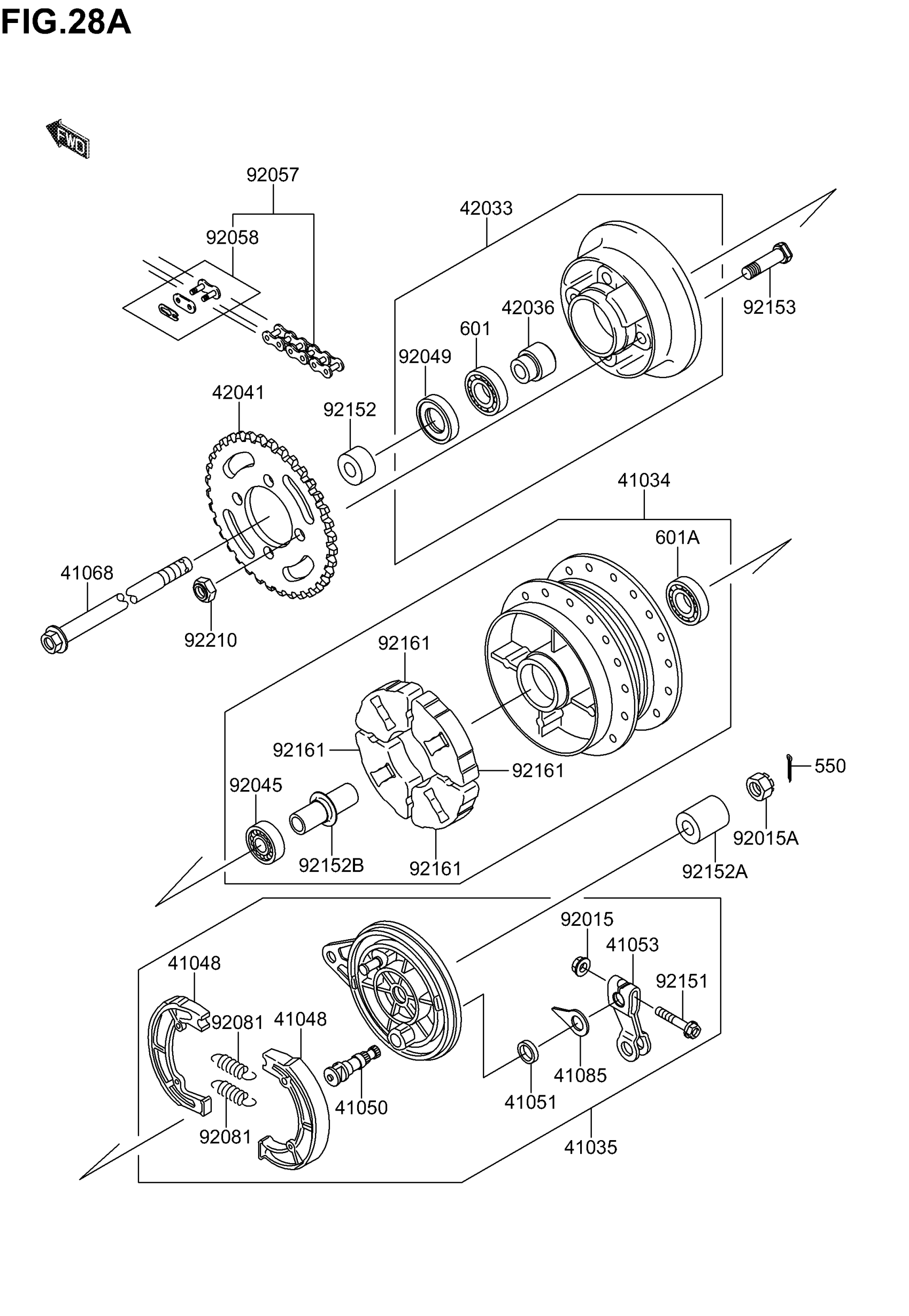

Suzuki DR-Z110 (2005) REAR HUB(DR-Z110 K5) Diagram

DRUM-ASSY,REAR BRAKE

K4103-40010

Unavailable

PANEL-ASSY-BRAKE,RR

K4103-51542

Unavailable

SHOE-BRAKE

K4104-81141

$23.13

CAM-BRAKE

K4105-01082

$12.07

SEAL,BRAKE CAM

KK410-51001

Unavailable

LEVER-BRAKE CAM

K4105-31089

$10.27

AXLE,RR

K4106-80016

$36.30

INDICATOR

K4108-51079

Unavailable

COUPLING-ASSY,RR HUB

K4203-31223

$85.52

SLEEVE,RR HUB COUPLING,L=29

K4203-61292

$9.87

SPROCKET-HUB,33 This part replaces K4204-10006.

K4204-10136

$52.55

NUT,FLANGED,6MM This part replaces K9201-51193.

K9201-51367

$4.22

NUT,CASTLE,12MM

K9201-51870

$5.23

BEARING-BALL,6201ZC3/5C

K9204-51308

Unavailable

SEAL-OIL,SC26X42X8

K9204-91490

$2.92

CHAIN,DRIVE,DID420DXX86L

K9205-70090

Unavailable

JOINT-CHAIN,DRIVE

K9205-80006

Unavailable

SPRING,BRAKE SHOE

K9208-11766

$6.35

BOLT,FLANGED,6X34

K9215-11209

$3.08

COLLAR,RR AXLE,LH,L=14.8

K9215-21405

$6.77

COLLAR,RR AXLE,RH,L=32

K9215-21406

$8.72

COLLAR,REAR BRAKE DRUM,L=58

K9215-21409

Unavailable

BOLT,10X36

K9215-31120

$7.87

DAMPER,RR HUB SHOCK

K9216-10084

$11.65

NUT,LOCK,10MM

K9221-01351

$5.00

PIN-COTTER,2.5X20

KK550-S2520

Unavailable

BEARING-BALL,#6004UC3

K601B-6004U

Unavailable

BEARING-BALL,#6301UC3

K601B-6301U

Unavailable
